Description

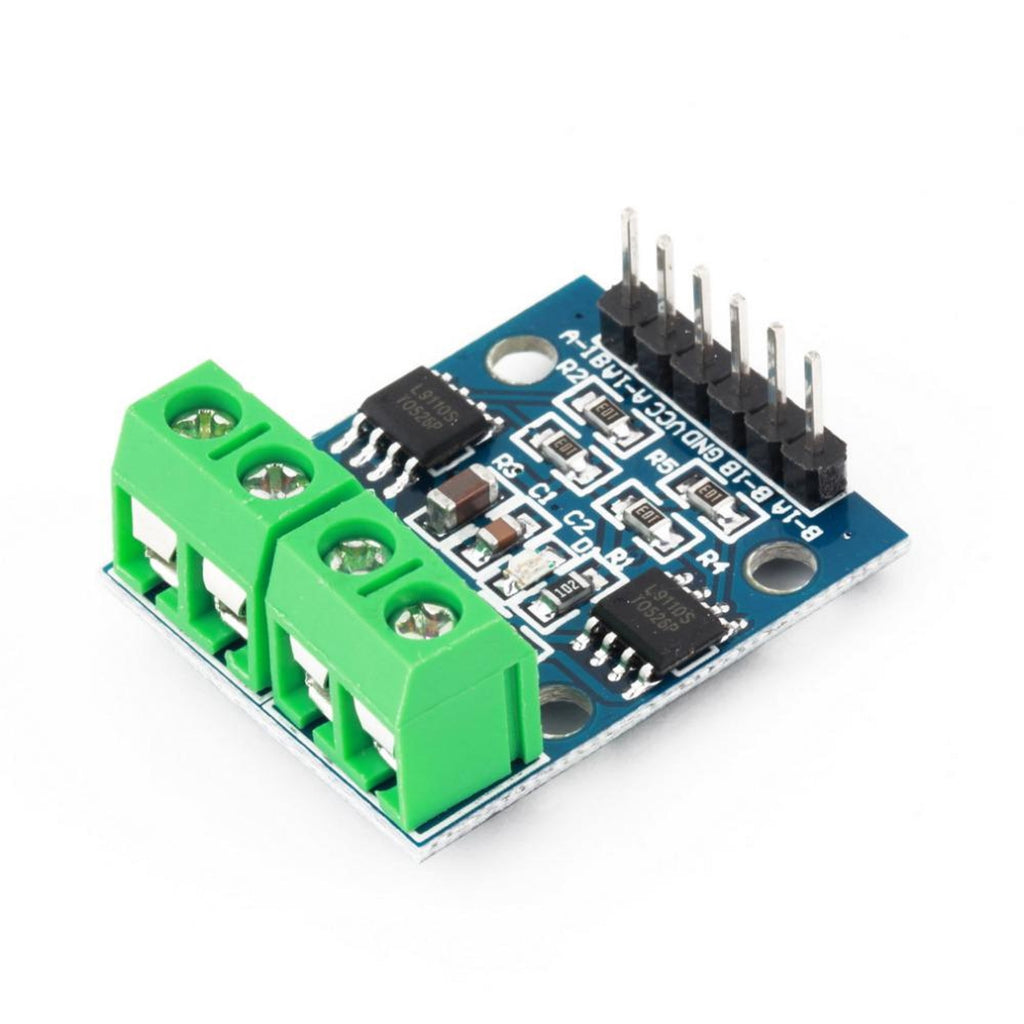

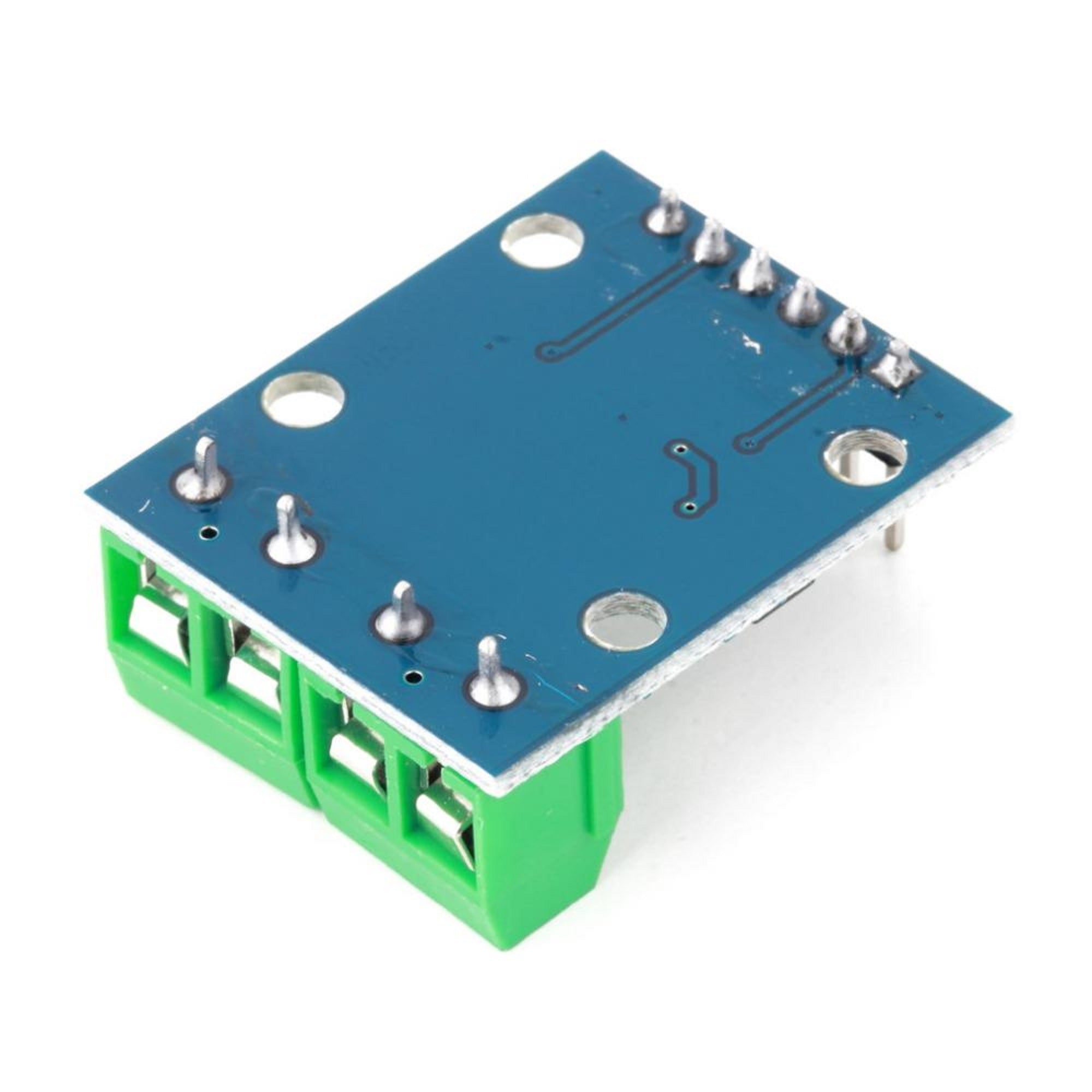

L9110S DC Stepper Motor Driver Board
Onboard two the L9110S motor control chip
The module can simultaneously drive two DC motors or a 4-wire 2-phase stepper motor
The module input voltage :2.5-12V
800mA continuous current output capability per channel
Specification:
1 x L9110S DC Stepper Motor Driver Board
Onboard two the L9110S motor control chip
The module can simultaneously drive two DC motors or a 4-wire 2-phase stepper motor
The module input voltage :2.5-12V
800mA continuous current output capability per channel
Specification:
- Low static work current
- Power supply voltage: DC2.5-12V
- Each channel has 800mA continuous current output
- Low saturation pressure drop
- TTL/CMOS output level compatible, can be connected directly to the CPU
- Output built-in clamping diode, apply to the perceptual load
- Control and drive integrate in IC
- Have pin high pressure protection function
- Working temperature: 0-80 °
- Size: 29.2 (mm) x 23 (mm)
1 x L9110S DC Stepper Motor Driver Board
