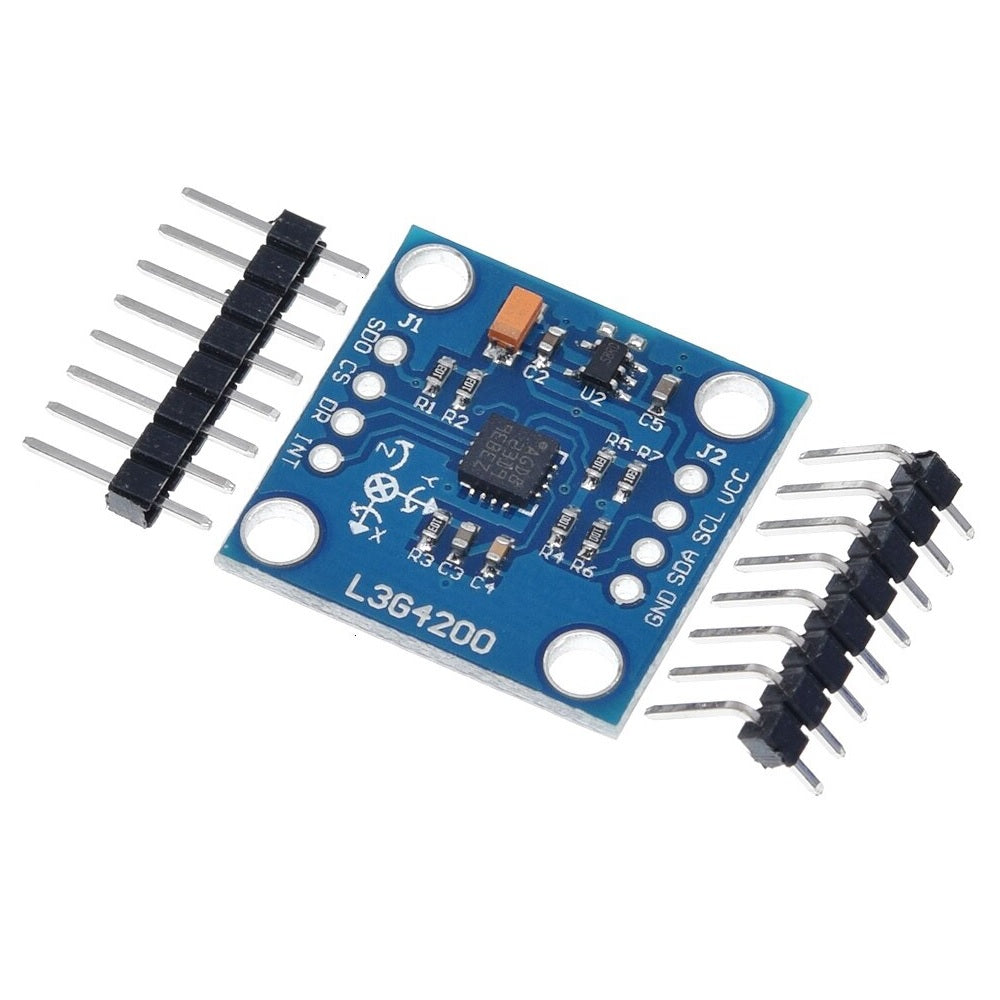

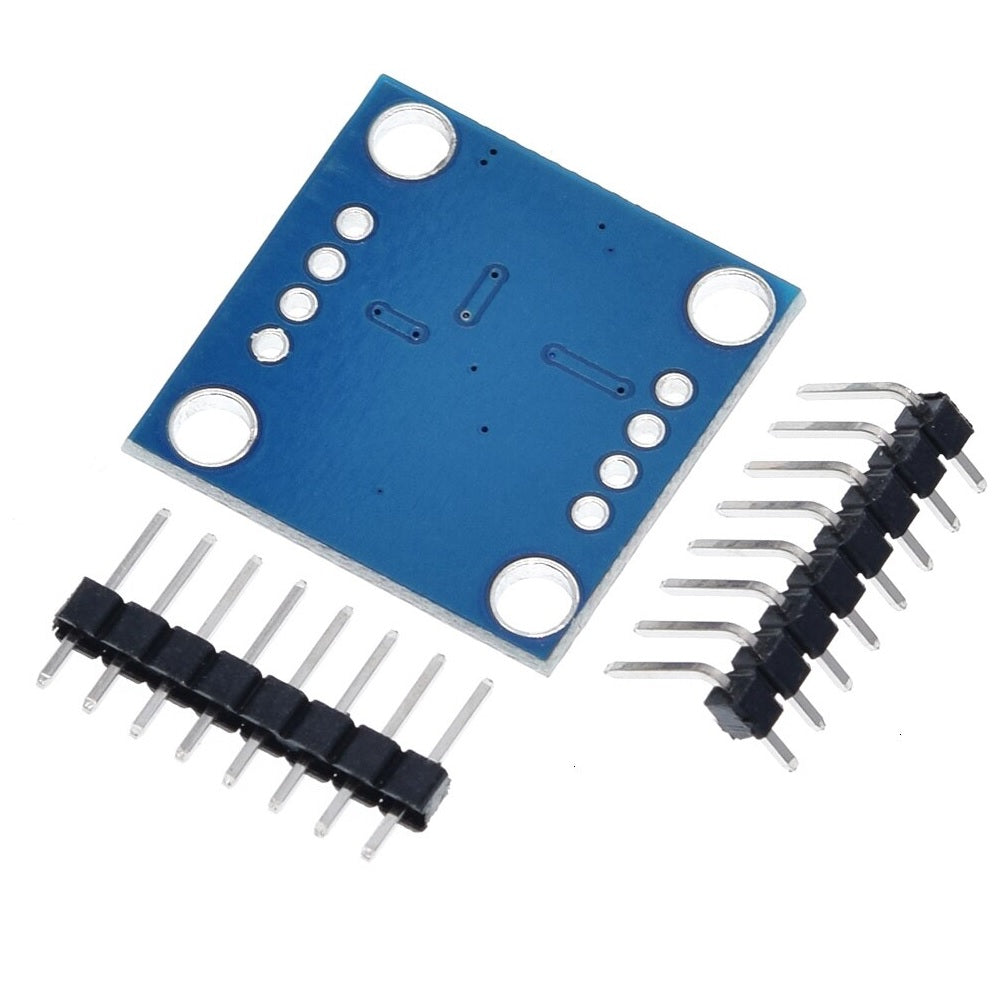

L3G4200D Three Axis Digital Gyroscope Sensor Module

SKU: VM00598

Send Inquiry

Description

The Gyroscope Module is a low power 3-Axis angular rate sensor with temperature data. The gyroscope shows the rate of change in rotation on its X,Y and Z axes. Temperature output data and raw measured angular rate is accessed from the selectable digital interface (I²C or SPI). The module is a small package design and has an easy to access SIP interface with a mounting hole for quick connectivity to your projects. The module is designed for use with a large variety of microcontrollers with different voltage requirements.

Technical Specification:

  • Power Requirements: 2.7 to 6.5 VDC
  • Communication Interface: I2 C (up to 400 kHz) or SPI (10 MHz; 4 & 3 wire)
  • Operating temperature: -40 to +185 °F (-40 to +85 °C)
  • Size: 2.16cm*2.03 cm (L*W)

Features:

  • 3-Axis angular rate sensor (yaw, pitch, and roll)
  • Supports I2 C and SPI communications
  • Three selectable scales: 250/500/2000 degrees/sec (dps)
  • High shock survivability
  • Embedded temperature sensor -40 to +185 °F (-40 to + 85 °C)
  • Embedded power-down and sleep mode
  • 16 bit-rate value data output Ÿ 8-bit temperature data output

Applications:

  • Gaming
  • 3D motion control
  • Virtual reality input devices
  • Robotics
  • UAV, IMU systems
