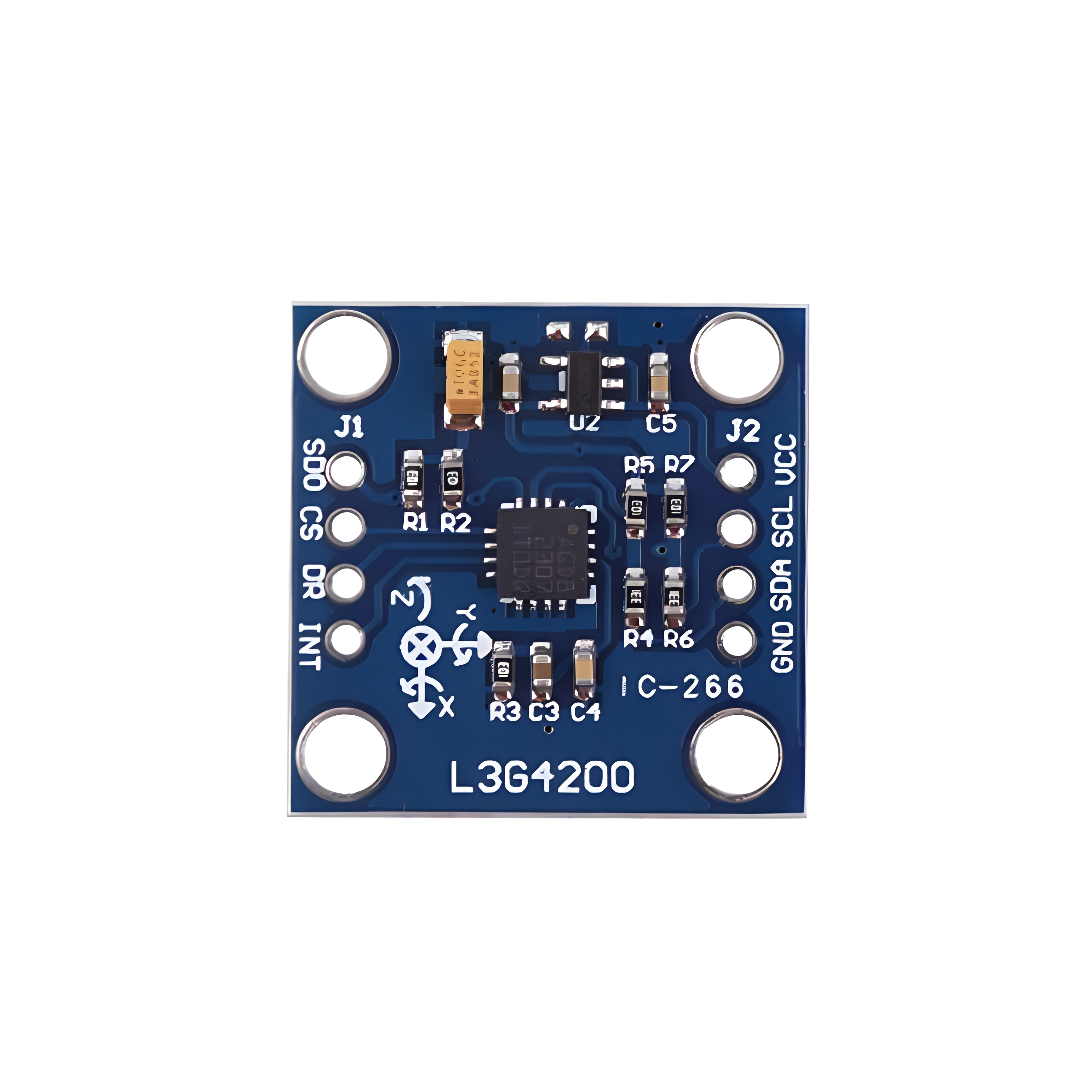

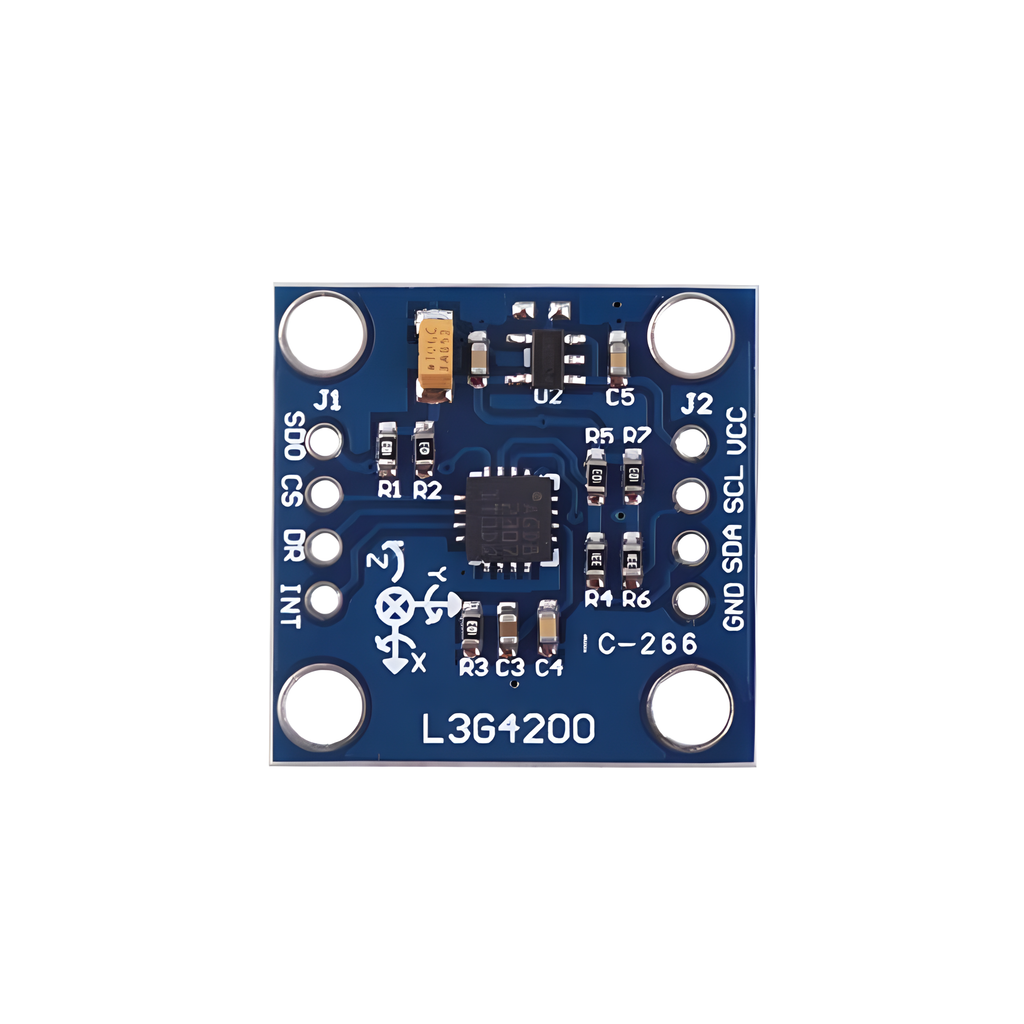

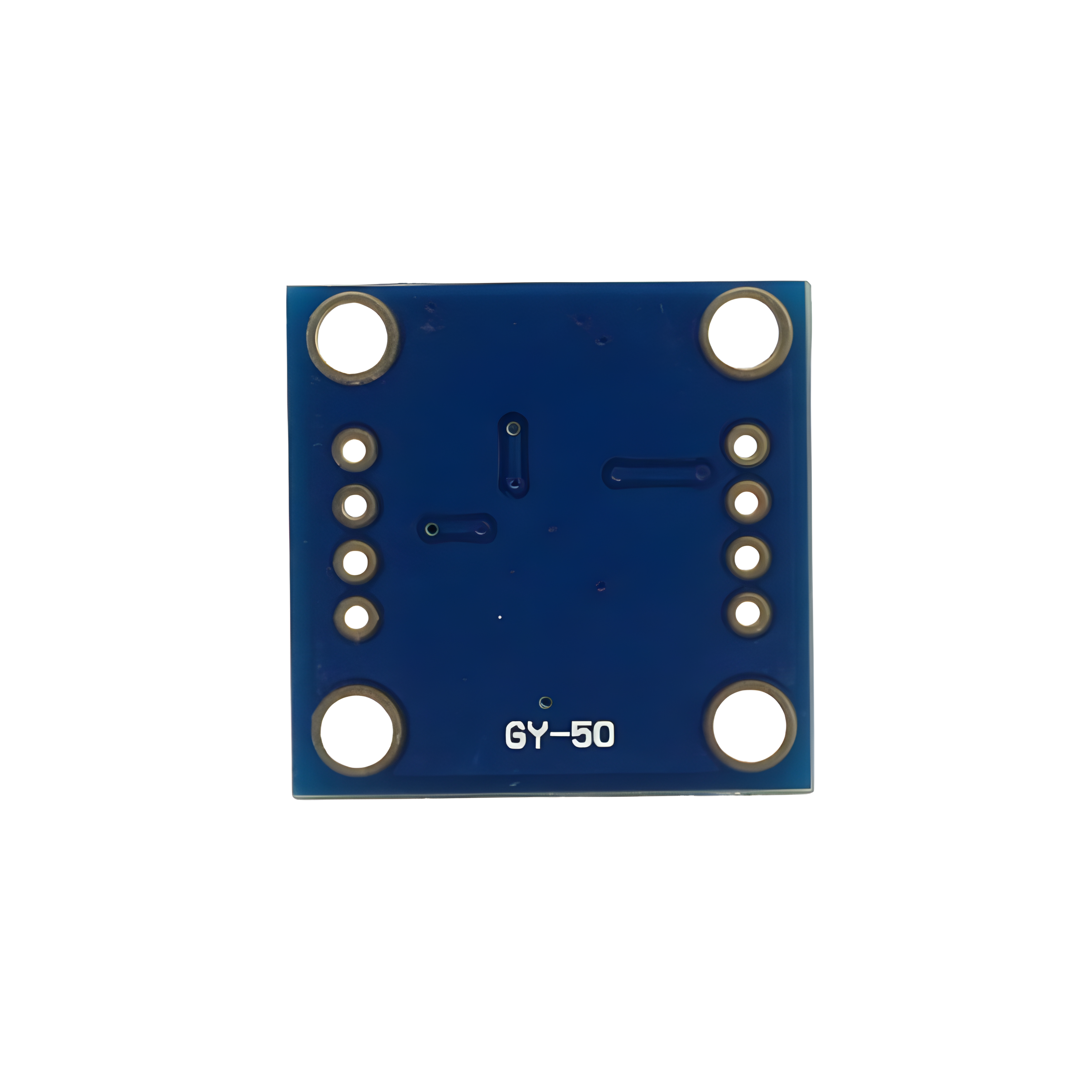

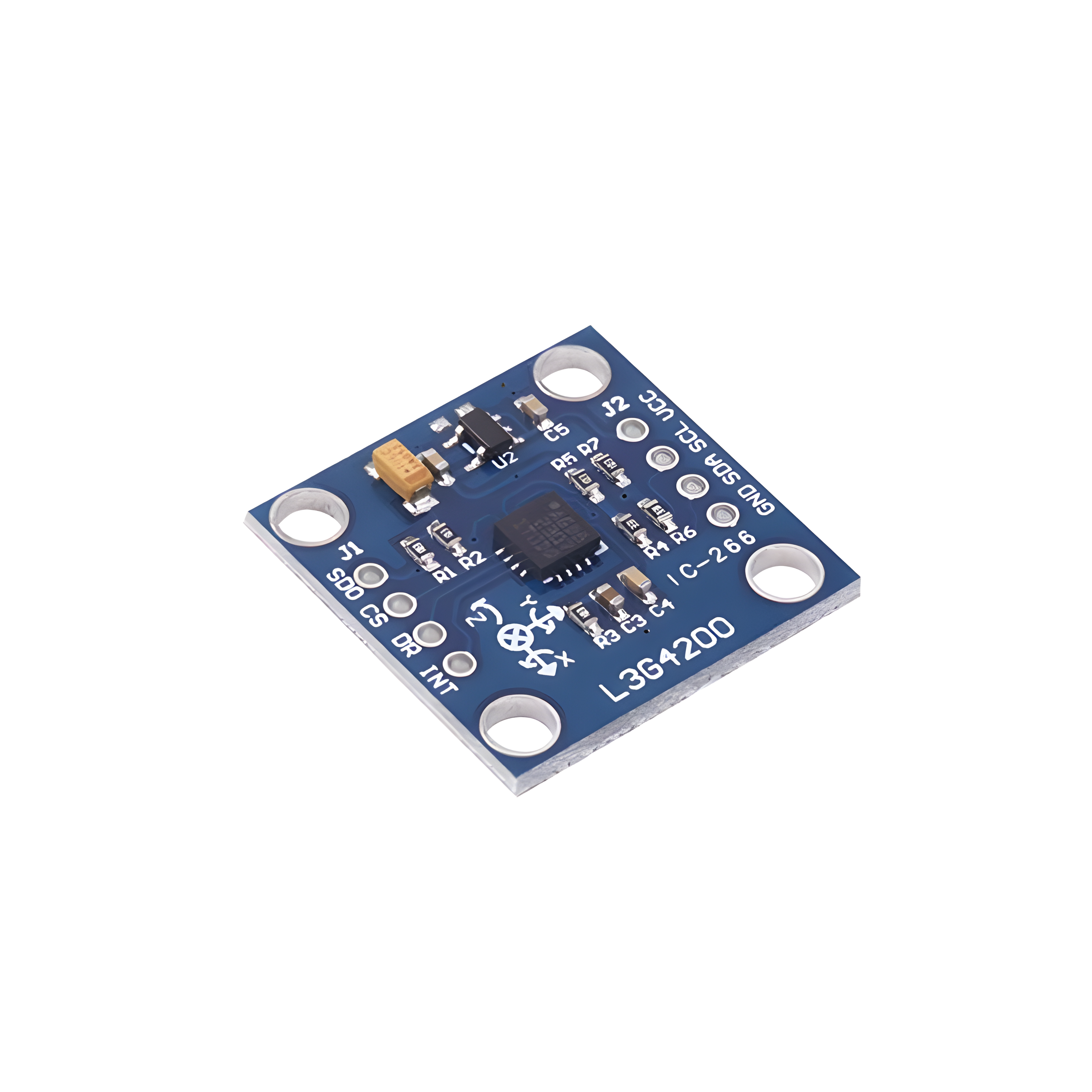

L3G4200D 3-Axis Gyroscope Module

The L3G4200D is a compact MEMS-based 3-axis digital gyroscope module designed to measure angular velocity around the X, Y, and Z axes (roll, pitch, and yaw). It is widely used in motion tracking, stabilization systems, and embedded electronics projects. The module integrates a high-performance gyroscope sensor with a breakout board, making it easy to interface with microcontrollers like Arduino, ESP32, and Raspberry Pi. It provides precise rotational data, enabling accurate orientation and motion detection in real time.

Technical Specifications:

• Sensor Type: 3-axis MEMS gyroscope

• Measurement Range: ±250°/s, ±500°/s, ±2000°/s

• Interface: I2C and SPI digital communication

• Operating Voltage: 2.4V – 3.6V (module versions may support up to ~5V with regulator)

• Current Consumption: ~6–7 mA

• Resolution: 16-bit digital output

• Temperature Sensor: Built-in (8-bit output)

• Operating Temperature: -40°C to +85°C

• Output Data: Angular velocity data for X, Y, Z axes

• Additional Pins: Interrupt (INT), Data Ready (DR)

Features:

• Measures angular velocity across three axes (X, Y, Z)

• Selectable sensitivity ranges for different motion applications

• High stability and accuracy over temperature and time

• Supports both I2C and SPI communication interfaces

• Built-in temperature sensor for compensation and monitoring

• Integrated low-pass and high-pass filters for noise reduction

• Low power consumption suitable for portable devices

• Compact breakout board for easy integration

• Embedded FIFO buffer and interrupt functionality

Applications:

• Drone and UAV stabilization systems

• Robotics and motion control systems

• Inertial Measurement Units (IMU)

• Gaming and virtual reality controllers

• Navigation systems and orientation tracking

• Industrial automation and balancing systems

• Wearable motion sensing devices
