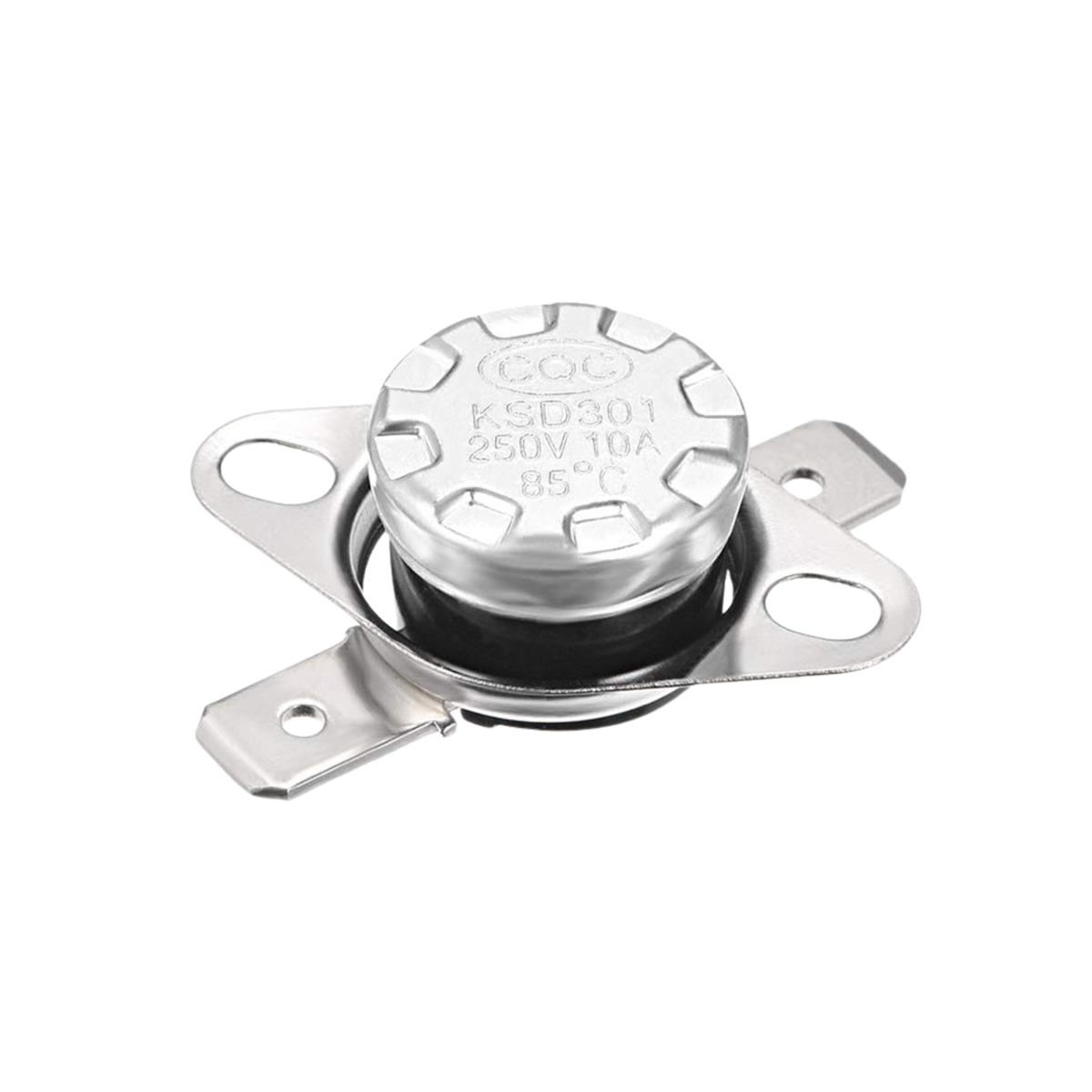

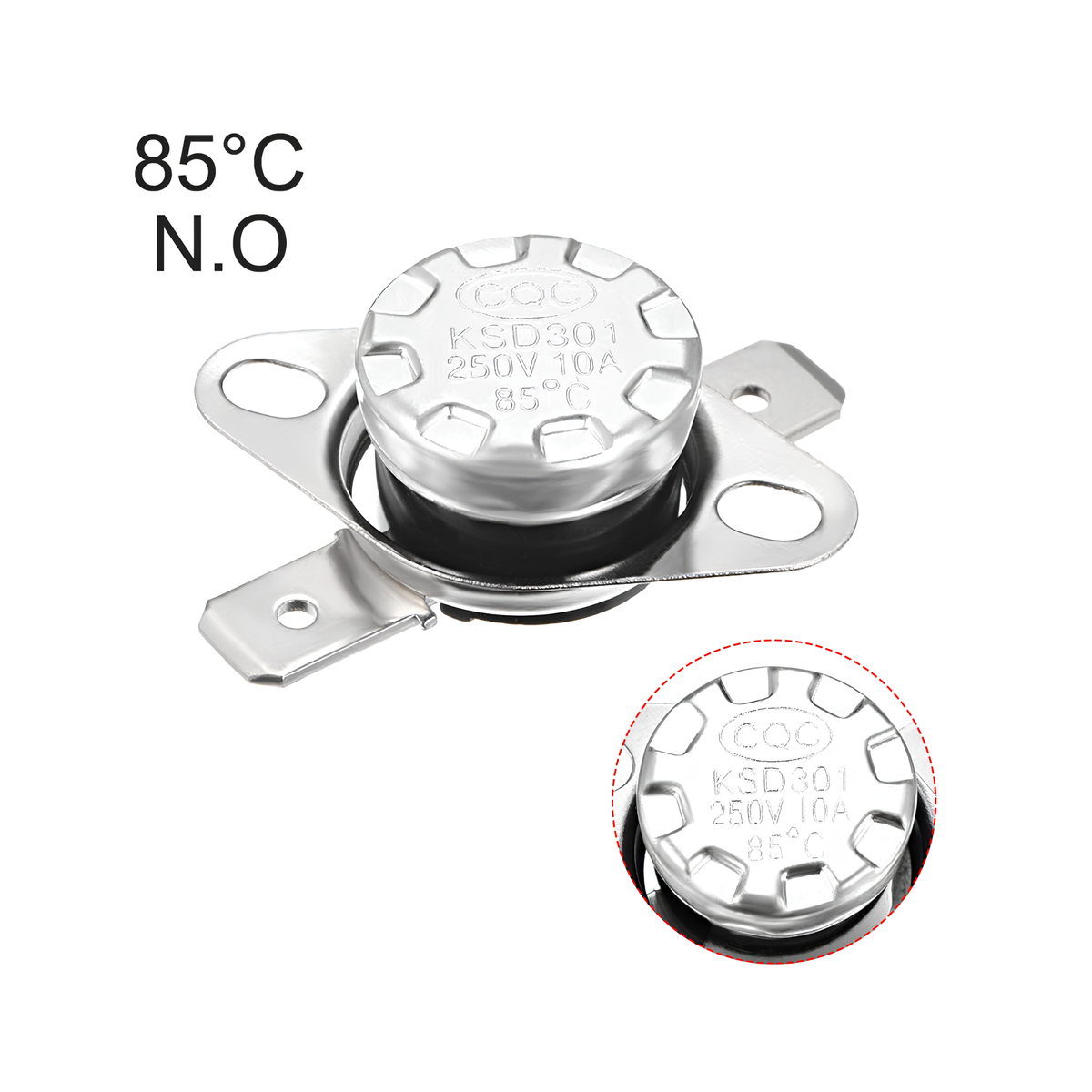

KSD301 Thermostat 85°C/185°F 10A Normally Open N.O Adjust

The 85°C KSD301 NO Thermostat is a compact bimetal temperature control switch designed for automatic temperature monitoring and protection in electrical and electronic equipment. It uses a Normally Open (N.O.) contact that closes when the preset temperature is reached. With an operating temperature of 85°C and a rated capacity of 250V AC, 10A, it is suitable for temperature control, overheating protection and switching applications in household appliances, heaters, motors and electronic equipment.

Technical Features:

• Model: KSD301
• Operating Temperature: 85°C
• Contact Type: Normally Open (N.O.)
• Rated Voltage: 250V AC
• Rated Current: 10A

Features:

• Compact and durable bimetal thermostat design
• Automatic temperature-controlled switching
• Normally Open contact configuration
• Metal mounting bracket for easy installation
• Suitable for high-current temperature control applications
• Fast response to temperature changes

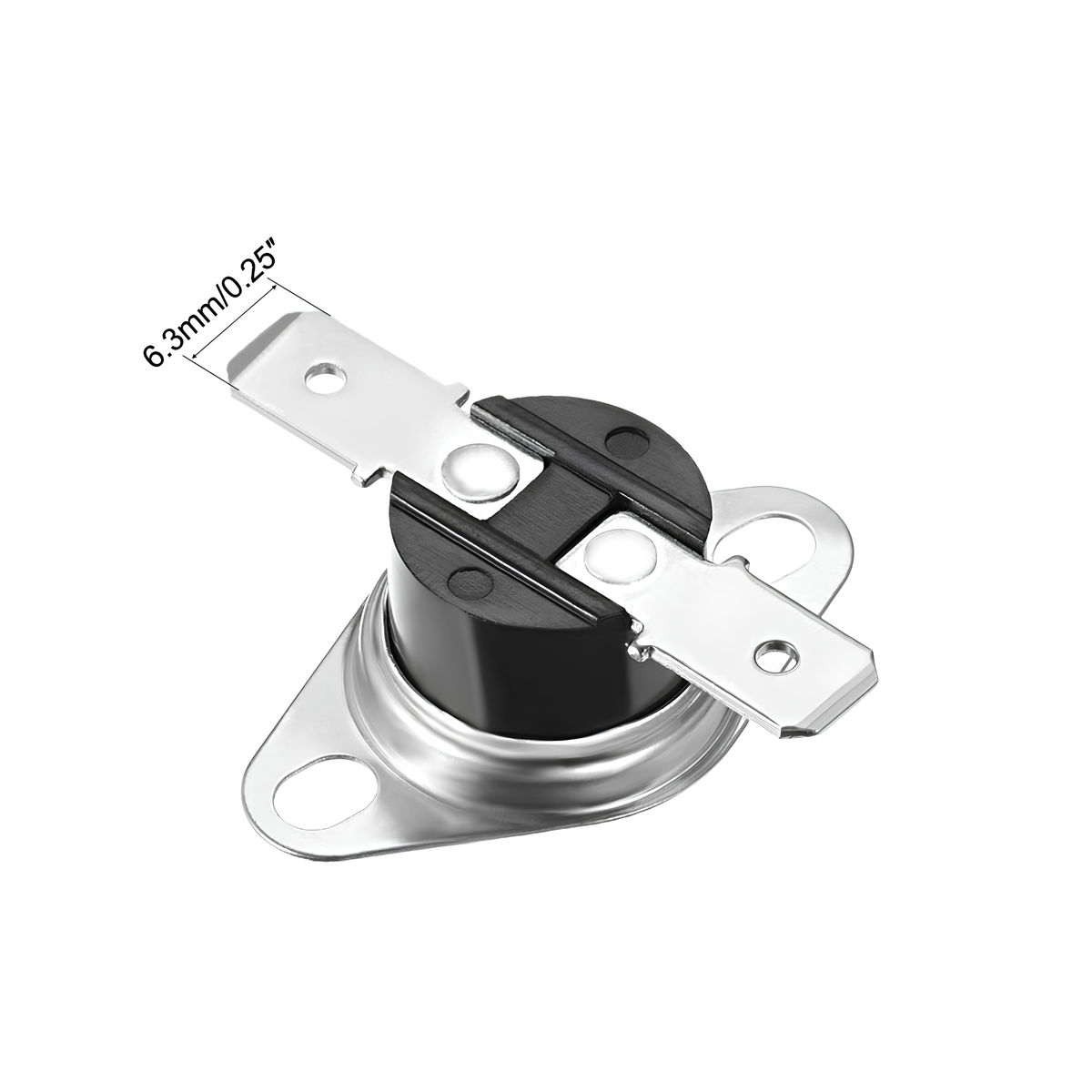

• Simple two-terminal electrical connection

Applications:

• Electric heaters and heating equipment
• Water heaters and boilers
• Motors and transformers
• Power supplies and electronic equipment
• Household electrical appliances
• Temperature protection circuits
• Overheating protection systems
• Industrial temperature control equipment
