Description

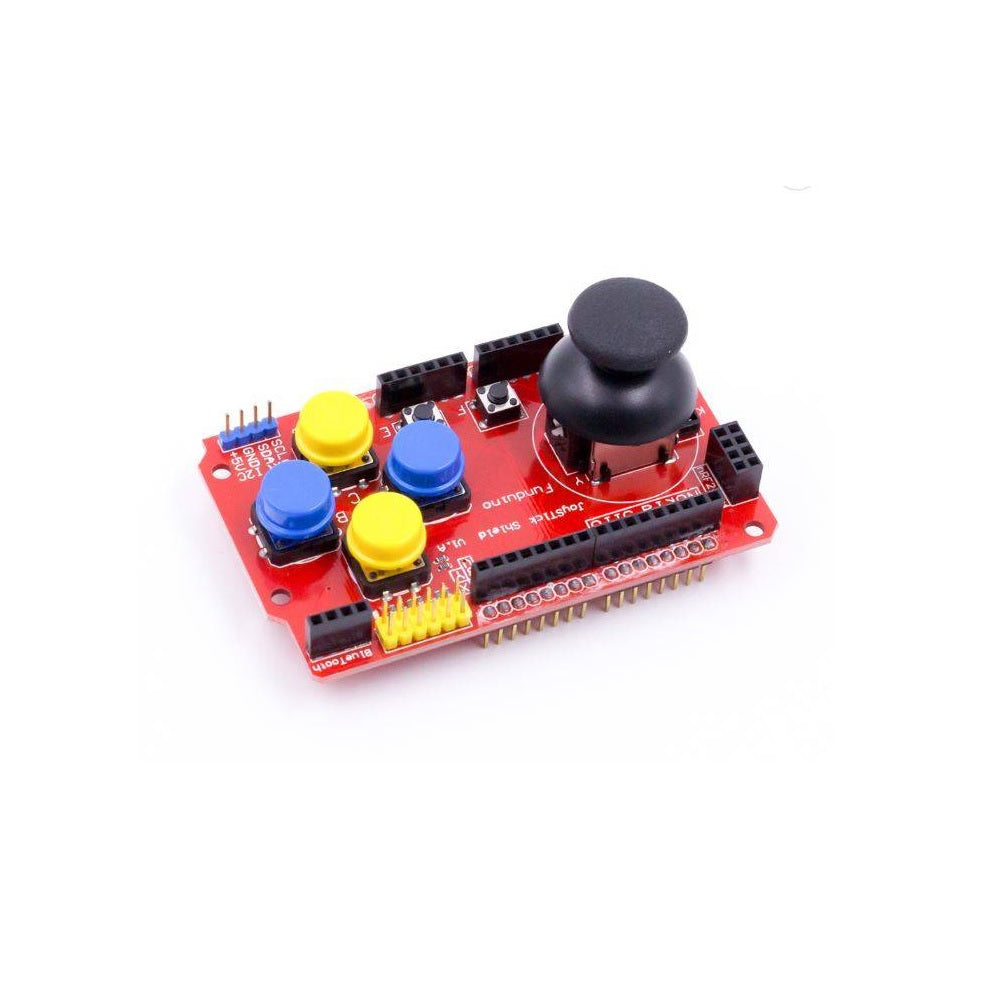

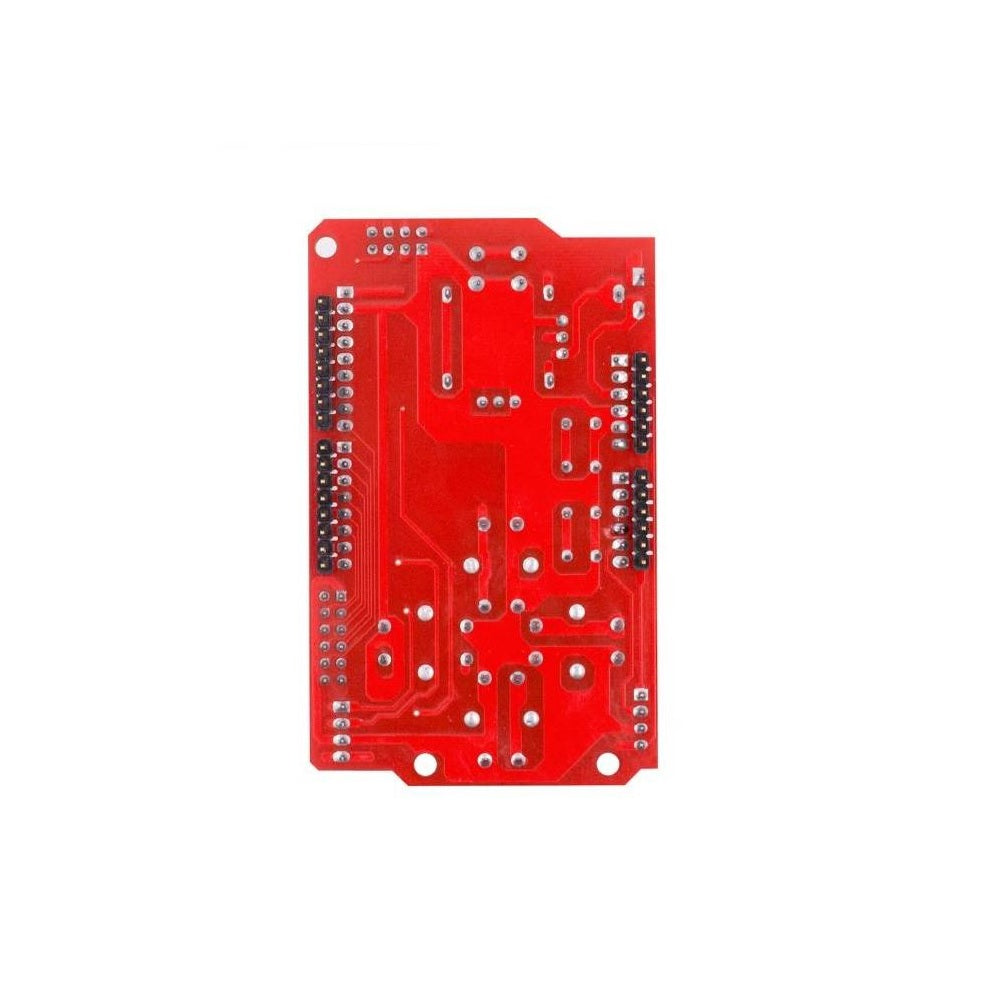

arArduino Shieldshe Joystick Shield enable your Arduino with a joystick! The shield sits on top of your Arduino and turns it into a simple controller. Five momentary push buttons (4+ joystick select button) and a two-axis thumb joystick gives your Arduino functionality on the level of old Nintendo controllers. This shield is a great piece of uer interface board, it is perfect for gaming and navigating through menu quickly. It has headers for LCDs and RF modules , to communicating and displays easily.
Technical Specification:
- Input Supply Voltage: 3.5V~5V
- NRF24L01 RF interface
- for Nokia 5110 LCD interface
- Bluetooth interface I2C interface
- for one PS2 joystick
- 2-Axis joystick
- Bluetooth / Serial interface
- I2C interface
- nRF24L01 interface
- Nokia 5110 LCD interface
- Interface connector
- Power switch to switch between 3.3 and 5V
- Size: 87mm*53mm*30mm (L*W*H)
Features:
- For all version of arduino Main board, 2009 , UNO, mega 1280, mega 2560
- Adding a Bluetooth module interface, convenient Bluetooth wireless serial communication.
- Add I2C communication interface, easy connectivity to I2C devices
- Direct plug puzzle board, NO soldering needed
- Five momentary push buttons (4+ joystick select button, just like the PlayStation 3 analog stick push button)
Applications:
- Joystick Game
- Control Systems
- Camera Pan/Tilt Control
- Game Input/Control
- Robot Control
- Widely use in DIY projects
