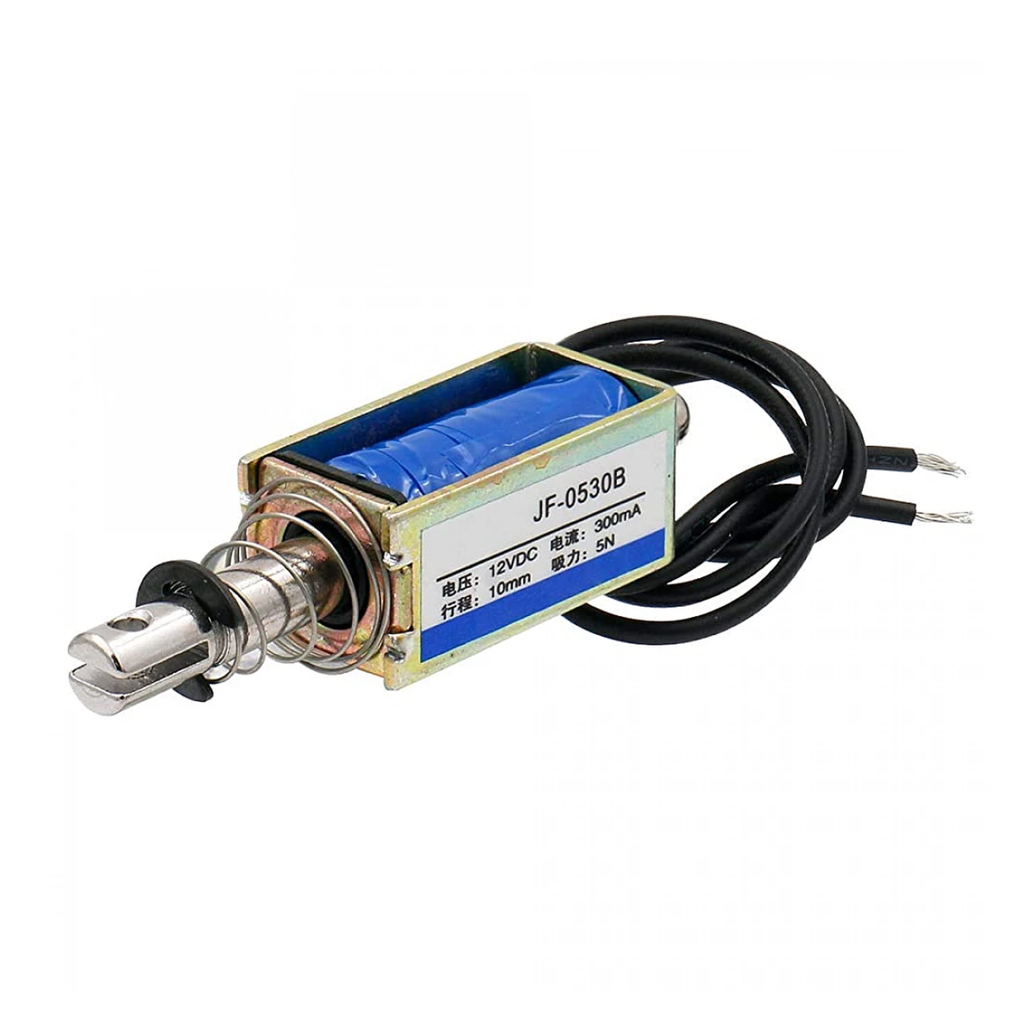

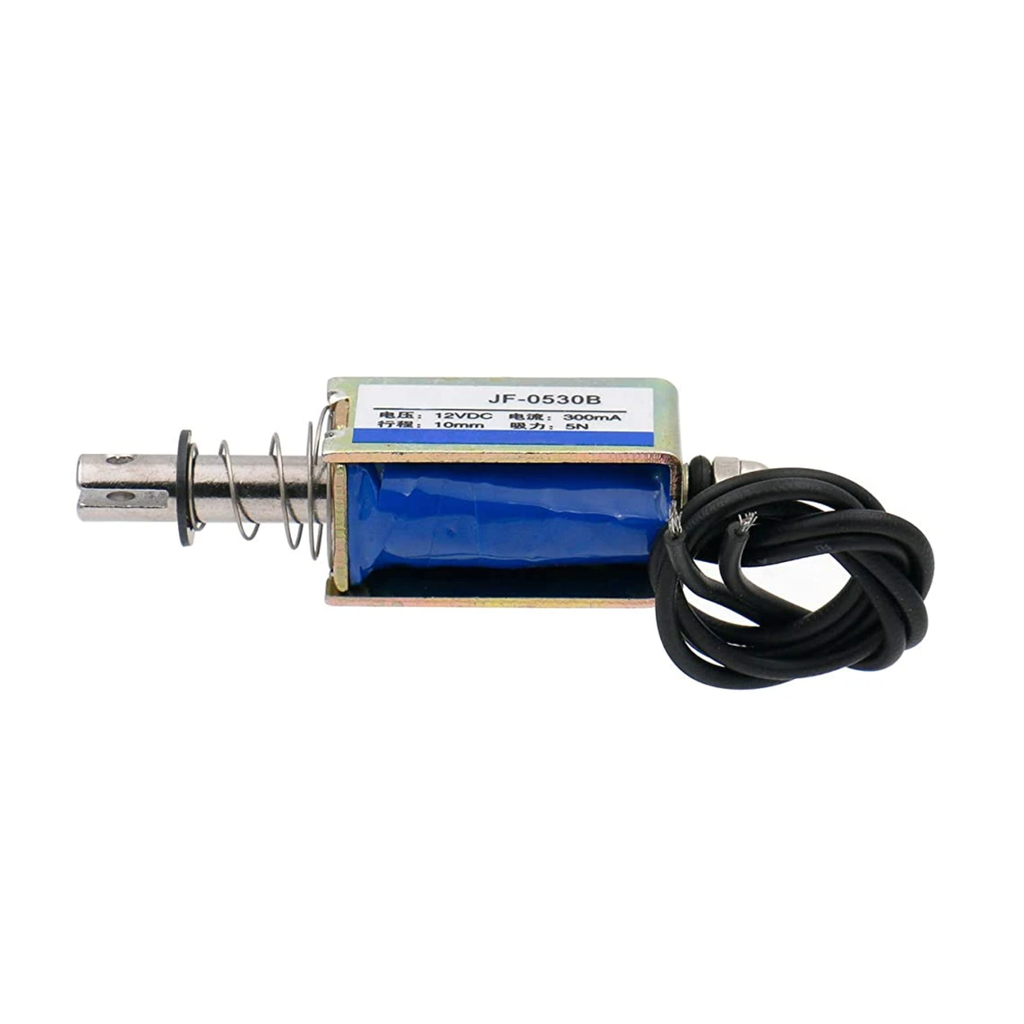

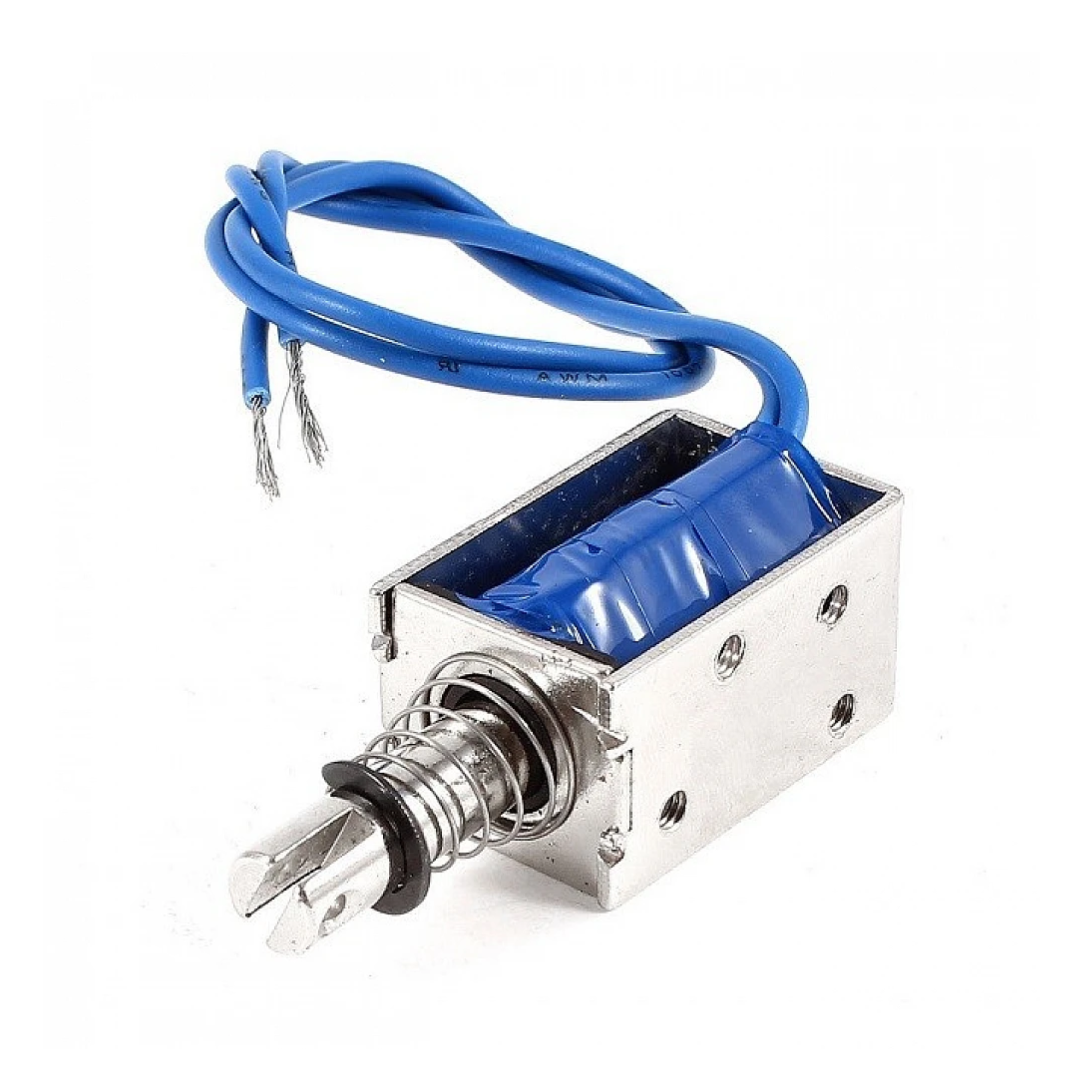

JF-0530B 12V Solenoid Push Pull Magnet

The JF-0530B 12V Solenoid Push Pull Magnet is an electromechanical actuator designed to produce linear push or pull motion when energized. It operates on a 12 V DC supply and generates a strong magnetic force to move the plunger in or out, making it suitable for automated mechanical control applications. The solenoid returns to its original position using an internal spring when power is removed. Its compact metal housing and reliable performance make it ideal for locking mechanisms, automation projects, and DIY electronics.

Technical Specifications:

• Model: JF-0530B
• Type: Push-Pull DC Solenoid
• Rated Voltage: 12 V DC
• Rated Current: Approx. 900 mA
• Power Consumption: Approx. 11 W
• Stroke Length: Approx. 10 mm
• Holding Force: Approx. 5 N
• Duty Cycle: Intermittent
• Operating Mode: Normally closed (spring return)
• Lead Type: Pre-attached wire leads
• Body Material: Metal housing

Features:

• Push and pull linear actuation
• Spring return mechanism for automatic reset
• Compact and robust metal construction
• Fast response time
• Easy to control using relay or transistor circuit
• Suitable for short-duration activation
• Reliable operation in automation projects

Applications:

• Electronic door locks and latches
• Smart access control systems
• Automation and robotics projects
• Mechanical switching mechanisms
• DIY electromechanical projects
• Vending and dispensing machines
• Educational demonstrations
