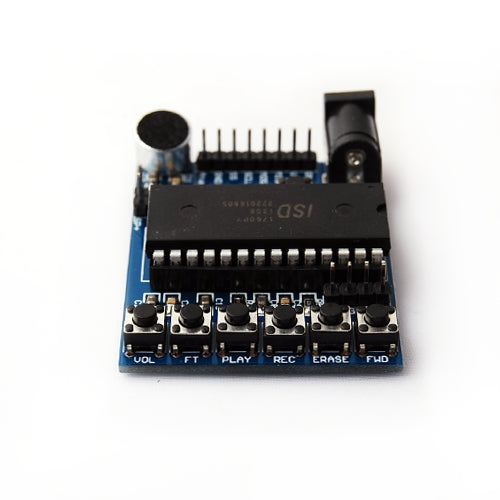

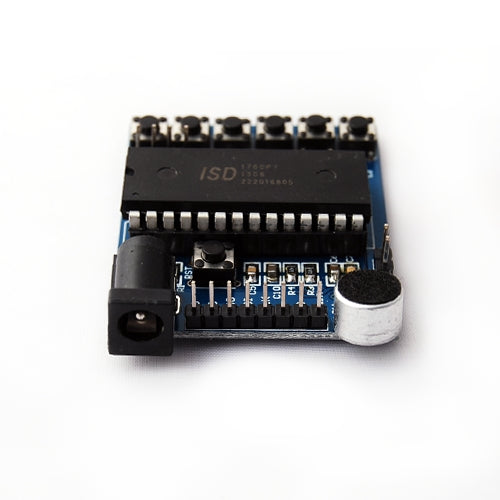

ISD1760 Voice Recording and Playback Module

SKU: VM00189

Sale price Rs. 455.08 (excl.18% GST)
Rs. 537.00


ISD1760 is a small Voice Recorder/Playback module that can do the multi-segment recording. The user can achieve a high quality of recording for each application with the adjustment of the on-board resistor (4k to 12k). This Voice Recorder/Playback module is designed to operate in two-mode standalone or microcontroller-based SPI mode. Additionally, it has a special feature that is vAlert (voice alert), which can be used as a message indicator, such as Start Record, Stop Record, Erase, Forward, Global Erase, etc.

Technical Specification:

  • Operating Voltage: 5 volts
  • Maximum and Minimum Recording time: 6K time 75 seconds, 8K for 60 seconds
  • Operating Frequency: 6KHZ and 8KHZ optional
  • Size: 6cm*6cm*2 (L*W*H)


  • Dual operating modes: Standalone mode and SPI mode
  • Two individual input channels
  • MIC input with AGC (Automatic Gain Control)
  • AnaIn (Analog input)
  • Dual output channels
  • Differential PWM Class D speaker outputs
  • Configurable AUD (current) or AUX (voltage) single-ended output
  • Non-volatile message storage using multi-level storage (MLS)
  • High-quality, natural voice, and audio reproduction
  • Integrated message management systems for single-chip, push-button applications


  • Voice Recording
  • Audio playback using microcontrollers
  • Low cost sound recording applications
