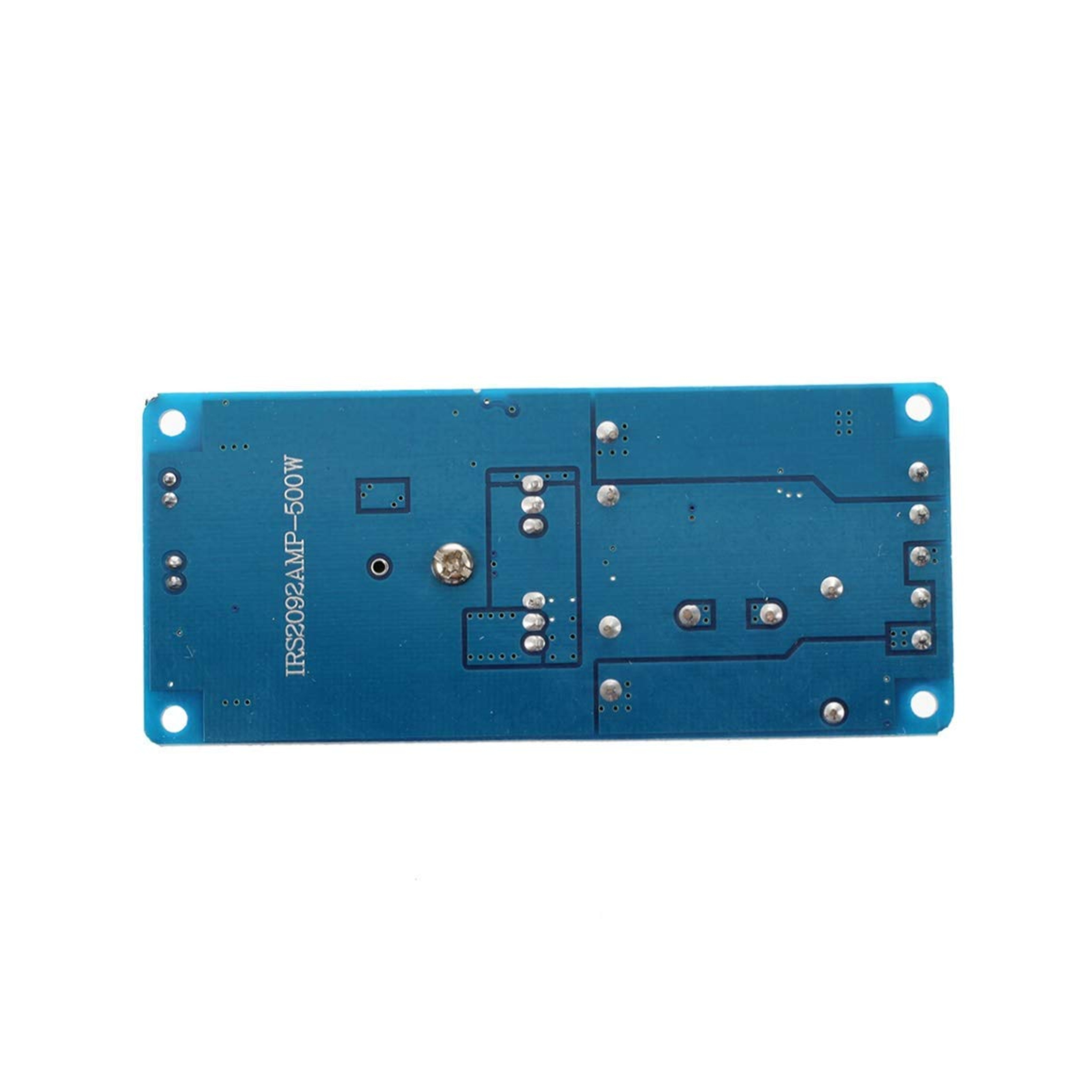

IRS2092S 500W Class D Digital Amplifier Module

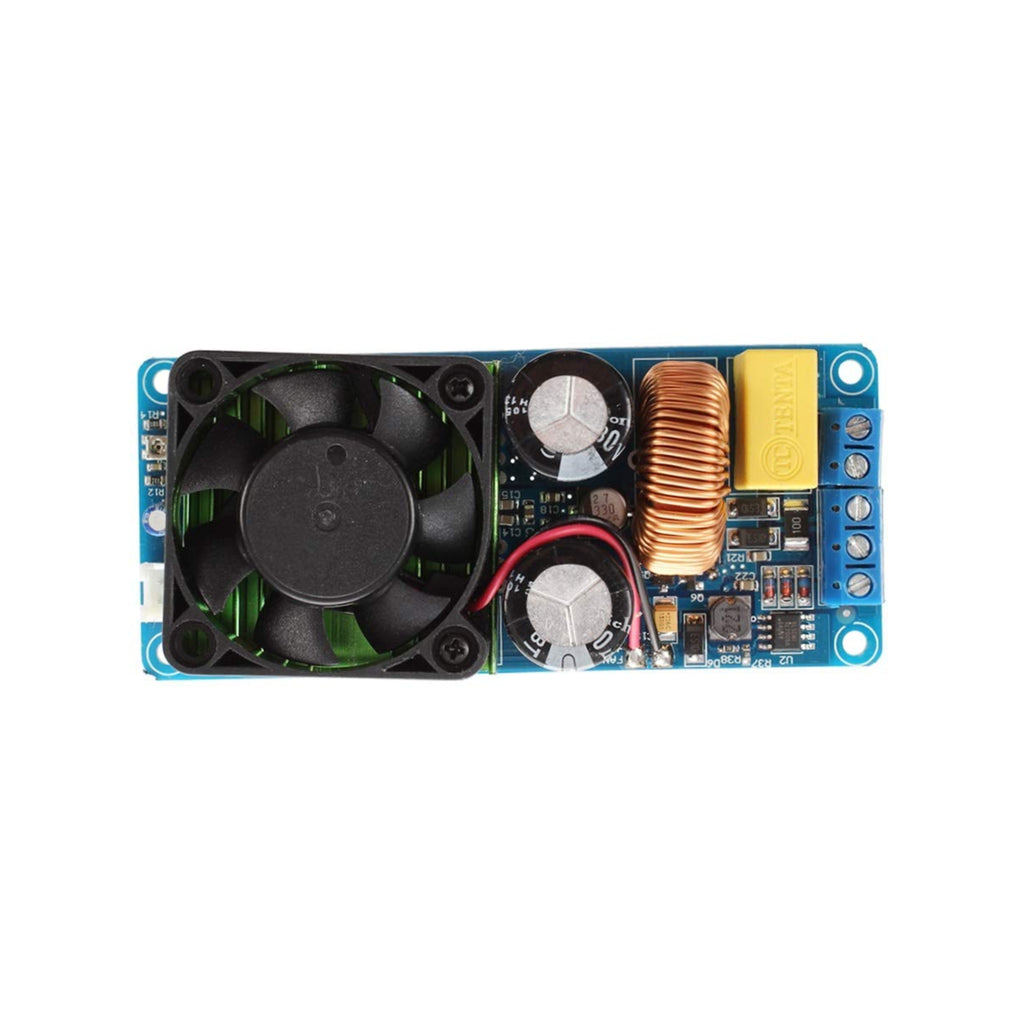

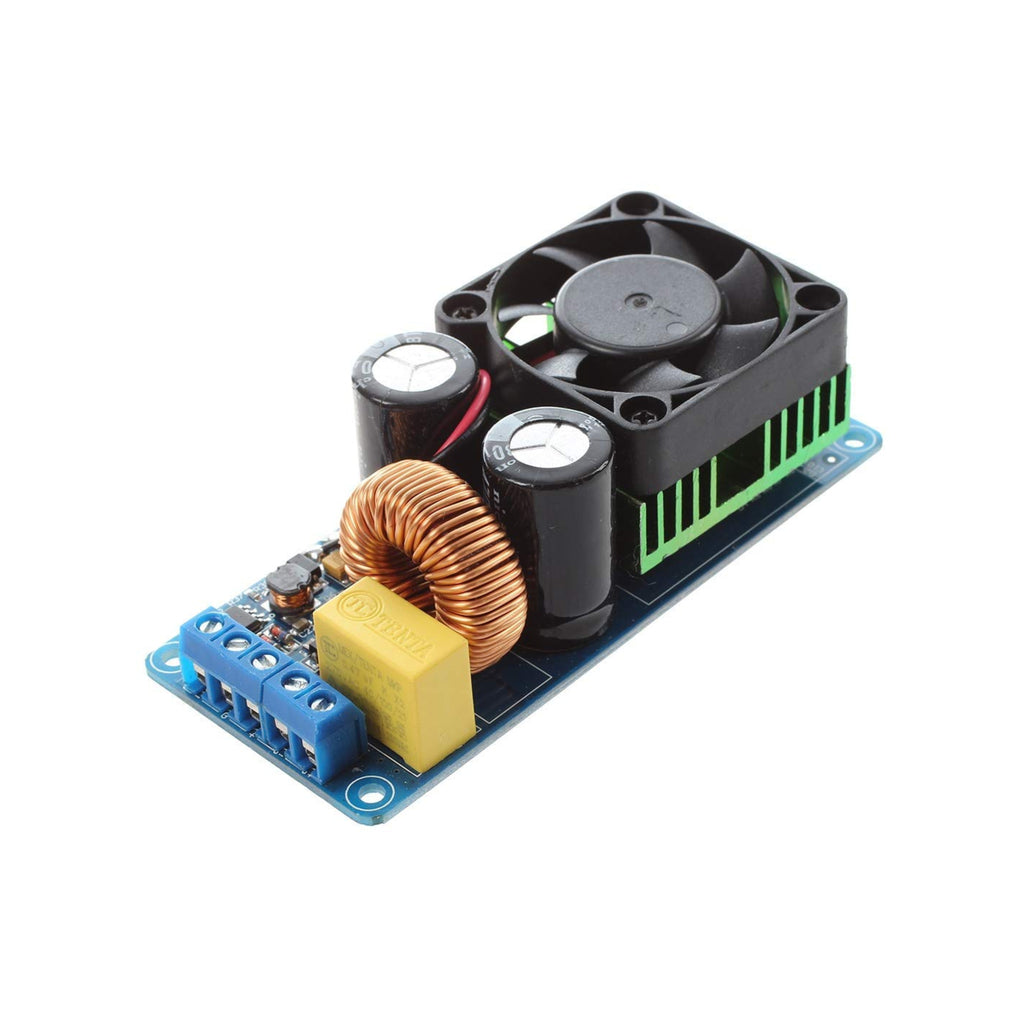

The IRS2092S 500W Class D digital amplifier module is a high-power audio amplification solution based on the IRS2092S driver IC. It is designed to deliver efficient and high-quality audio output using Class D amplification technology, which minimizes heat generation and power loss compared to traditional amplifiers. The module integrates essential components such as inductors, capacitors, and a cooling system (heatsink with fan), making it suitable for high-performance audio applications including subwoofers and professional sound systems.

Technical Specifications:

• Amplifier Type: Class D Digital Amplifier

• Driver IC: IRS2092S

• Output Power: Up to 500W (depending on supply voltage and load)

• Supply Voltage: Typically ±50V to ±70V DC (dual supply)

• Output Impedance: 4Ω – 8Ω

• Efficiency: Up to 90%

• Frequency Response: 20Hz – 20kHz

• THD (Total Harmonic Distortion): Low (<0.1% typical)

• Signal-to-Noise Ratio: High (>90 dB)

Features:

• High efficiency Class D amplification

• Compact design with high power output

• Built-in cooling system for thermal stability

• Low distortion and high audio fidelity

• Integrated protection circuits for safe operation

• Suitable for continuous high-power usage

• Stable performance with proper power supply

• Easy integration into audio systems

Applications:

• Subwoofer amplifiers

• Home theater systems

• Professional audio systems

• PA (Public Address) systems

• DIY audio amplifier projects

• Car audio systems (with proper power supply)

• High-power speaker driving applications

• Studio and live sound equipment
