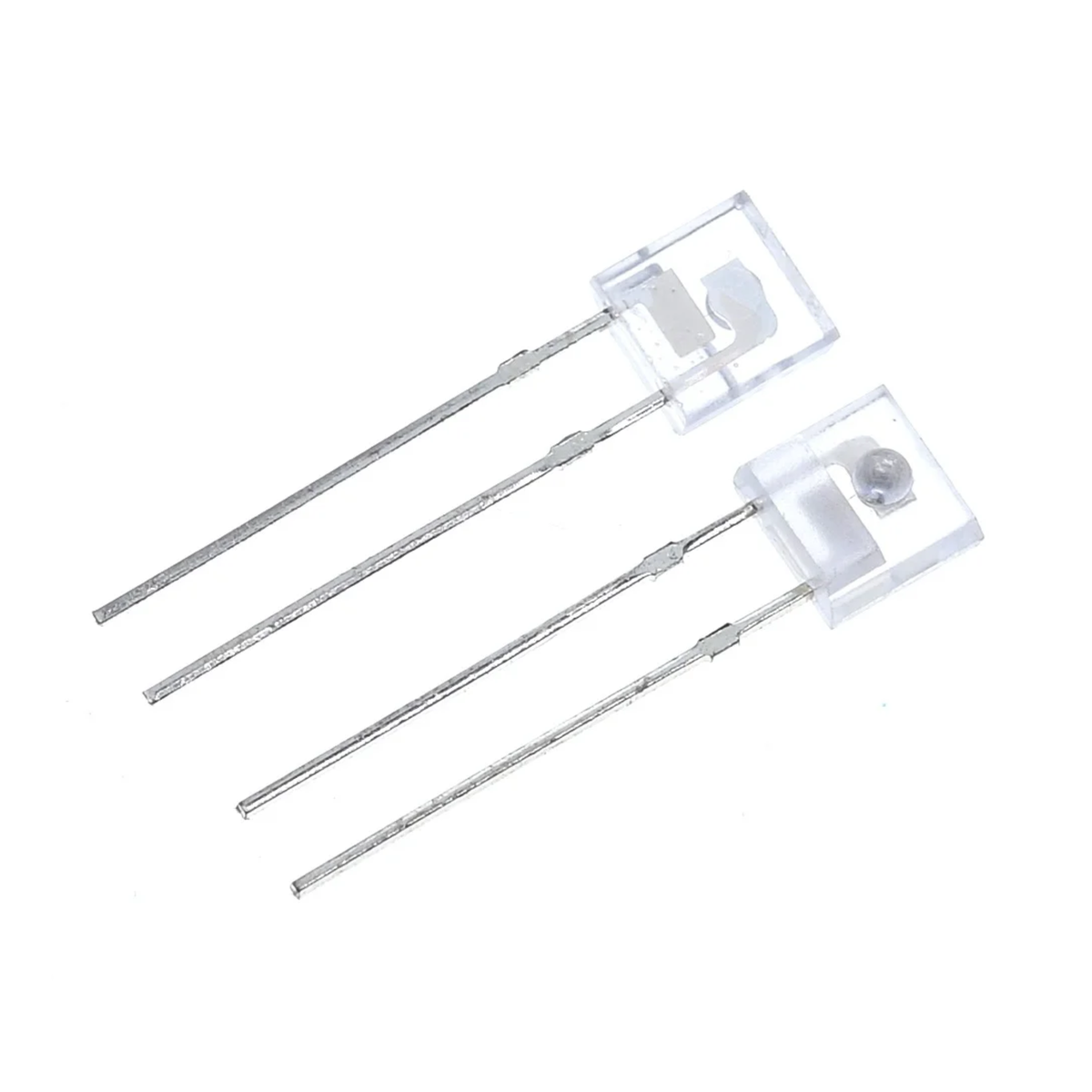

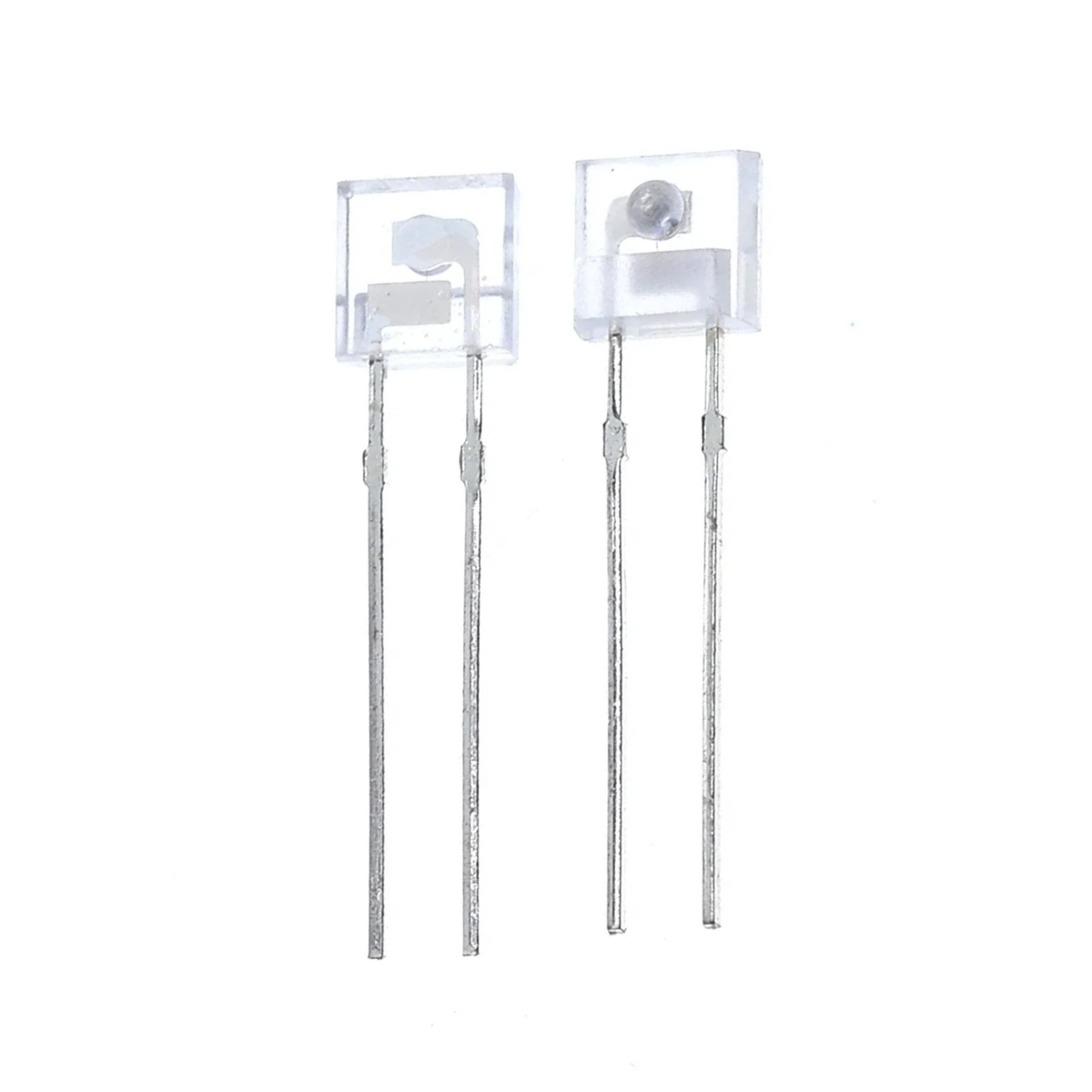

The IR928-6C-F Infrared Emitter Diode 940nm High Power IR Emission is a compact side-looking infrared LED designed for reliable IR transmission in sensing and optoelectronic applications. It emits infrared light at a peak wavelength of approximately 940nm and features a clear, flat-profile package suitable for space-limited PCB designs. Its side-view construction makes it suitable for pairing with phototransistors or IR receivers in object detection, position sensing and optical switching circuits.

Technical Features:

• Model: IR928-6C-F
• Device Type: Infrared Emitting Diode (IR LED)
• Peak Wavelength: 940nm
• Typical Forward Voltage: 1.25V at 20mA
• Maximum Forward Voltage: 1.60V at 20mA
• Maximum Continuous Forward Current: 50mA
• Viewing Angle: Approximately 20°
• Maximum Reverse Voltage: 5V
• Power Dissipation: 75mW
• Operating Temperature: -25°C to +85°C
• Mounting Type: Through-hole, side-view

Features:

• 940nm infrared emission
• Compact side-looking package
• Narrow IR emission angle
• Low forward-voltage operation
• Through-hole PCB mounting
• Water-clear lens
• Suitable for IR transmitter and receiver pairs
• Reliable performance for sensing applications

Applications:

• Infrared object detection
• Proximity sensing systems
• Optical switches
• Position detection
• Object counters
• Encoder systems
• Robotics and automation
• IR transmitter circuits
• Security and monitoring systems
