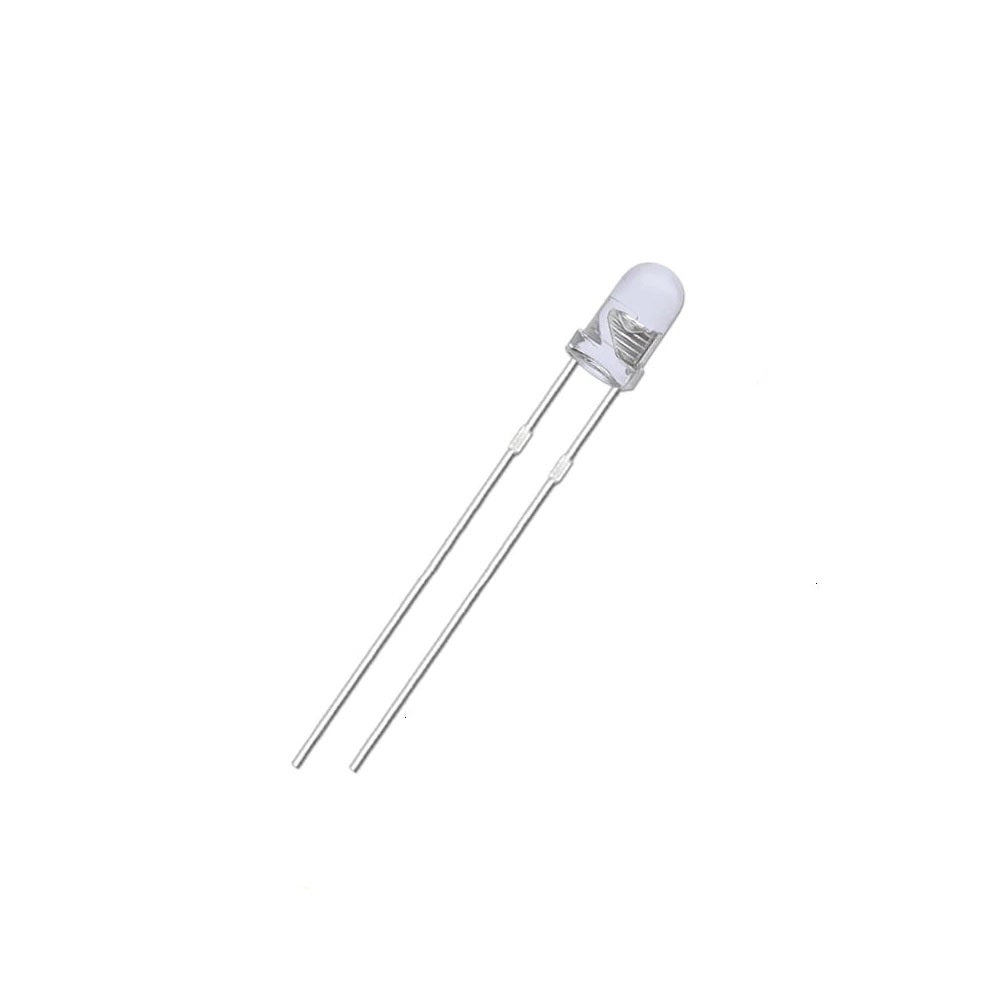

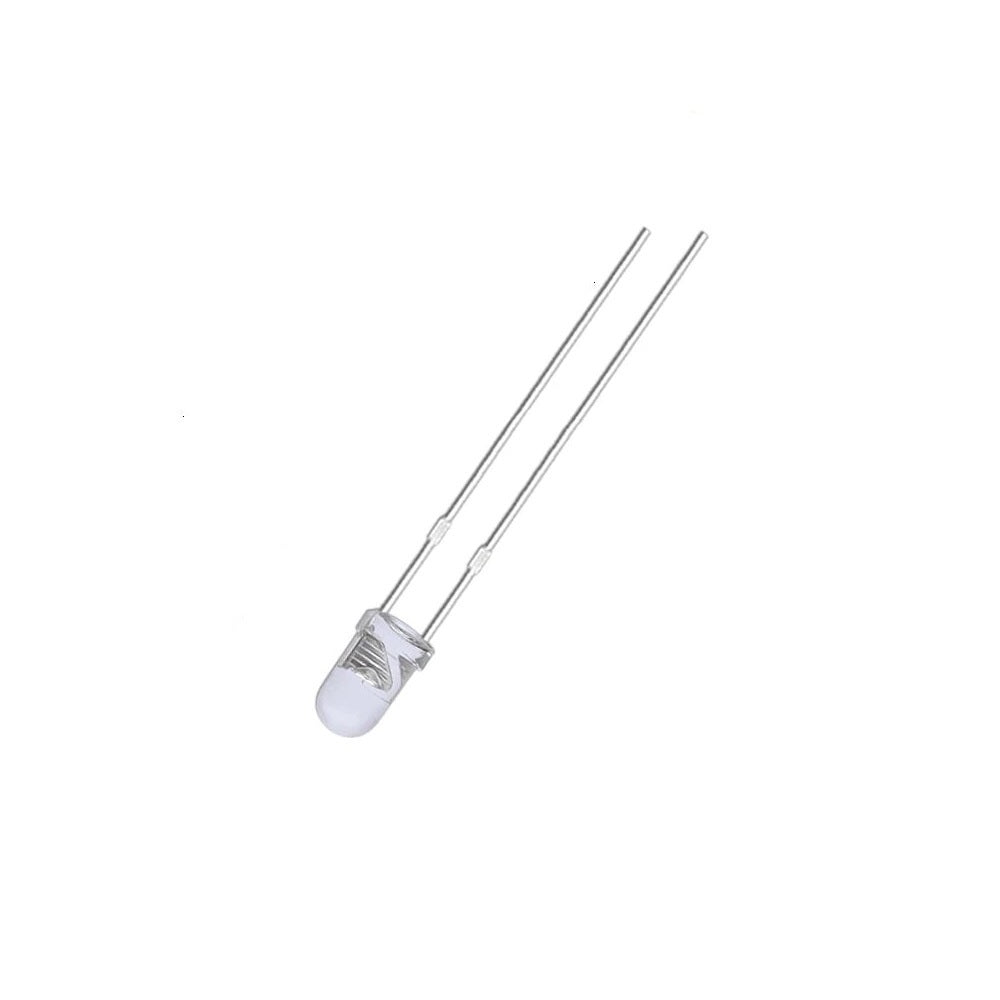

IR Transmitter LED 5mm - 3 Pieces Pack

SKU: VS00033

Send Inquiry


A light-emitting diode (LED) is a semiconductor light source that emits light when current flows through it. Electrons in the semiconductor recombine with electron holes, releasing energy in the form of photons. The color of the light (corresponding to the energy of the photons) is determined by the energy required for electrons to cross the bandgap of the semiconductor.

Technical Specification:

  • LED type: infrared led or IR transmitter
  • Forward voltage: 2.8 ~ 5V
  • Reverse current: 50 µA
  • Continuous forward current: 20mA
  • Peak forward current: 80mA
  • Power dissipation: 100mW
  • LED Diameter: 5mm
  • No of Pin: 2
  • Operating Temperature: -40 ~ 85°C
  • Mounting Type: Through Hole
  • Lens Diameter: 5mm
  • Shape:  Round


  • High radiant intensity
  • 5mm through-hole packages
  • 54mm lead spacing
  • Low forward voltage


  • IR Touch-Panel
  • Industrial equipment
  • Other Infrared application systems
