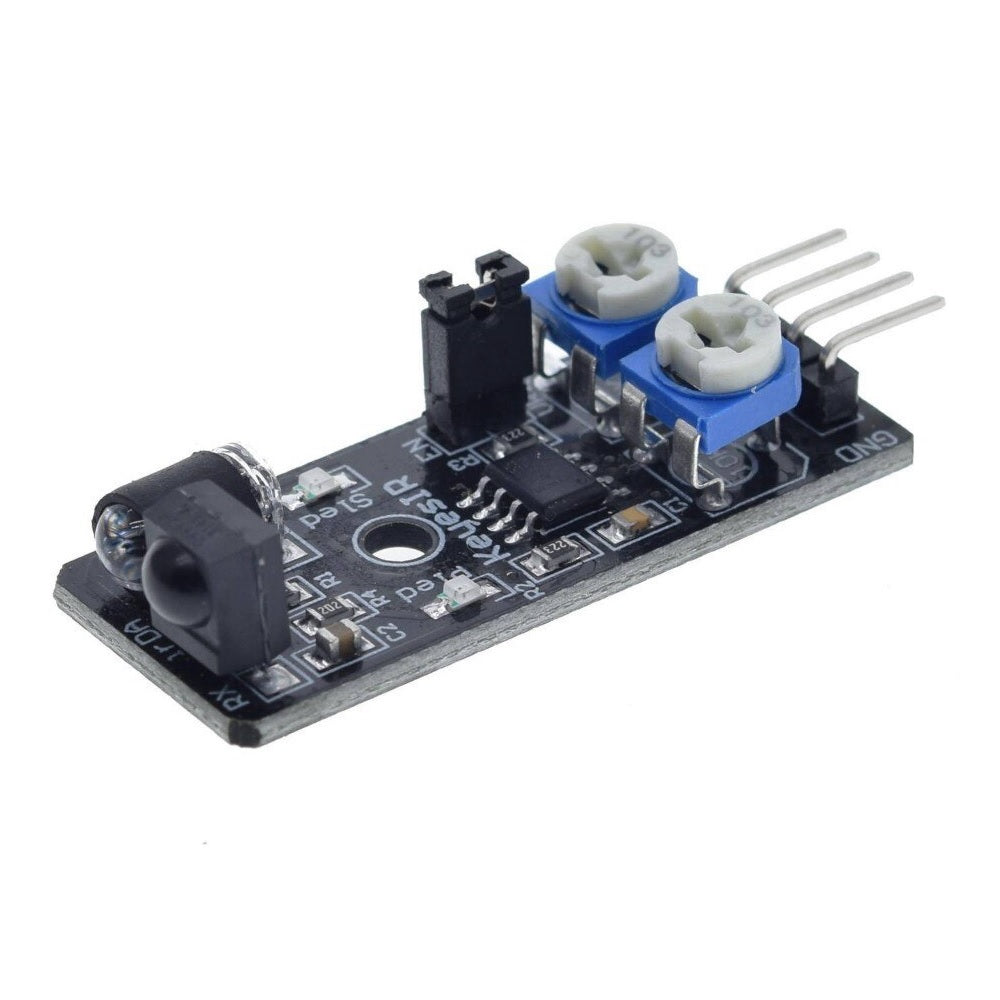

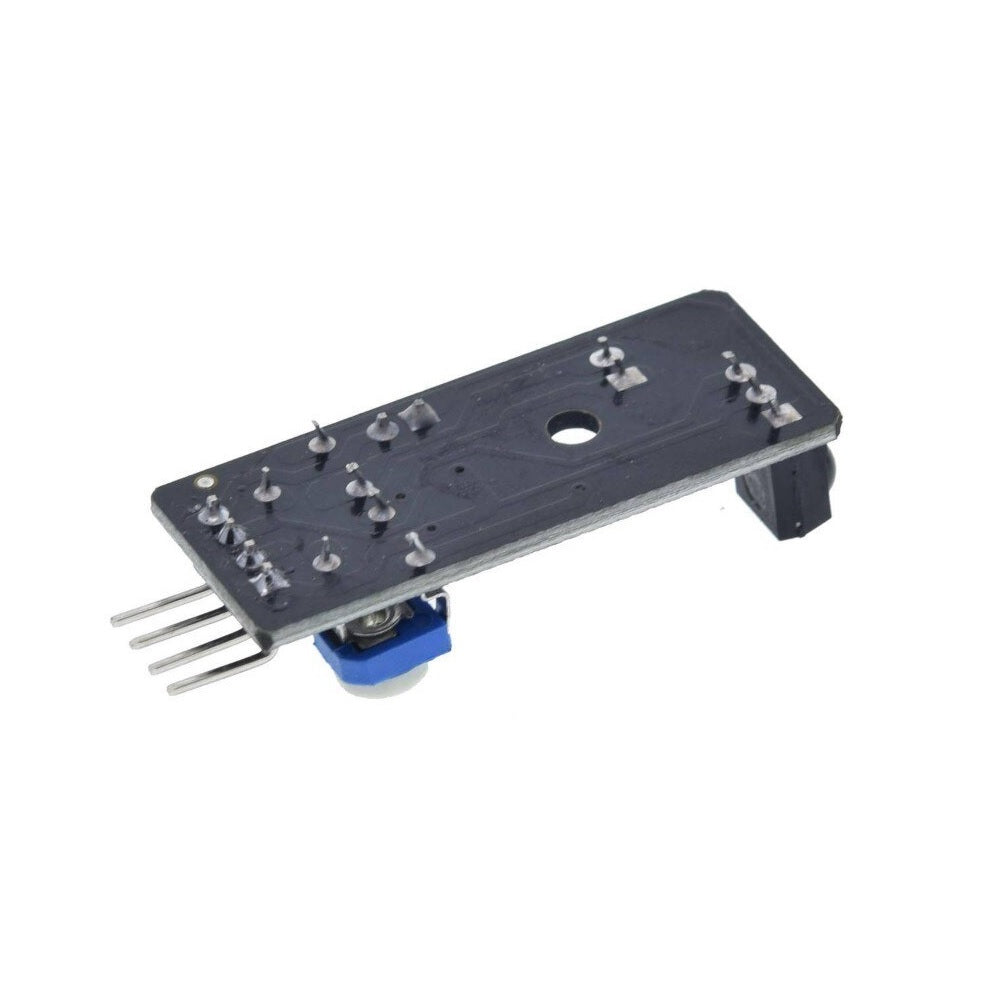

Infrared Obstacle Avoidance Sensor Module

SKU: VM00814

Price:
Sale price Rs. 70.34 (excl.18% GST)
Rs. 83.00

Description

The IR Obstacle Avoidance Sensor Module uses an infrared emitter / receiver pair to detect obstacles in front of the sensor.

Technical Specification:

  • Working voltage: DC 3.3V-5V
  • Working current: 20mAh
  • Working temperature: -10'C~+50'C
  • Detection distance: 2~40cm
  • IO interface: 4 line (-/+/S/EN)
  • Output signal: TTL Level
  • Adjusting mode: Multi resistance regulation
  • Effective angle: 35°
  • Size: 40mm*16mm*11mm (L*W*H) (approx)

 Features:

  • Sensing distance 2-40 cm, distance, good anti-jamming capability
  • The sensor 3 to 6V supply, wide range, which is suitable for 3V and 5V MCU system
  • It can induce a distance of 2 to 40 cm, with good anti-interference ability
  • 3mm screw holes for easy mounting
  • Easy to assemble and use

Applications:

  • Wheeled robots
  • Robotics
  • Liquid level detection
  • Robot obstacle avoidance
  • Obstacle avoidance car
  • Line count
