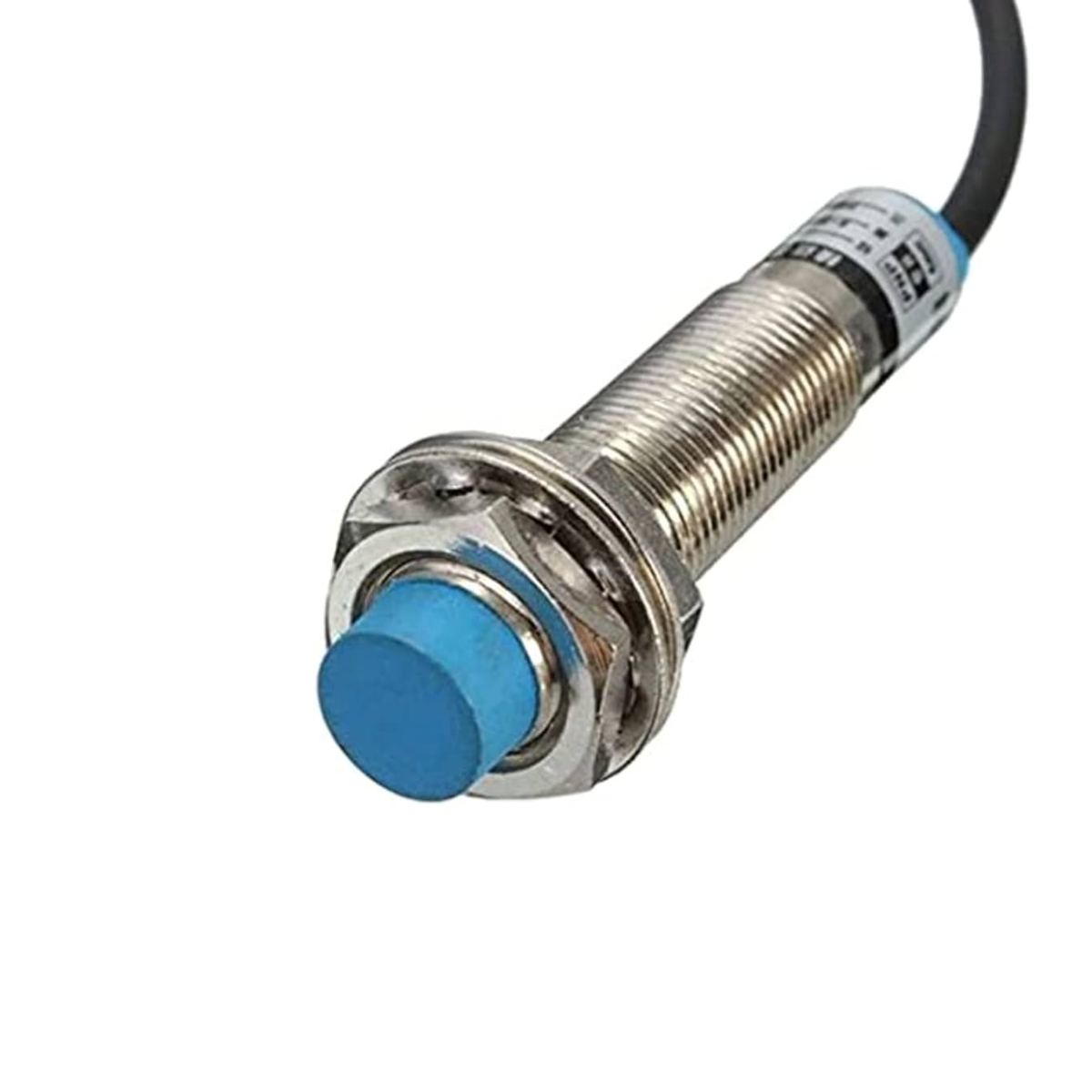

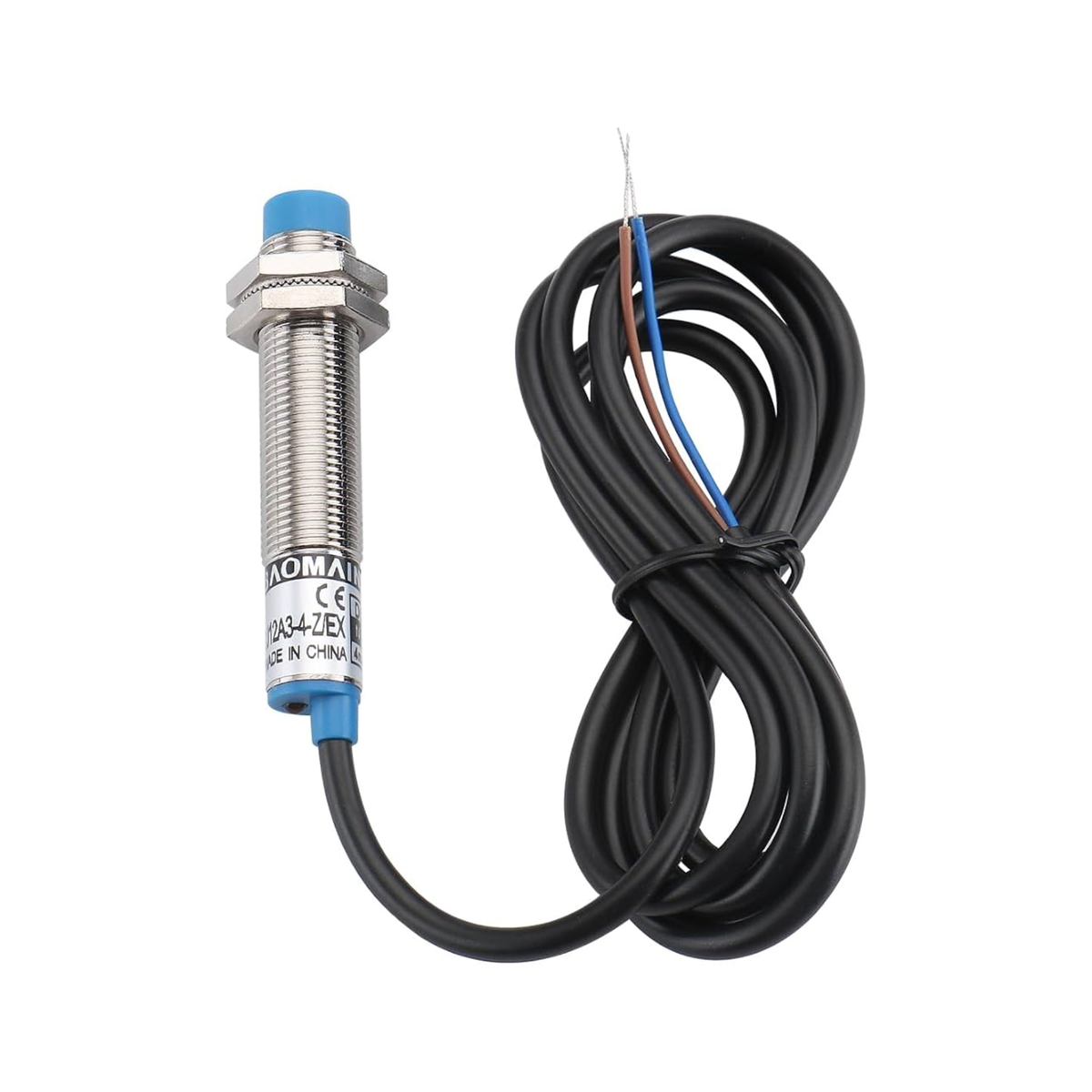

Inductive Proximity Sensor Lj12A3-4-Z/BX NPN Switch DC 6-36 Volt

The LJ12A3-4-Z/BX Inductive Proximity Sensor NPN Switch DC 6-36V is a non-contact metal detection sensor designed for automation, robotics, CNC machines and industrial control applications. It detects nearby metallic objects without physical contact, helping reduce mechanical wear and improve switching reliability. The cylindrical threaded metal body allows easy mounting and position adjustment using the supplied nuts and washers. This sensor uses a three-wire NPN normally open output and operates from a wide 6V to 36V DC supply range. Its compact design, attached cable and reliable inductive sensing make it suitable for object detection, position sensing, limit switching and machine automation projects.

Technical Specifications:

• Model: LJ12A3-4-Z/BX
• Sensor Type: Inductive Proximity Sensor
• Detection Method: Non-contact inductive sensing
• Detection Distance: Approx. 4mm
• Operating Voltage: DC 6V–36V
• Output Type: NPN
• Switching Type: Normally Open (NO)
• Number of Wires: 3 Wire
• Detected Material: Metallic objects
• Body Type: Cylindrical threaded metal housing
• Wiring: Brown - Positive, Blue - Ground, Black - Output

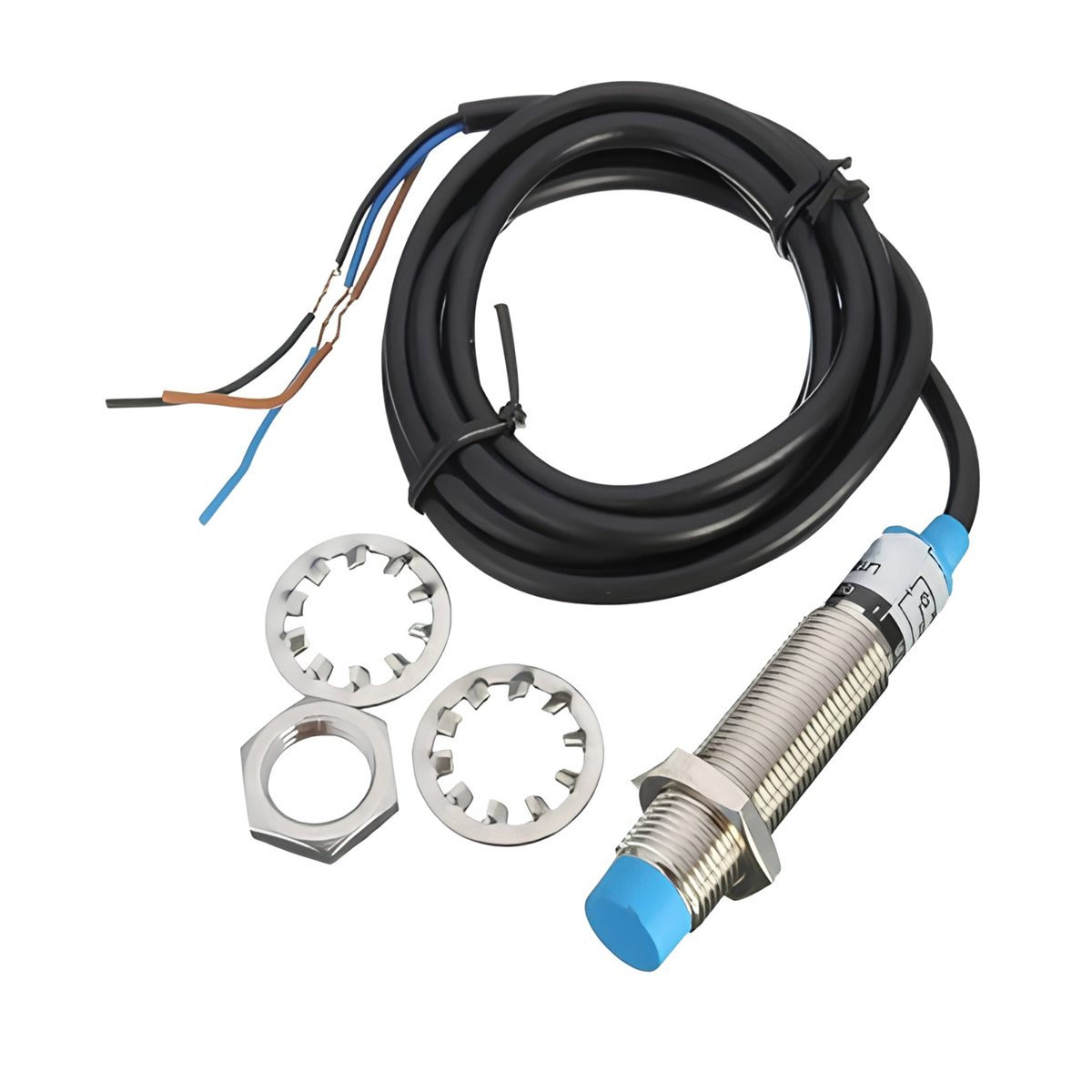

• Mounting: Threaded body with nuts and washers

Features:

• Detects metallic objects without physical contact
• Approximately 4mm sensing distance
• NPN normally open switching output
• Wide 6V to 36V DC operating range
• Durable threaded metal construction
• Easy adjustable mounting
• Three-wire connection for simple integration
• Suitable for repeated industrial switching operations

Applications:

• CNC machines
• 3D printers and automation equipment
• Position and limit detection
• Conveyor systems
• Robotics projects
• Metal object detection
• Industrial control systems
• Counting and sensing applications
• Machine positioning systems
• DIY electronic automation projects
