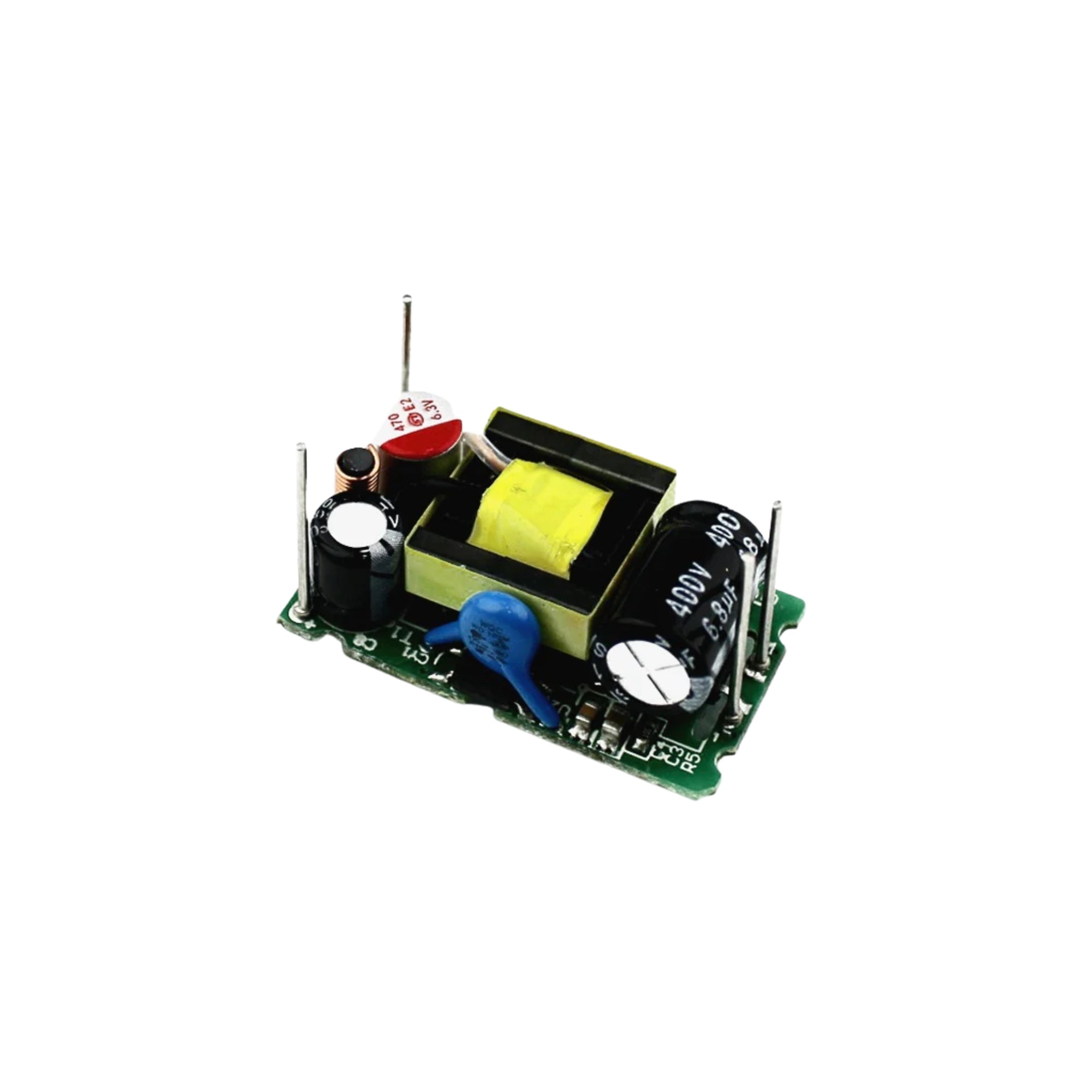

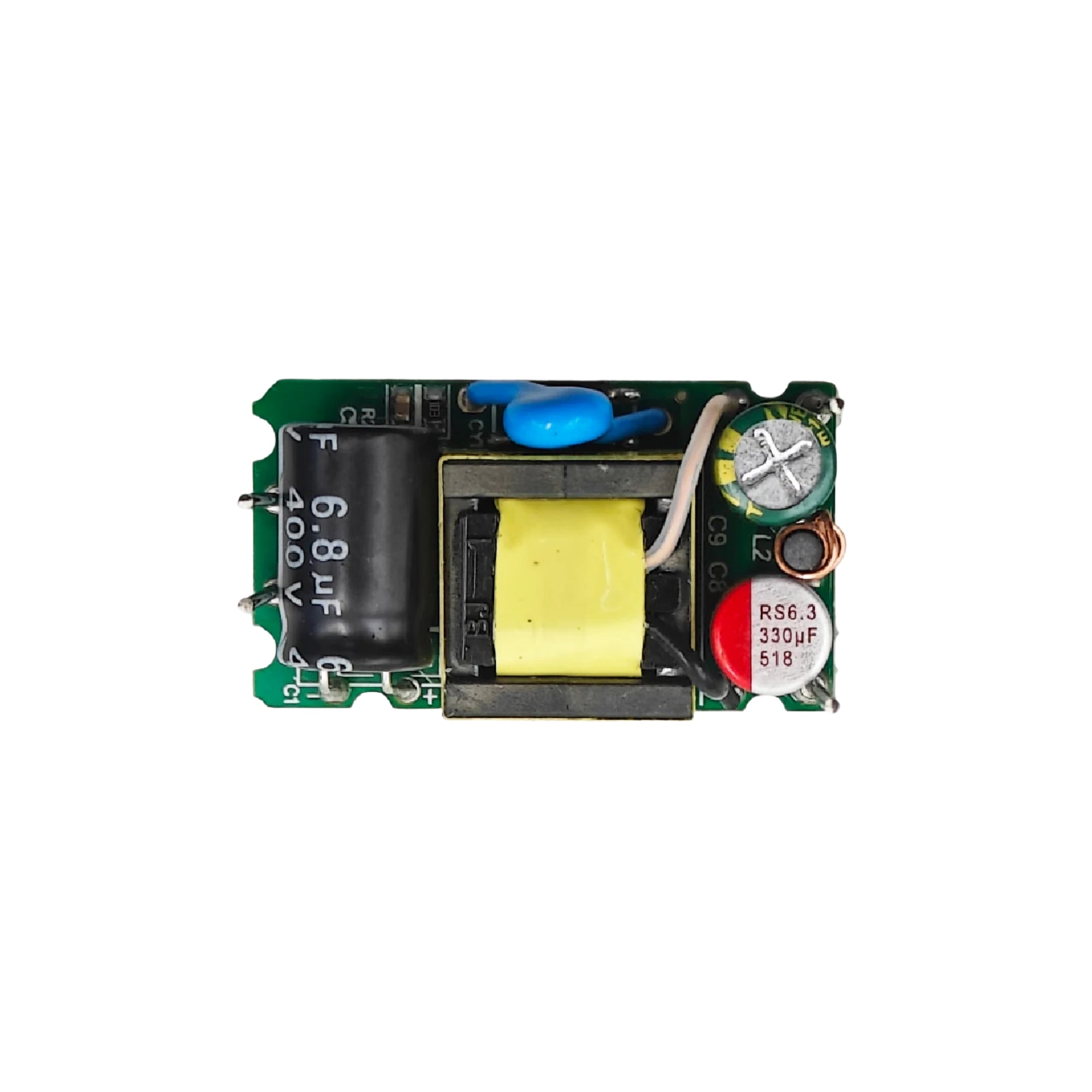

HLK-PM01L Open Type Module

The HLK-PM01L Open Type Module is a compact AC-DC isolated power supply module designed to convert high-voltage AC input into a stable low-voltage DC output. It is widely used in embedded systems, smart home devices, IoT products, and industrial control applications where compact size, high efficiency, and reliable isolated power conversion are required.

The module features an open-frame design with built-in protection circuits and provides a regulated DC output suitable for powering microcontrollers, sensors, communication modules, and automation circuits.

Technical Specifications

• Model: HLK-PM01L Open Type Module
• Input Voltage: 100V – 240V AC
• Input Frequency: 50Hz / 60Hz
• Output Voltage: 5V DC
• Output Current: Up to 600mA
• Output Power: 3W
• Isolation Voltage: 3000V AC
• Conversion Type: AC to DC Isolated Power Supply

Features:

• Compact open-frame AC-DC converter module
• Wide AC input voltage range
• Stable regulated 5V DC output
• High isolation for enhanced safety
• Built-in overload and short-circuit protection
• Low ripple and noise output
• High conversion efficiency
• Lightweight and compact design
• Easy integration into embedded systems

Applications:

• Smart home automation systems
• IoT and wireless devices
• Embedded control systems
• Industrial automation equipment
• Microcontroller power supplies
• Sensor and communication modules
• DIY electronics projects
• Power supply for development boards
• LED control systems
• Low-power electronic appliances
