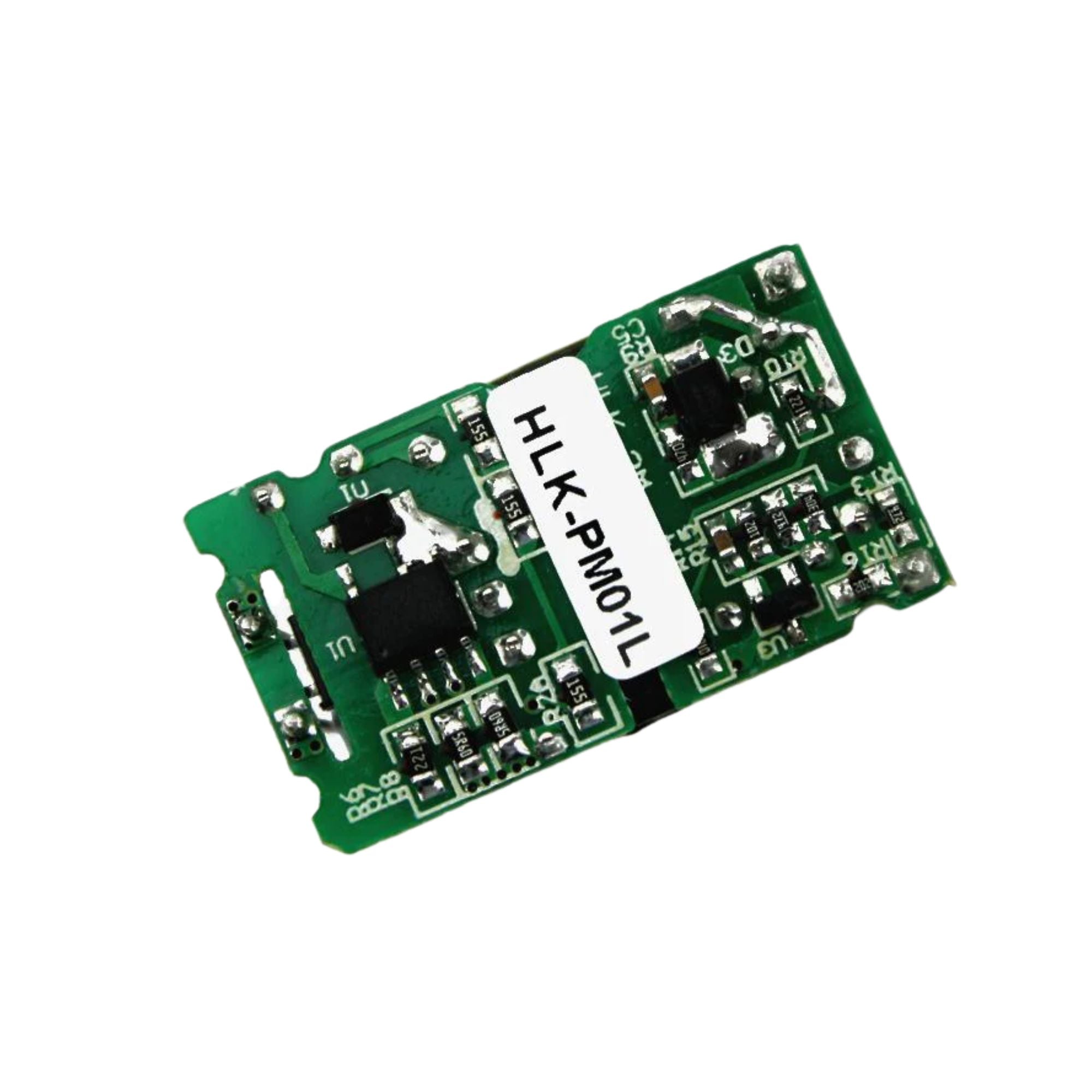

HLK-PM01L Open Type Module

The HLK-PM01L Open Type Module is a compact, isolated AC-to-DC power supply module designed to convert mains AC voltage directly into a regulated low-voltage DC output. Built for embedded and space-constrained designs, it integrates transformer isolation, rectification, regulation, and protection on a small PCB. The open-frame form factor makes it suitable for integration inside enclosures, control boards, and IoT devices requiring reliable mains power conversion.

Technical Specifications

• Input Voltage: 100–240 V AC, 50/60 Hz
• Output Voltage: 5 V DC
• Output Power: 3 W
• Output Current: Up to 600 mA
• Isolation: Reinforced isolation between input and output
• Efficiency: High efficiency design
• Ripple & Noise: Low ripple output
• Protections: Over-current, short-circuit, over-temperature
• Operating Temperature: −25 °C to +60 °C
• Mounting Type: Through-hole / PCB mount
• Module Type: Open-frame AC-DC converter

Features

• Compact size for embedded applications
• Wide AC input range (global mains compatible)
• Isolated and regulated 5 V DC output
• High reliability and long service life
• Low standby power consumption
• Built-in safety and protection circuits
• Easy PCB integration

Applications

• IoT and smart home devices
• Embedded control systems
• Industrial automation equipment
• Smart switches and relays
• Power supplies for microcontroller boards
• Home appliances and consumer electronics
• Educational and prototyping projects
