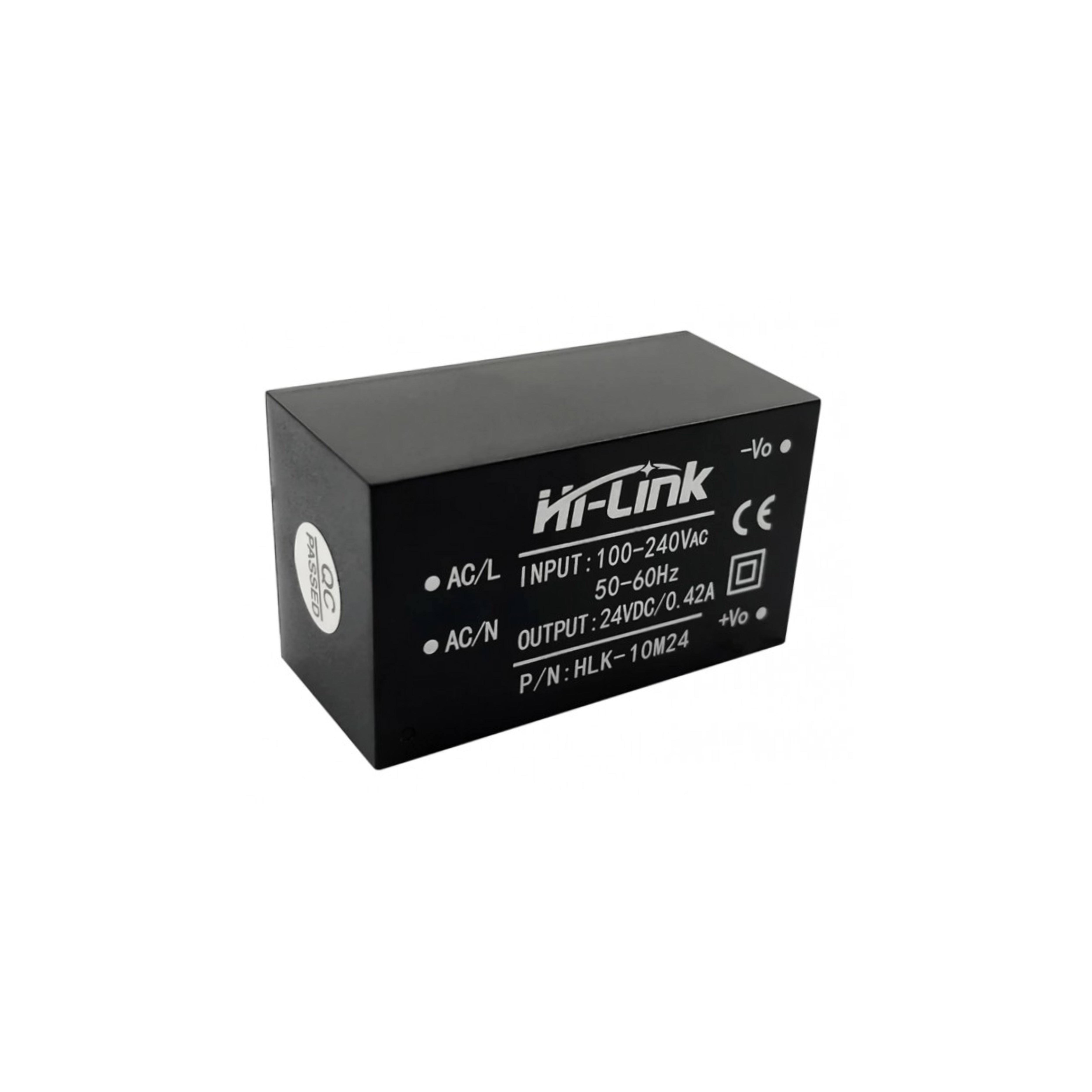

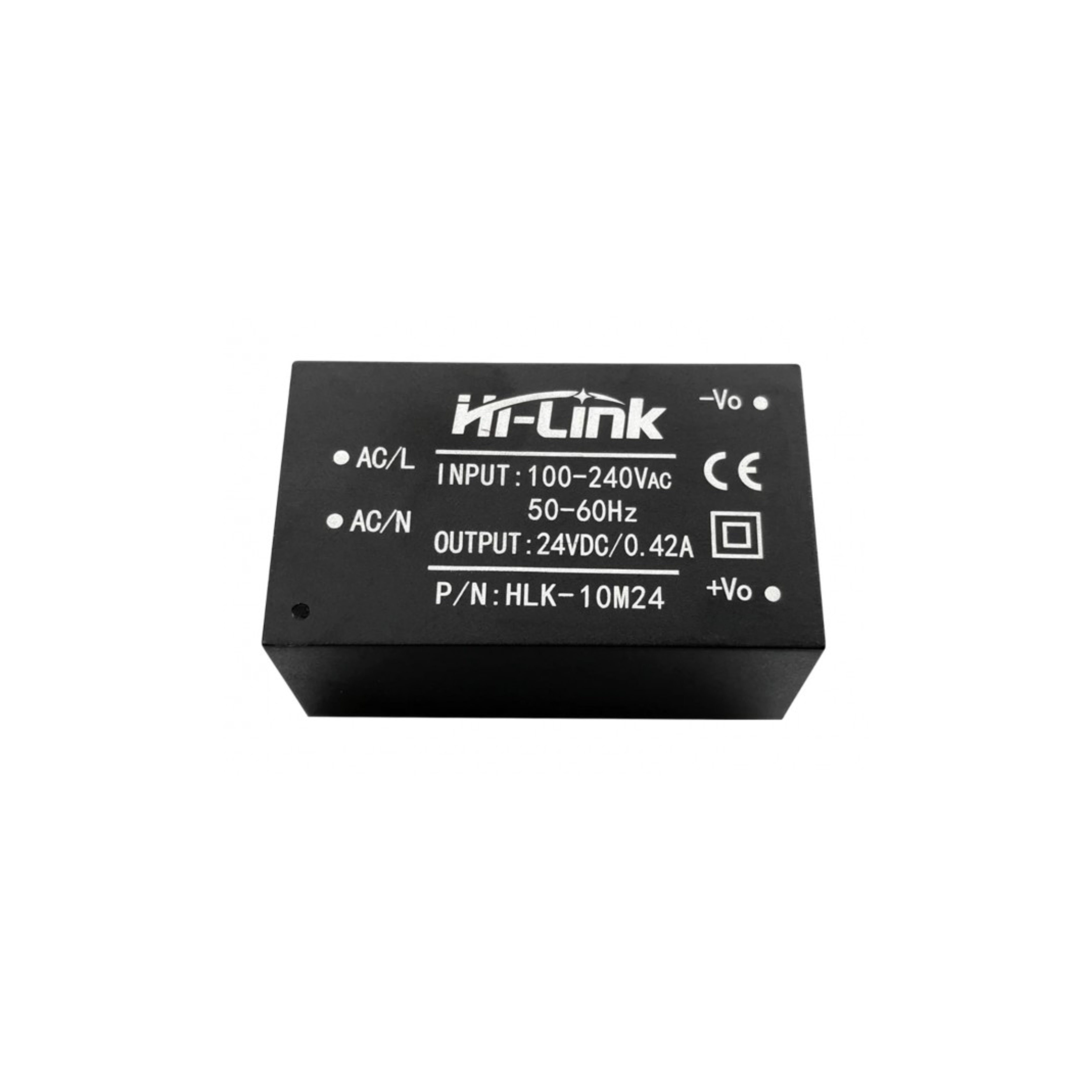

HLK-10M24 Hi-Link 24V 10W AC to DC Power Supply Module

The HLK-10M24 is a compact, enclosed AC to DC power supply module designed to convert wide-range AC input voltage into a stable 24V DC output. Manufactured by Hi-Link, this module integrates high-efficiency switching power supply technology in a small, fully encapsulated form factor. It is ideal for embedded applications, smart home devices, and industrial electronics where space-saving and reliable power conversion are required. The module provides electrical isolation between input and output, ensuring safe operation and easy integration into PCB designs.

Technical Specifications:

• Model: HLK-10M24

• Input Voltage: 100V to 240V AC

• Input Frequency: 50/60 Hz

• Output Voltage: 24V DC

• Output Current: 0.42 A

• Output Power: 10 W

• Efficiency: Typically up to 80–85%

• Isolation Voltage: 3000V AC (input to output)

• Ripple and Noise: ≤ 100 mV (typical)

• Operating Temperature: −20°C to +60°C

• Storage Temperature: −40°C to +85°C

• Protection Features: Short circuit, overcurrent, and thermal protection

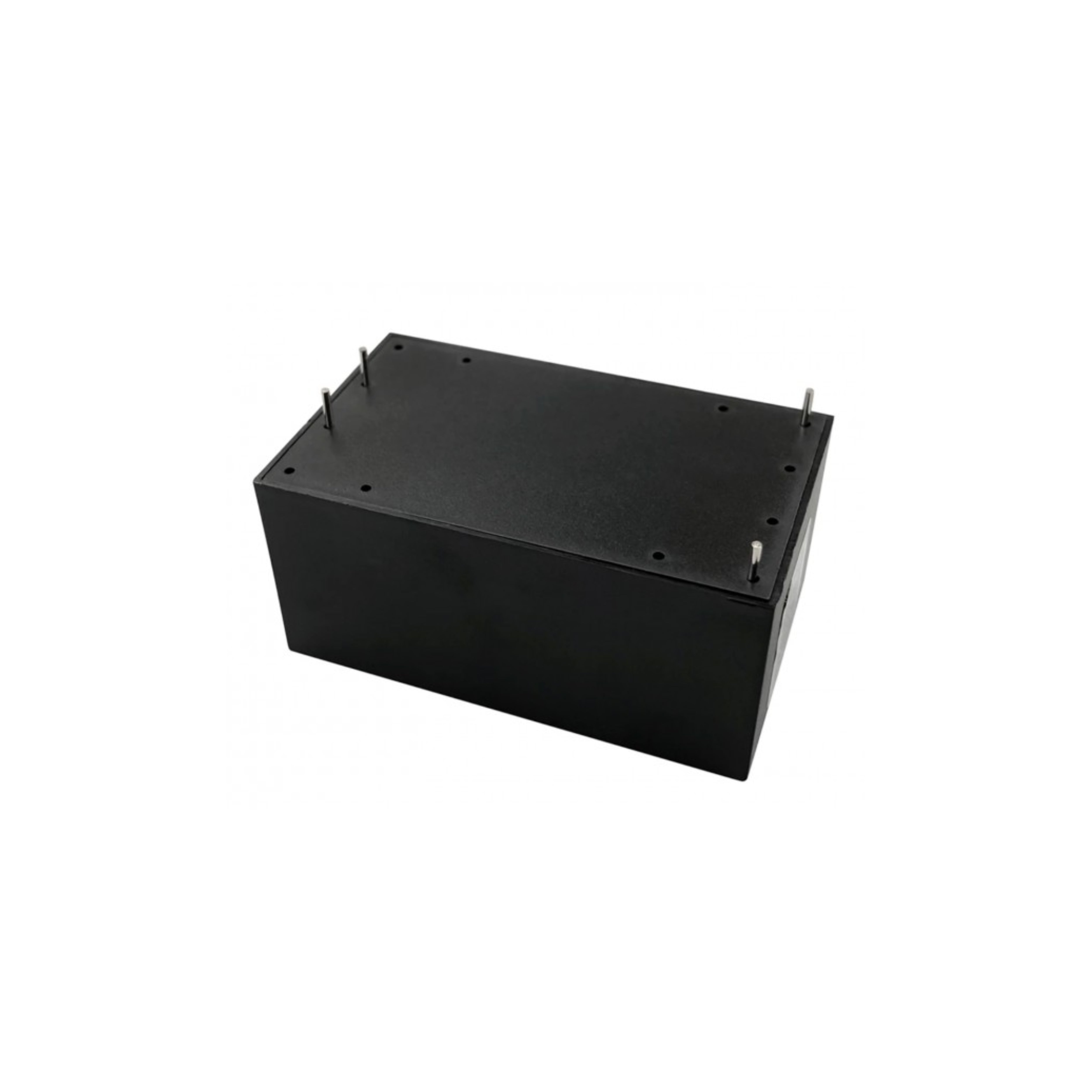

• Mounting Type: PCB mount (through-hole pins)

• Dimensions: Approximately 45 × 30 × 20 mm

Fetaures:

• Wide input voltage range suitable for global use

• Compact and fully enclosed design

• High efficiency and low standby power consumption

• Built-in protections for safe and reliable operation

• High isolation for enhanced safety

• Easy PCB integration with pin-type mounting

• Stable and regulated 24V DC output

• Long operational life and high reliability

Applications:

• Smart home and IoT devices

• Industrial control systems

• Embedded electronics

• Power supply for microcontrollers and sensors

• Home automation systems

• LED drivers and control circuits

• Instrumentation and measurement devices

• General-purpose AC to DC power conversion systems
