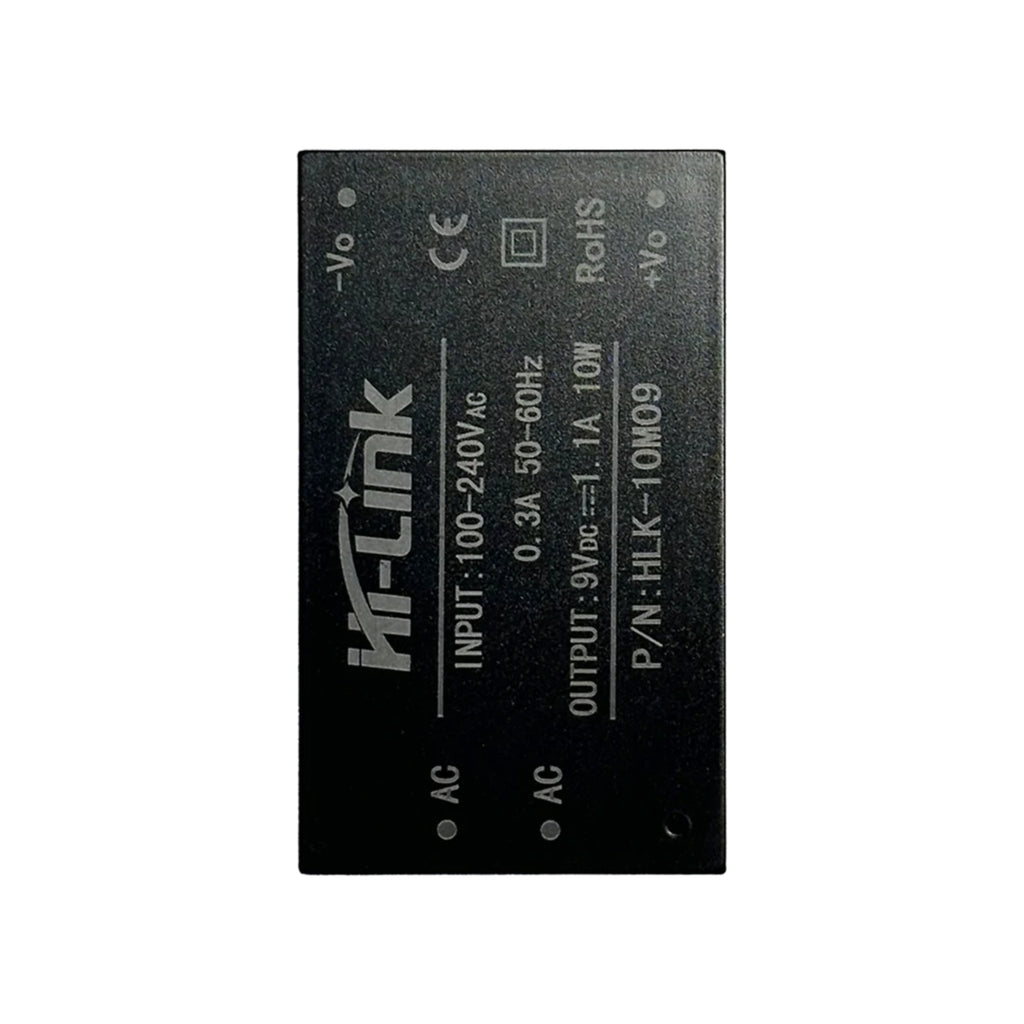

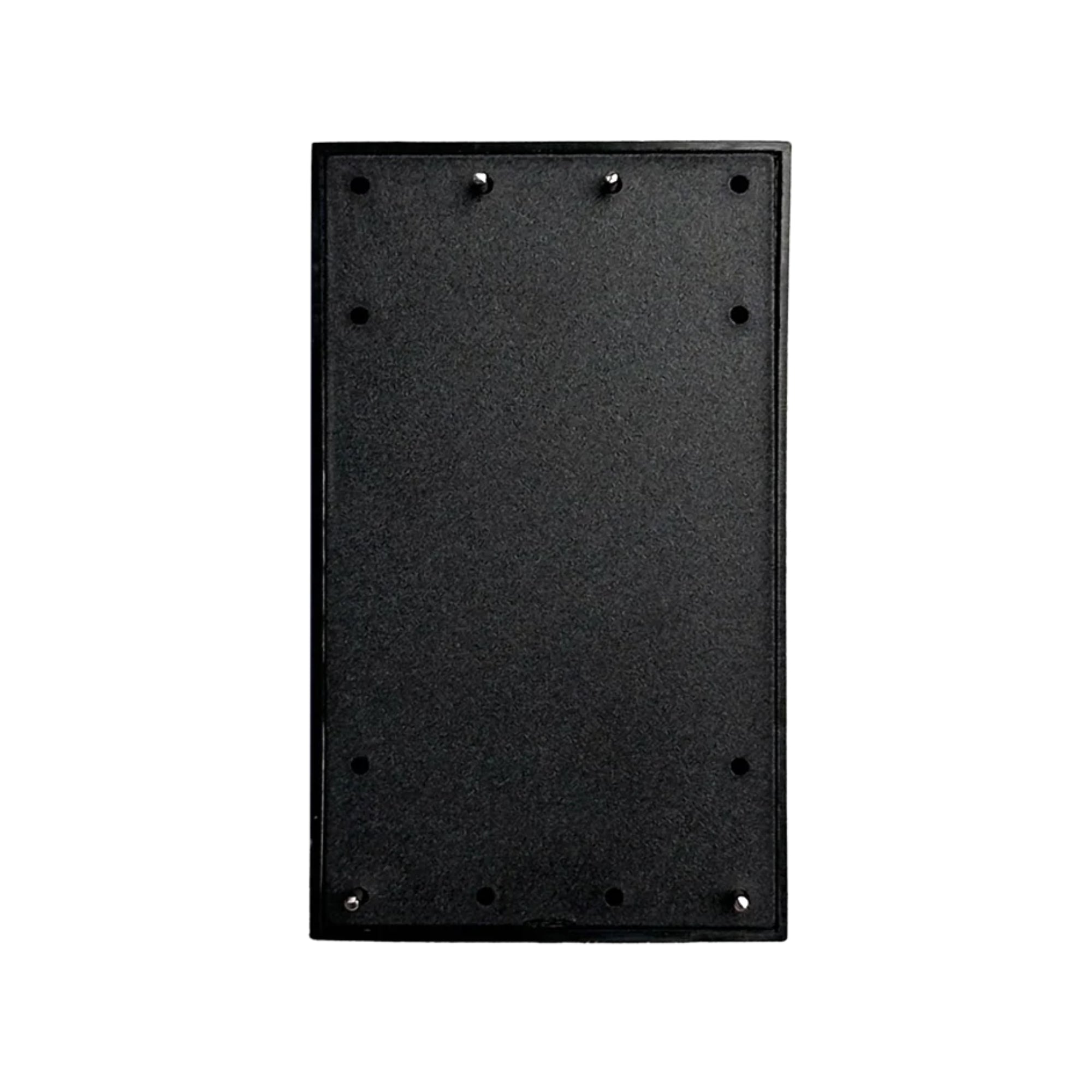

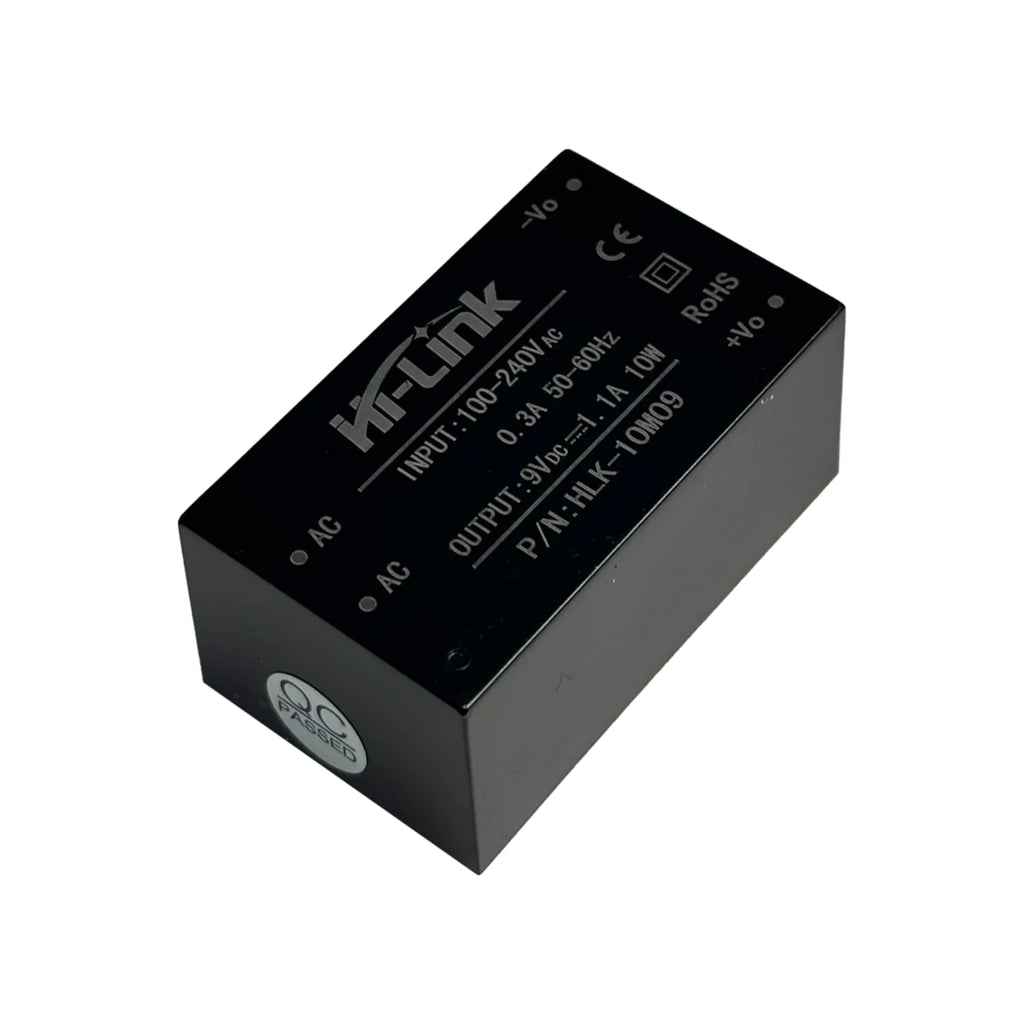

HLK-10M09

The HLK-10M09 is a compact, high-efficiency AC to DC isolated power supply module from Hi-Link, designed to convert 100–240V AC mains input into a stable 9V DC output. With a power rating of up to 10W, this PCB-mount SMPS module is ideal for embedded electronics, industrial control boards, IoT devices, and automation systems where safety, reliability, and space-saving design are critical.

Technical Specifications:

• Input Voltage: 100–240V AC
• Input Frequency: 50/60 Hz
• Output Voltage: 9V DC
• Output Current: Up to 1.1A
• Output Power: 10W
• Isolation: Galvanic isolation (AC to DC)
• Efficiency: High efficiency switching design
• Ripple & Noise: Low ripple, low noise output
• Mounting Type: PCB mount (through-hole)
• Protections: Short-circuit, over-current, over-voltage
• Operating Temperature: −25°C to +60°C
• Safety Certifications: CE, RoHS compliant

Features:

• Compact and fully enclosed SMPS module
• Wide AC input voltage range
• Stable and regulated 9V DC output
• Built-in isolation for enhanced safety
• High reliability and long service life
• Low power loss and high efficiency
• Easy PCB integration with minimal external components
• Suitable for continuous operation

Applications:

• Embedded electronics power supply
• Industrial automation and control systems
• IoT devices and smart controllers
• Microcontroller and development boards
• Home automation modules
• Sensor and relay control circuits
• DIY electronics and prototyping
• Power supply for communication modules
