Description

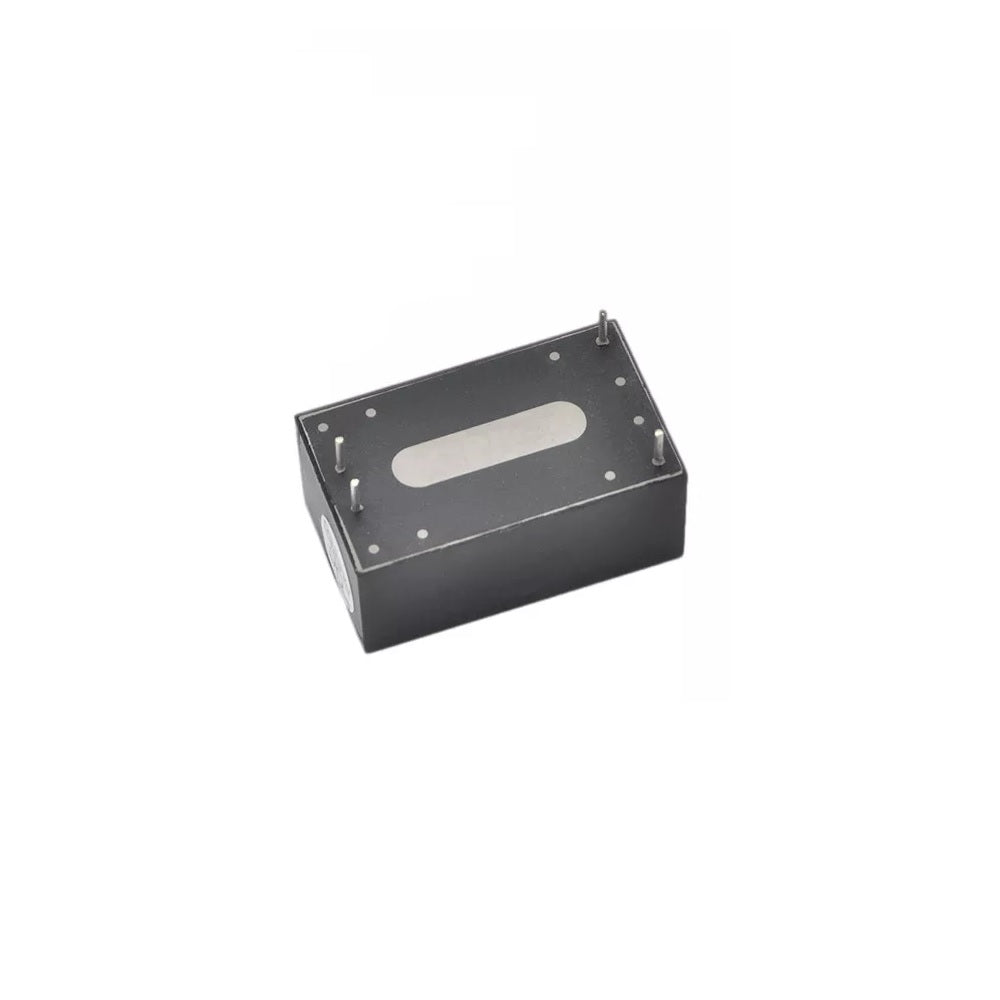

HLK-PM12 Hi-link 12V 3W – AC to DC Power Supply Module from Hi-Link is a PCB mounted plastic enclosed isolated switching step down power supply module. It can supply 12V DC from 120V AC- 230V AC and has a power rating of 3 watts. Its ultra-compact size makes it perfect to use in places where size is a constraint and that needs a 12 volt supply from mains. This module replaces lots of parts from the traditional power supply like diodes, voltage regulator, transformer.
This Power Supply Module voltage source is a switching source, so you do not have to worry about fluctuations in the voltage grid. It is designed to be mounted on the PCB and is the ideal solution to power pads that you take. There are many advantages for this module, such as low-temperature rise, low power, high efficiency, high reliability, high-security isolation
Technical Specification:
- Rated input voltage: 100-240 VAc
- Input voltage range: 90-264 VAc
- Load rated output voltage: 12VDC
- Full rated output voltage: 12 VDC
- Maximum input current: ≤0.2 A
- Input current surge: ≤10 A
- Size: 34mm*20mm*15mm (L*W*H)
Features:
- Low ripple and low noise
- Output overload and short circuit protection
- High efficiency, high power density
Applications:
- Automation and control
- Smart homes
- Communication equipment
