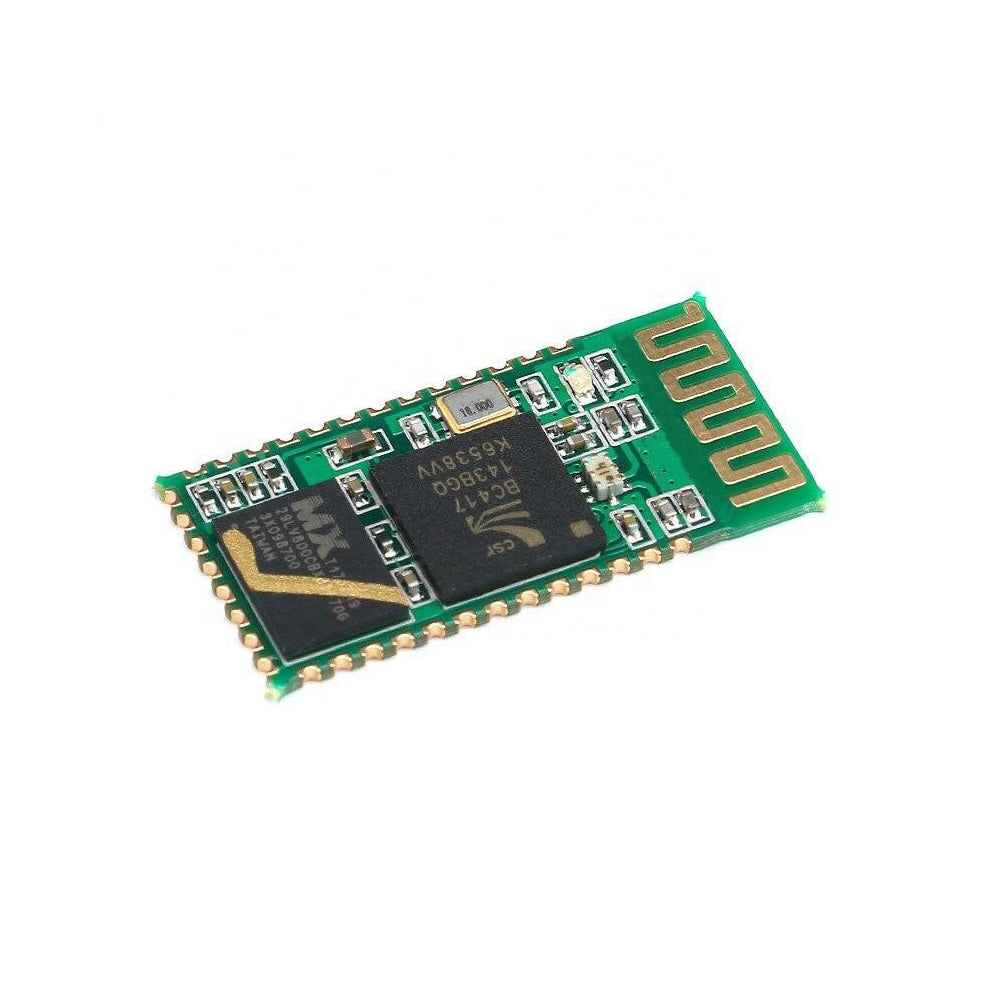

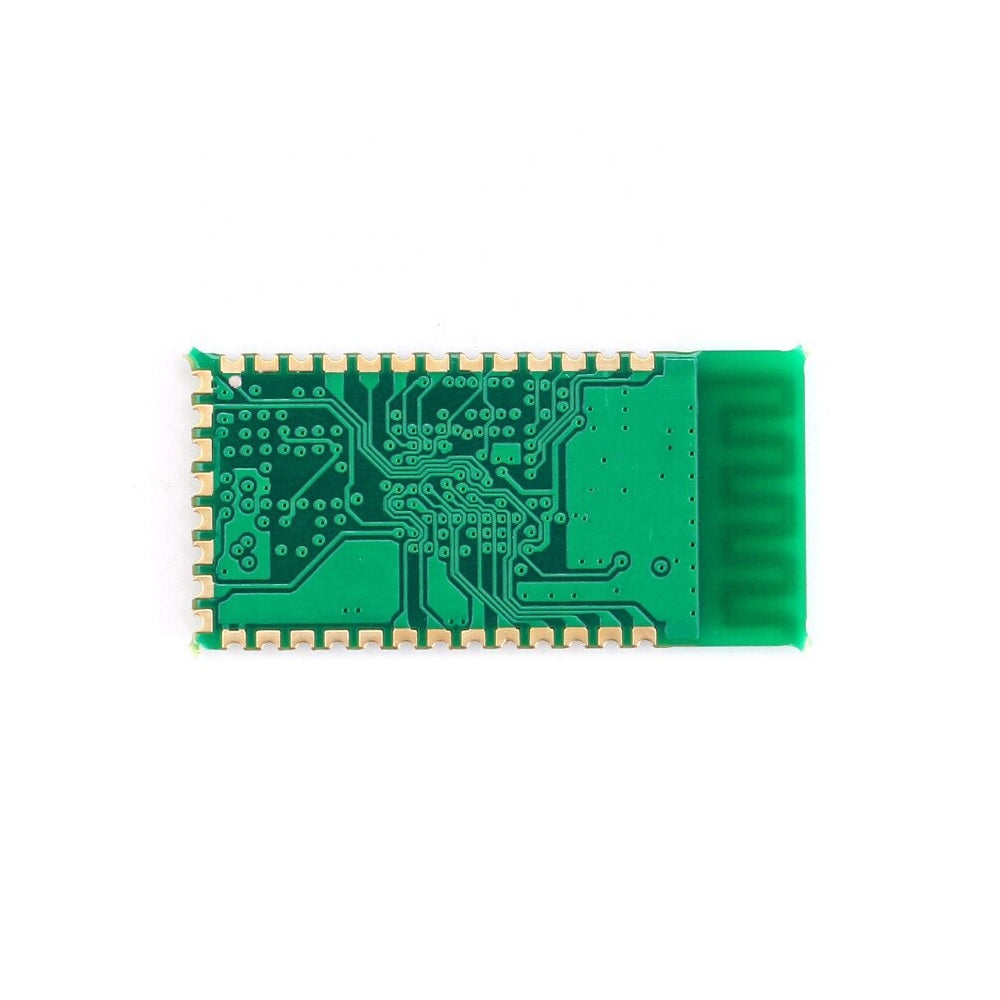

HC05 Serial Port Bluetooth Module Chip

SKU: VM00051

Sale price Rs. 610.17 (excl.18% GST)
Rs. 720.00


Bluetooth module (SMD) using chipsets BlueCore4 CSR. It has seven I/O ports, 8 Mbit flash memory for software storage and two modes of operation: via AT commands and transparently. In transparent mode it can be configured as Master, Slave or Loopback, and can connect to other devices that support SPP. In the AT command mode, the user can configure the module and send commands. By controlling the logic level of pin PIO11, the user can activate the work mode between AT command and transparent.

Technical Specification:

  • Input Supply voltage (V): 3.6 ~ 6
  • Input current (mA): 50
  • Maximum Operating Range (m):10
  • Operating Frequency: 2.4GHz ISM band
  • Modulation: GFSK (Gaussian Frequency Shift Keying)
  • Emission power:4dBm, Class 2
  • Sensitivity: -84dBm at 0.1% BER
  • Operating Temperature (℃): -20 ~ +75
  • Size: 26.85mm*13.13mm*1.9mm (L*W*H)


  • With the computer and Bluetooth adapter, PDA, seamless connection equipment
  • Bluetooth module HC-08 Master and slave Two in one module
  • Use the CSR mainstream Bluetooth chip, Bluetooth V2.0 protocol standards
  • Potter default rate of 9600, the user can be set up


  • Embedded Projects
  • Industrial Applications
  • Computer and Portable Devices
  • MCU projects
  • GPS navigation system
  • Water and electricity gas meter reading system
