Description

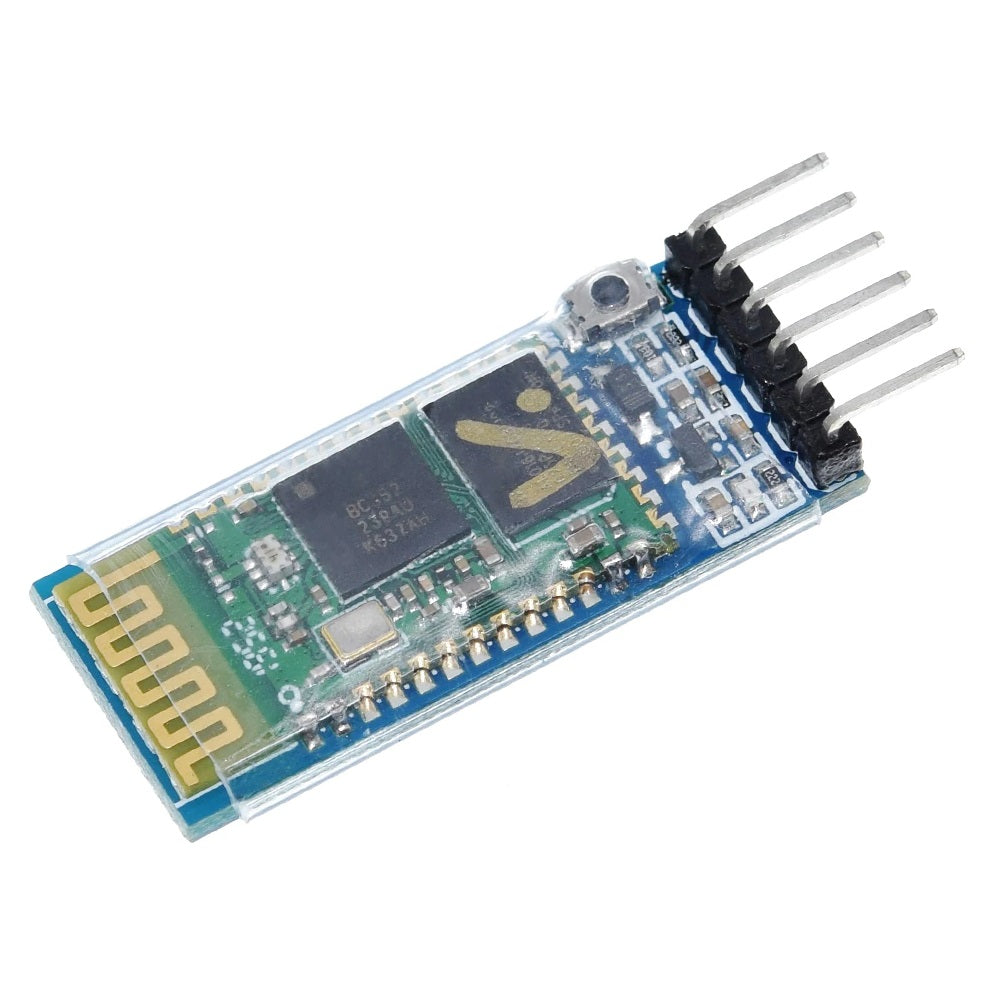

The HC-05 is a popular module which can add two-way (full-duplex) wireless functionality to your projects. You can use this module to communicate between two microcontrollers like Arduino or communicate with any device with Bluetooth functionality like a Phone or Laptop. There are many android applications that are already available which makes this process a lot easier. The module communicates with the help of USART at 9600 baud rate hence it is easy to interface with any microcontroller that supports USART.
Technical Specification:
- Operating Voltage: 4V to 6V
- Operating Current: 30mA
- Range: <100m
- UART interface with programmable baud rate
- Typical -80dBm sensitivity
- Up to +4dBm RF transmit power
- Low Power 1.8V Operation ,1.8 to 3.6V I/O
Features:
- Serial Bluetooth module for Arduino and other microcontrollers
- Works with Serial communication (USART) and TTL compatible
- Follows IEEE 802.15.1 standardized protocol
- Uses Frequency-Hopping Spread spectrum (FHSS)
- Can operate in Master, Slave or Master/Slave mode
- Can be easily interfaced with Laptop or Mobile phones with Bluetooth
- PIO control
- With integrated antenna
- With edge connector

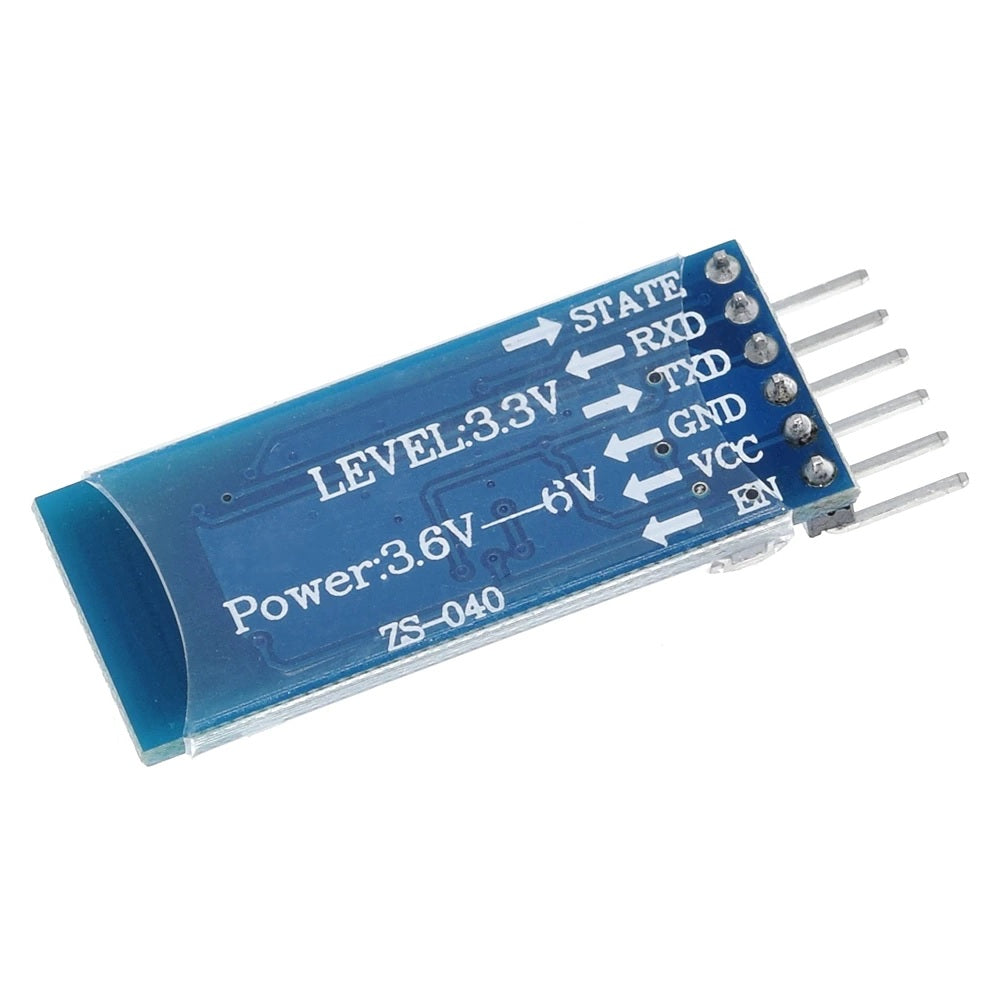

Pin Description:
Applications:
- Home Automation
- Wireless communications
- Data Logging application
- Wireless Robots
- Communication with remote devices
