Hand Swipe Sensor Switch Module

SKU: VM00940

Sale price Rs. 180.51 (excl.18% GST)
Rs. 213.00

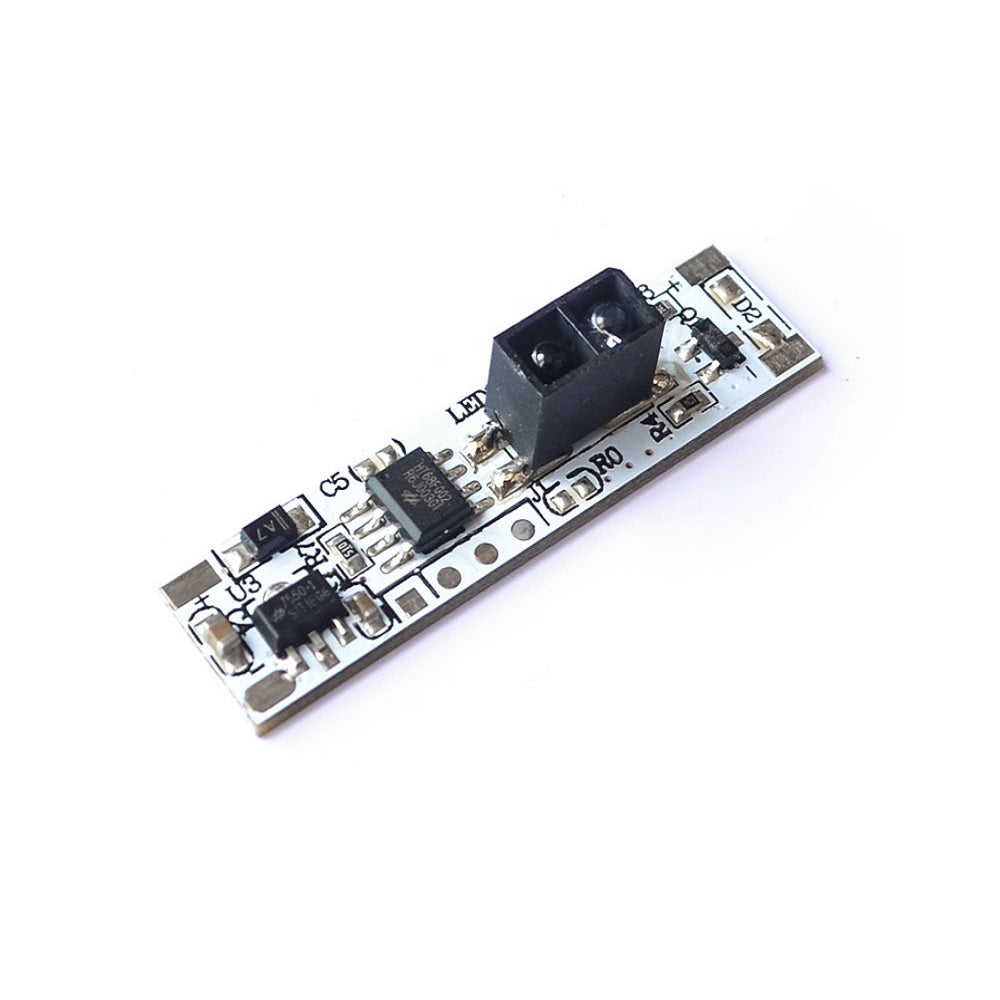

This is IR sensor-based switching module that functions ON and OFF by sweeping palm over it from 10 to 80 mm distance.

Technical Specification:

  • Total power: ≤ 72W
  • Input voltage: 5-24V (DC)
  • Output form: switch + indicator
  • Sensing distance: 30-80MM
  • Delay time: no sweeping on/off
  • Induction principle: infrared distance
  • Scope of application: DC constant voltage
  • Load current resistance: 3A
  • Standby current: 10-15mA
  • Size: 142mm*12mm*7.9mm (L*W*H)


  • sensitivity of the product can be customized, can penetrate plastic, acrylic, glass, ceramic, and another non-metallic medium, stable performance


  • Household applications
  • Automotive industrial appliances
