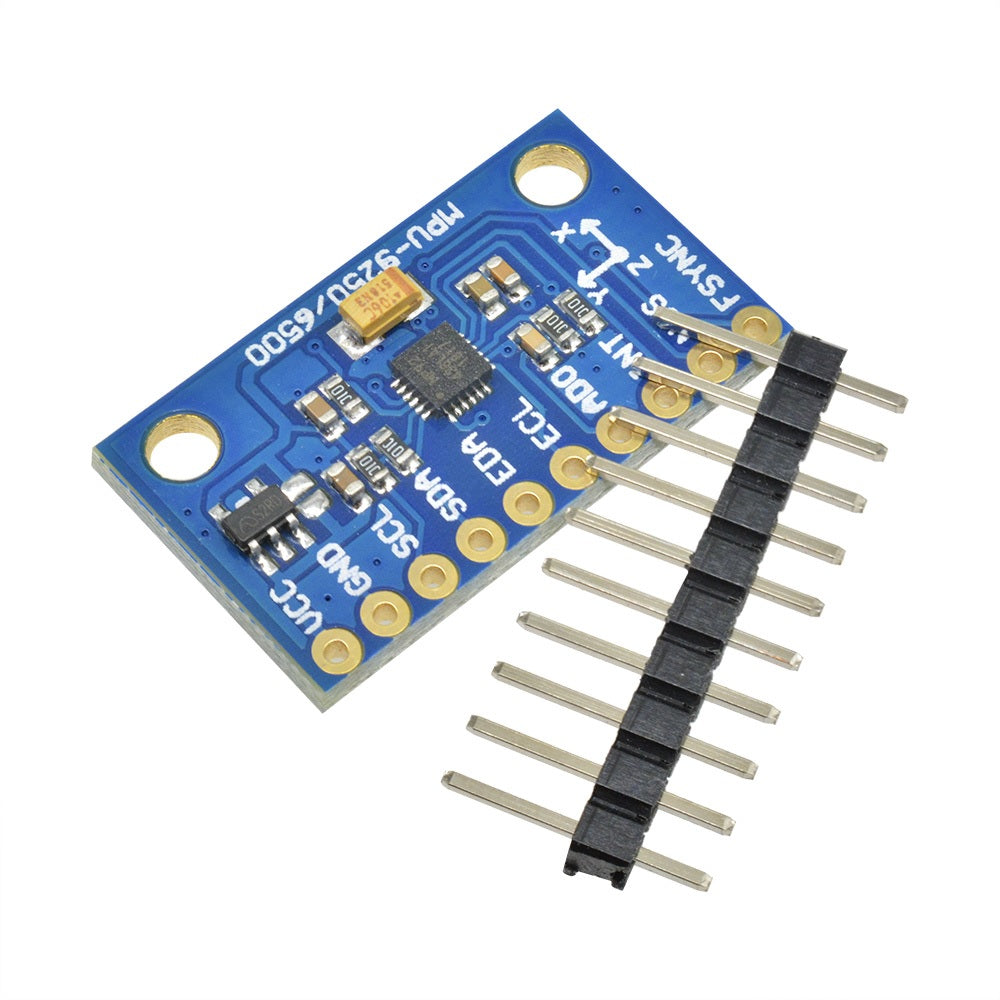

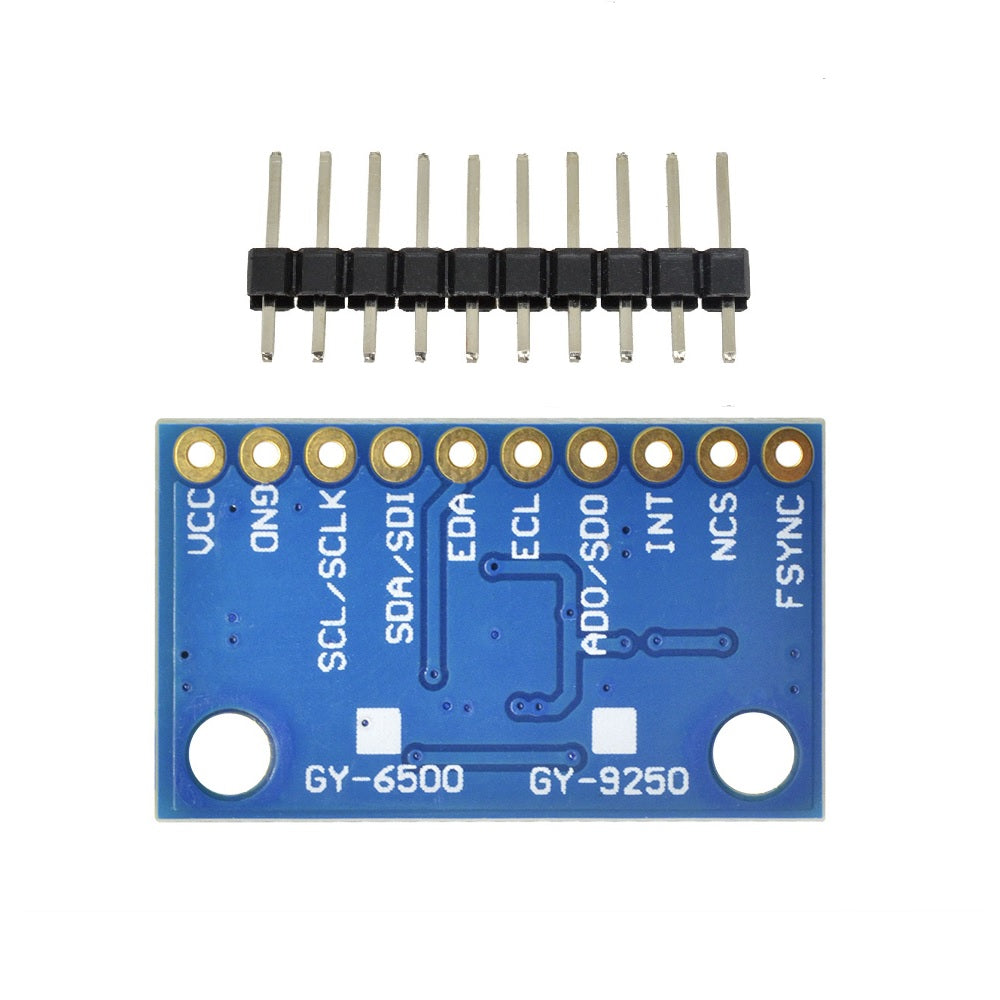

GY-9255 MPU9255 9DOF - 9 axis Gyroscope Accelerometer Magnetic Sensor Module

SKU: VM00858

Sale price Rs. 630.51 (excl.18% GST)
Rs. 744.00


The GY-9255 is a 9-axis MotionTracking device that combines a 3-axis gyroscope, 3-axis accelerometer, 3-axis magnetometer and a Digital motion processor. Based on the IC MPU-9255, which is the upgrade version of MPU9250. The new MPU-9255 is the company’s first generation 9-axis activity detection part, working in conjunction with the activity detection library. The InvenSense ‘AlwaysOn’ low power sensor can detect run, walk, bike, no-motion, and sleep analysis on a wrist worn wearable device.

Technical Specification:

  • Chip: MPU9255
  • Power supply: 3 V to 5 V
  • Communication: IIC
  • Output: 16 bit
  • Gyroscope range: ± 250 500 1000 2000 ° / s
  • Accelerometer range: ± 2, 4, 8, 16 G
  • Magnetometer range:  ± 4800
  • Dimensions: 15mm*25 mm (L*W*H)


  • As 3 sensors are integrated in one module, construction projects has never been easier
  • Module is small and very handy
  • Build-in ultra-low noise linear LDO voltage regulator
  • Built-in onboard filters, which reduce noise from the motor and other high current electronics.
  • All sensors connected to the I2C bus
  • Build-in the Logic level converter for I2C


  • Fitness Tracker applications
  • Wearable products
