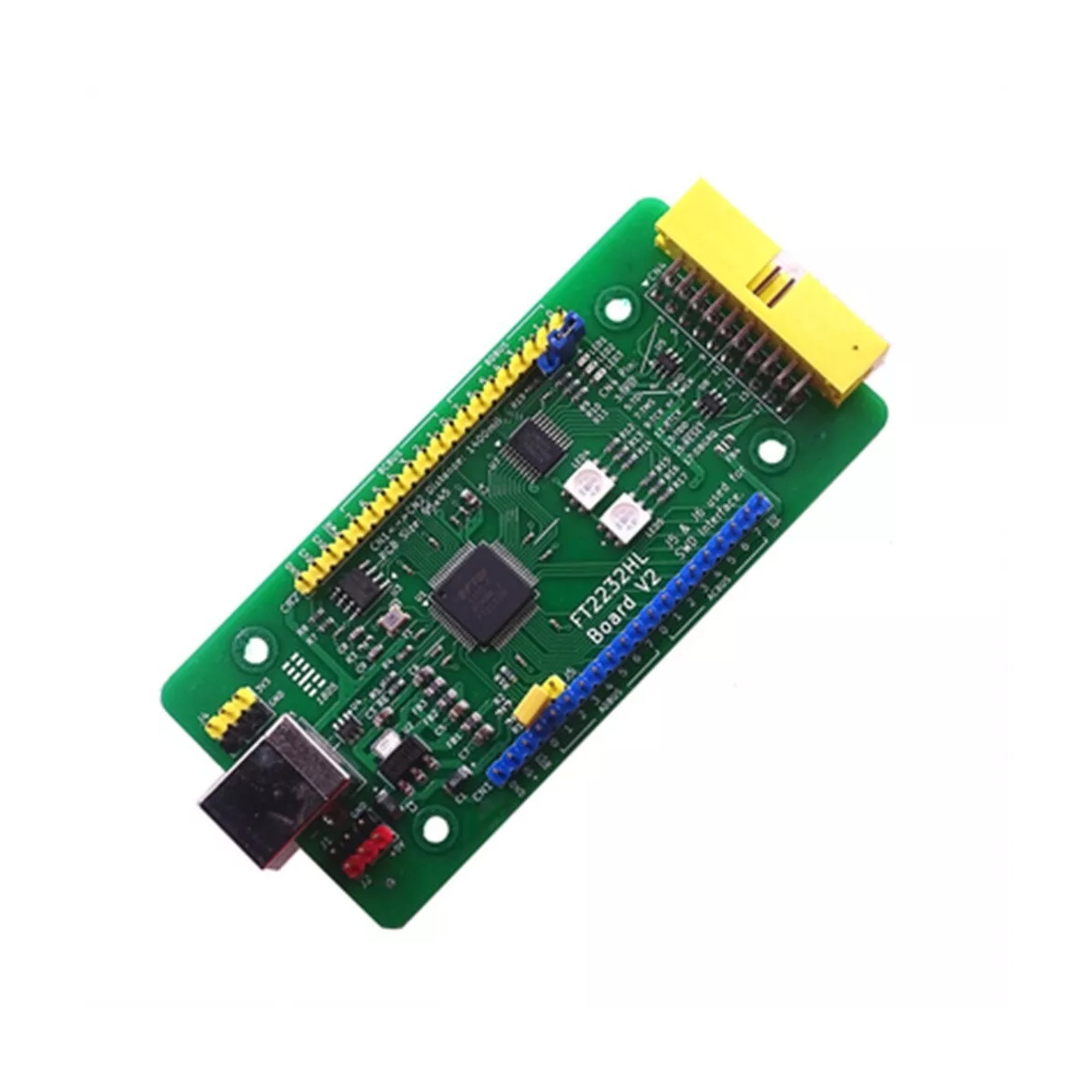

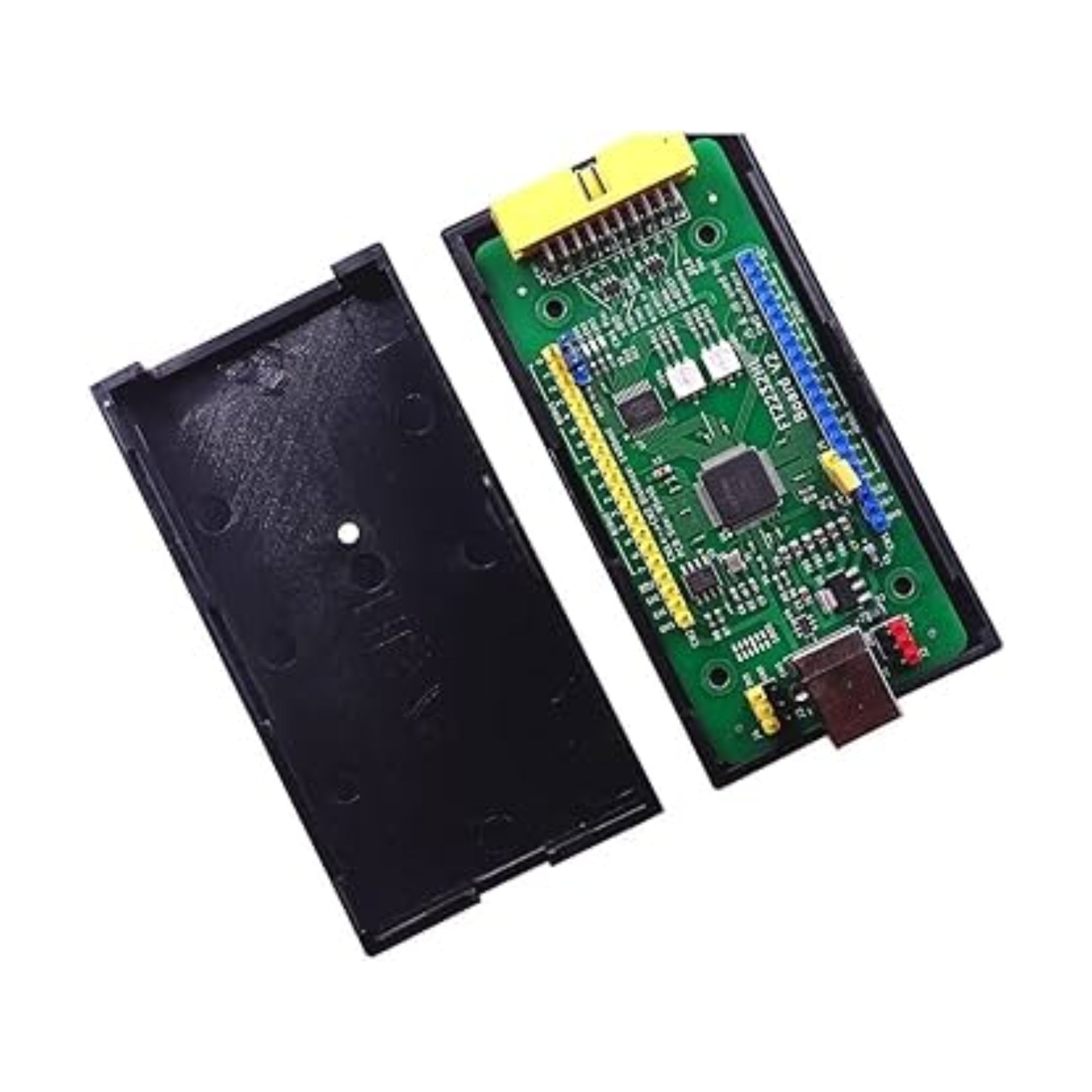

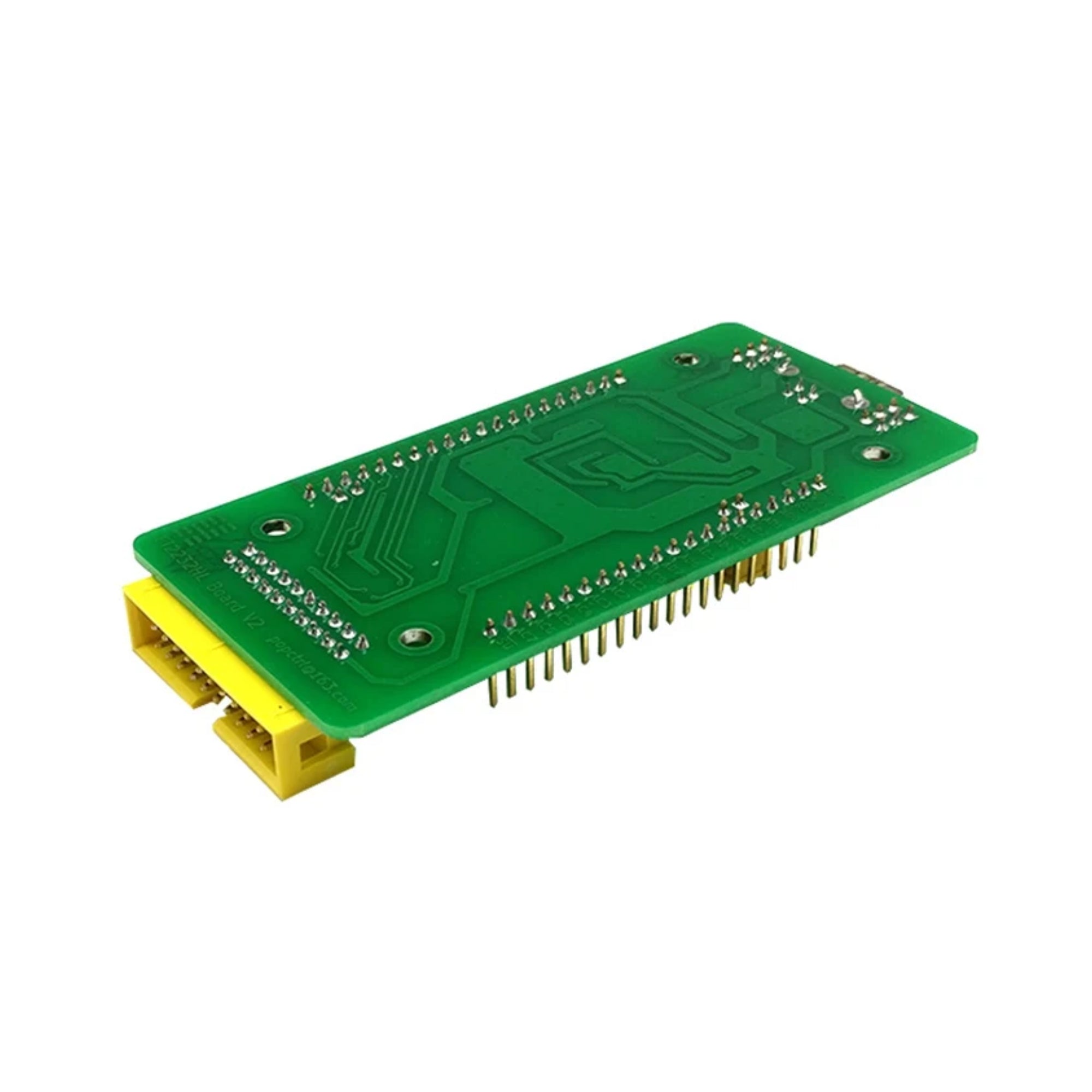

FT2232HL Development Board

The FT2232HL Development Board is a versatile USB interface development board based on the FTDI FT2232HL dual-channel USB 2.0 Hi-Speed controller. It provides two independent multi-purpose channels that can be configured for UART, FIFO, SPI, I²C, JTAG, or bit-bang modes. The board is designed for developers, engineers, and students who need a reliable USB-to-serial or USB-to-JTAG/SPI interface for debugging, programming, and communication with embedded systems. It is widely used for FPGA, MCU, and processor development.

Technical Specifications:

• Controller IC: FTDI FT2232HL
• USB Interface: USB 2.0 Hi-Speed (480 Mbps)
• Channels: Dual independent channels (Channel A & B)
• Operating Voltage: 5 V from USB
• I/O Voltage: 1.8 V / 3.3 V / 5 V (selectable via onboard configuration)
• Supported Modes: UART, FIFO, SPI, I²C, JTAG, Bit-Bang
• USB Connector: USB Type-B
• On-board Components: EEPROM, voltage regulators, LEDs, jumpers
• Header Pins: Exposed I/O pins for both channels
• OS Support: Windows, Linux, macOS
• Driver Support: FTDI VCP and D2XX drivers

Features:

• Dual-channel USB interface on a single board
• High-speed USB 2.0 communication
• Supports multiple communication protocols
• Ideal for JTAG and SPI based debugging
• On-board LEDs for status indication
• Flexible I/O voltage support
• Plug-and-play with FTDI drivers
• Robust design suitable for development and testing

Applications:

• FPGA programming and debugging
• Microcontroller communication and flashing
• JTAG interface for embedded systems
• USB-to-UART, USB-to-SPI, USB-to-I²C converters
• Industrial and automotive electronics development
• Embedded system prototyping
• Educational and research projects
