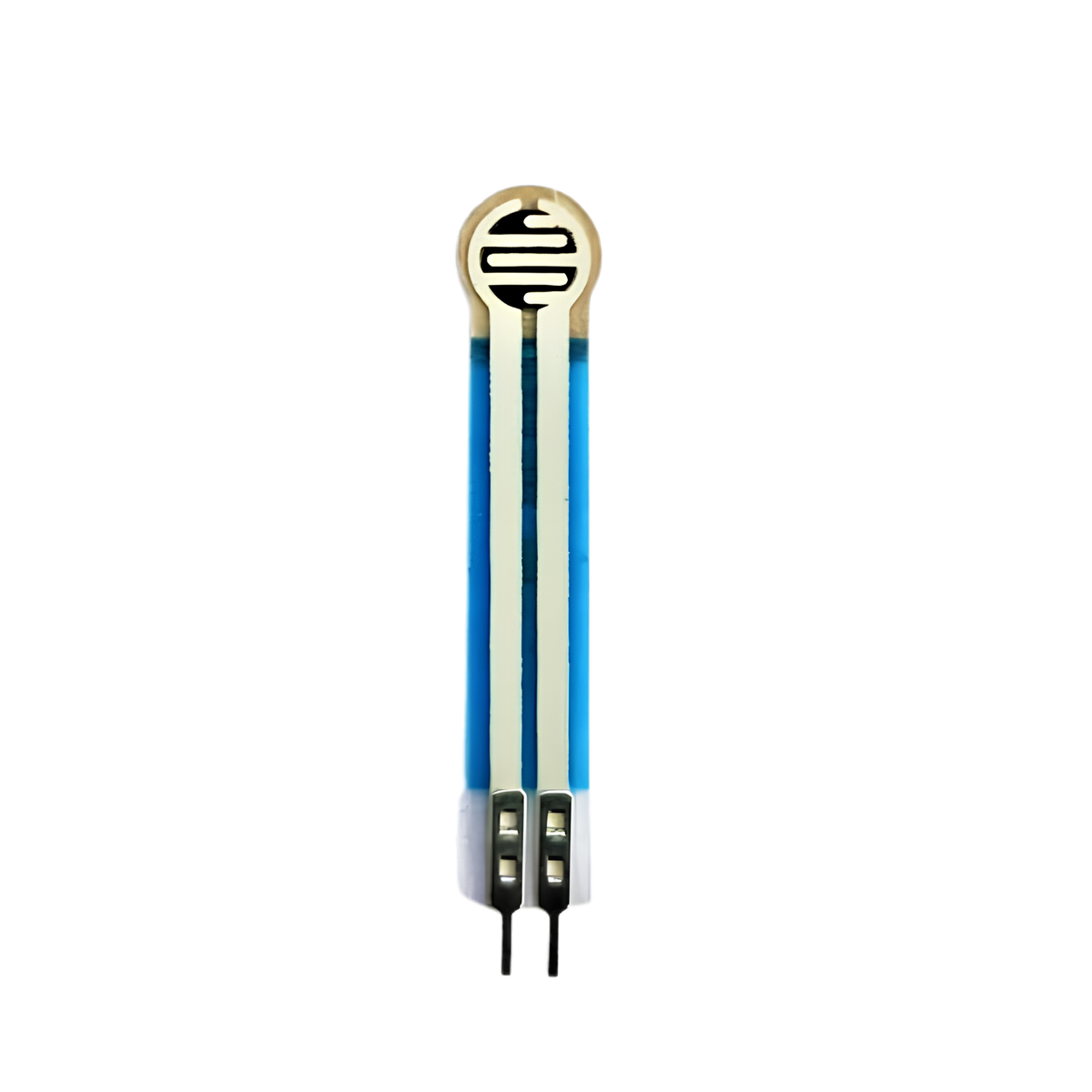

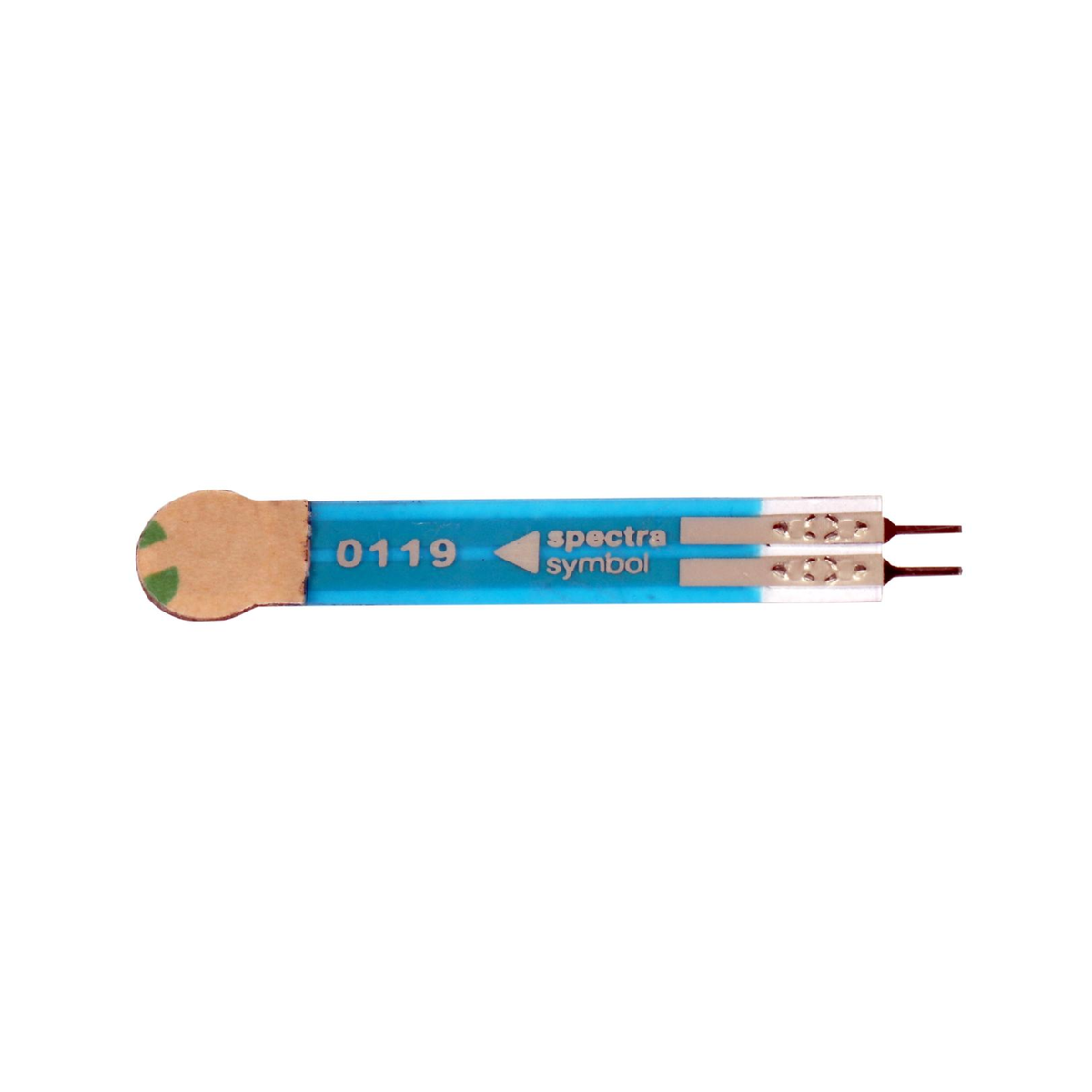

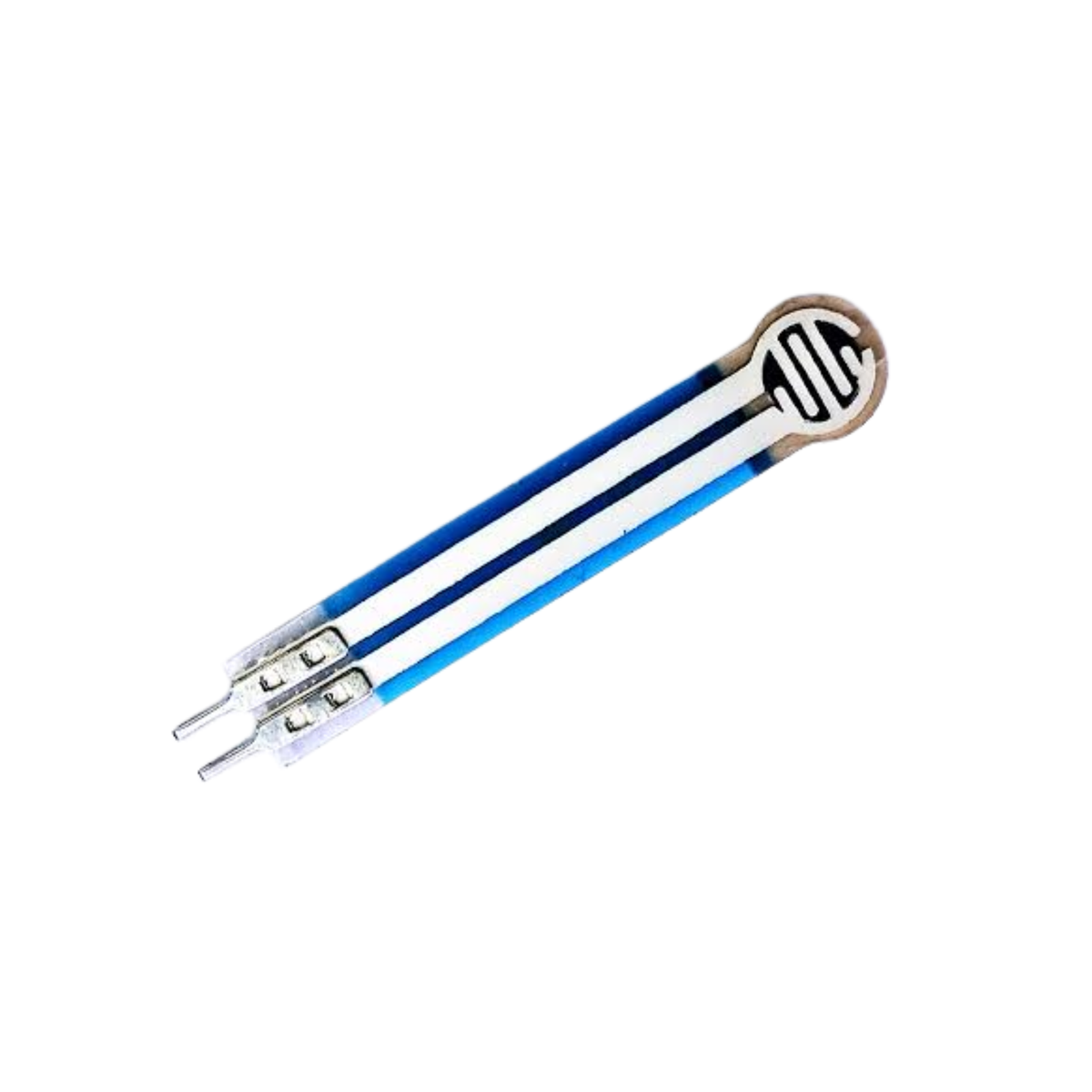

The Force Sensor 5.08mm Circle is a compact force-sensitive resistor designed to detect pressure, touch and applied force. Its electrical resistance decreases as greater force is applied to the circular sensing area, allowing the sensor to be easily interfaced with microcontrollers and analog measurement circuits. The thin and flexible construction makes it suitable for applications where space is limited and simple force or pressure detection is required.

Technical Features:

• Sensor Type: Force Sensitive Resistor (FSR)
• Active Sensing Area: 5.08mm Diameter
• Nominal Thickness: 0.30mm
• Switch Travel: Approximately 0.05mm
• Actuation Force: Approximately 0.2N
• Force Sensitivity Range: Up to approximately 20N
• Output: Variable Resistance
• Connection: 2-Terminal

Features:

• Resistance decreases as applied force increases
• Small 5.08mm circular sensing area
• Ultra-thin and lightweight construction
• Simple two-terminal interface
• Easy integration with microcontrollers and analog circuits
• Suitable for touch, pressure and force detection
• Durable construction supporting repeated operation
• Compact design suitable for space-constrained projects

Applications:

• Touch and pressure sensing
• Human-machine interface systems
• Robotics and automation projects
• Electronic switches and controls
• Force detection systems
• Consumer electronics
• Medical and rehabilitation devices
• DIY and embedded electronics projects
