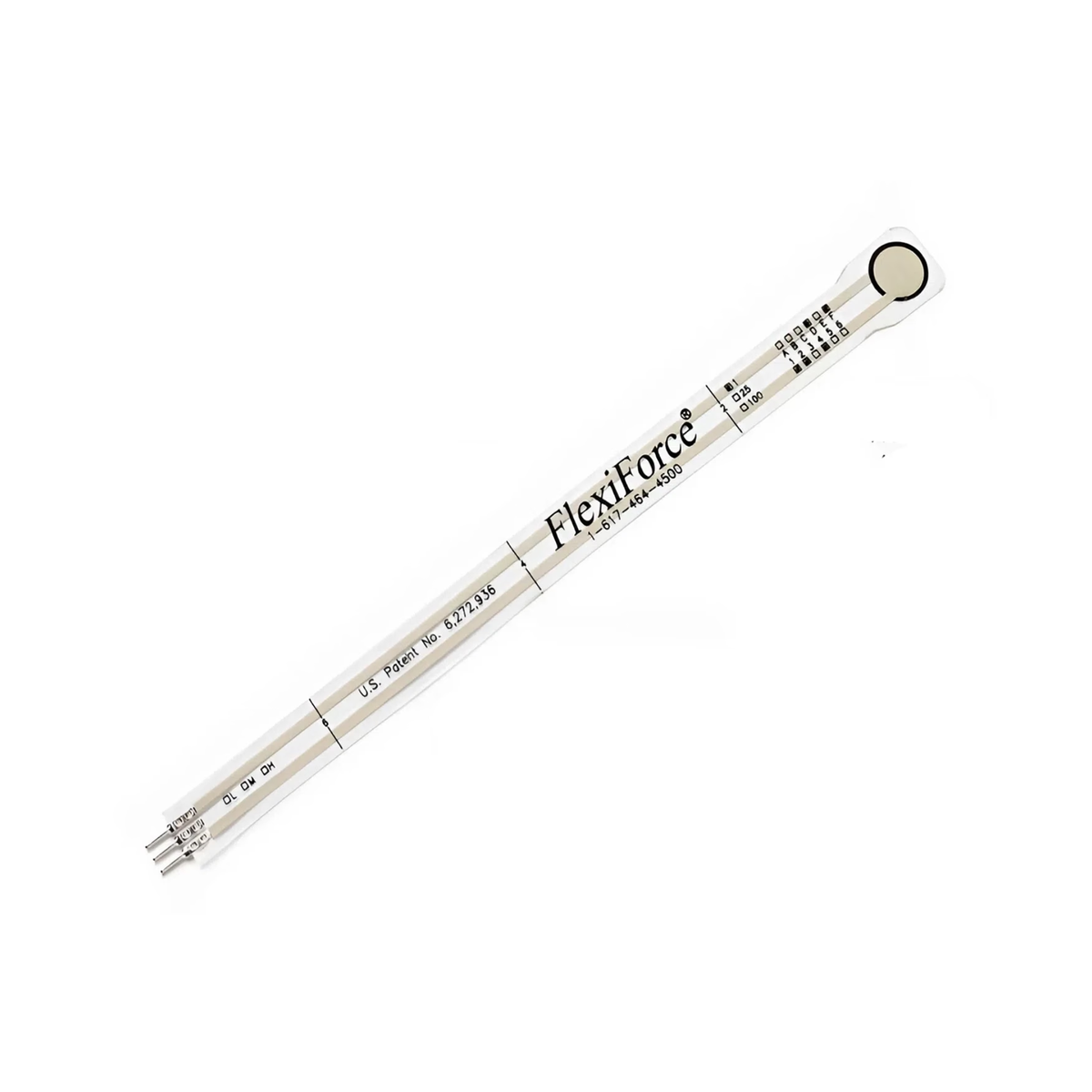

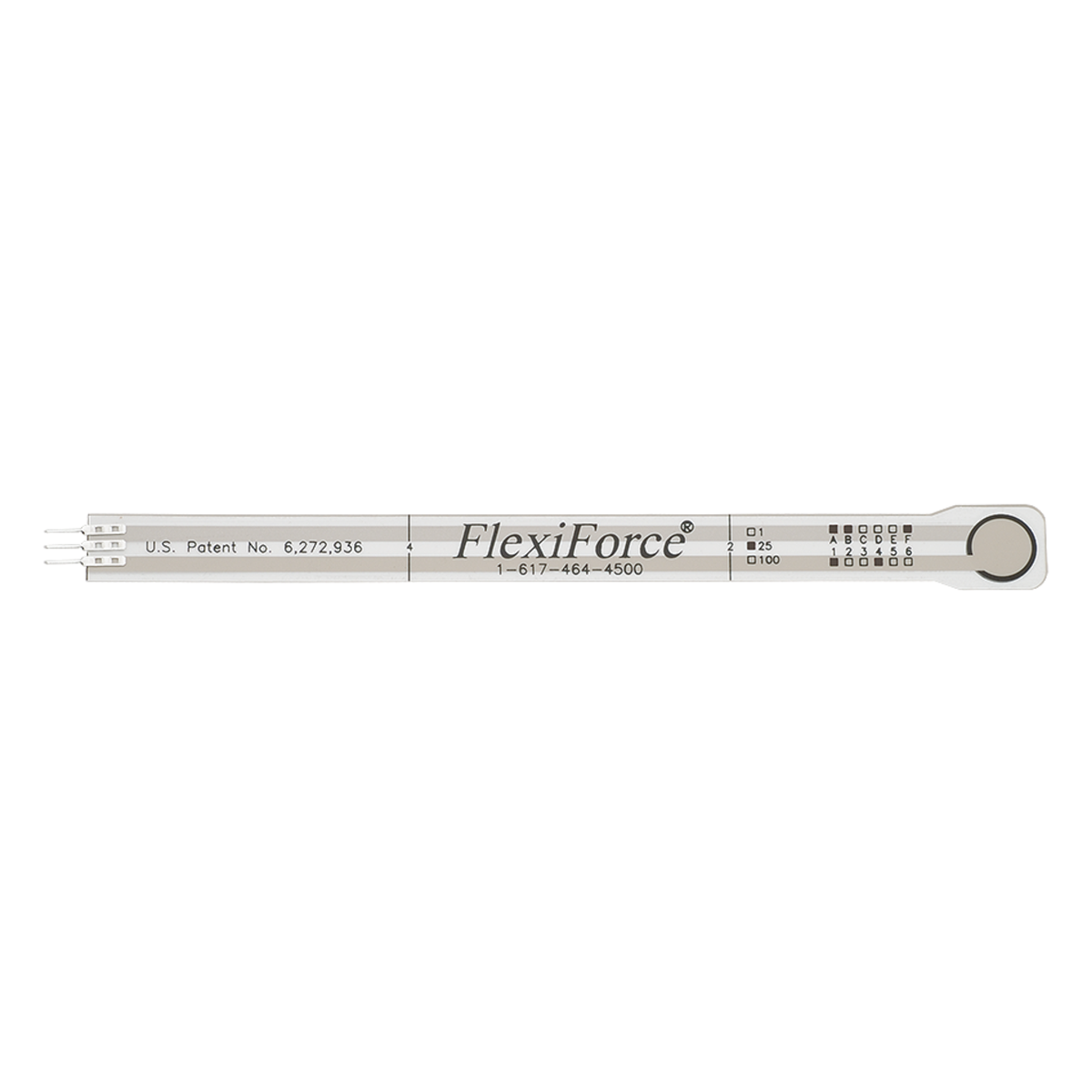

The FlexiForce A201-25 Force Sensor is a thin and flexible force-sensitive resistor designed for measuring applied force and pressure between two surfaces. This version provides a standard force measurement range of approximately 0 to 25 lb (111 N). As force is applied to the sensing area, the electrical resistance of the sensor decreases, allowing the applied force to be measured using suitable signal-conditioning electronics. Its slim profile and flexible construction make it suitable for prototyping, embedded systems, robotics and OEM force-sensing applications.

Technical Features:

• Model: FlexiForce A201-25
• Sensor Type: Force Sensitive Resistor
• Standard Force Range: 0 to 25 lb (Approximately 111 N)
• Sensing Area Diameter: 9.53mm (0.375 inch)
• Sensor Thickness: Approximately 0.203mm (0.008 inch)
• Response Time: Less than 5 µs
• Operating Temperature: -40°C to +60°C
• Connection Type: 3-Pin Male Connector
• No-Load Resistance: Typically Greater Than 5MΩ
• Full-Load Resistance: Approximately 5kΩ

Features:

• Ultra-thin and flexible force sensing design
• Measures force up to approximately 25 lb
• Fast response for dynamic force measurements
• Resistance changes according to applied force
• Compact circular sensing area
• Sensor length can be trimmed for integration requirements
• Suitable for integration with analog signal conditioning circuits
• Easy to incorporate into prototypes and embedded systems

Applications:

• Force and pressure measurement systems
• Robotics and automation
• Human-machine interface devices
• Medical and rehabilitation equipment
• Industrial equipment monitoring
• Load and contact detection
• Embedded electronic products
• Research, testing and prototyping
