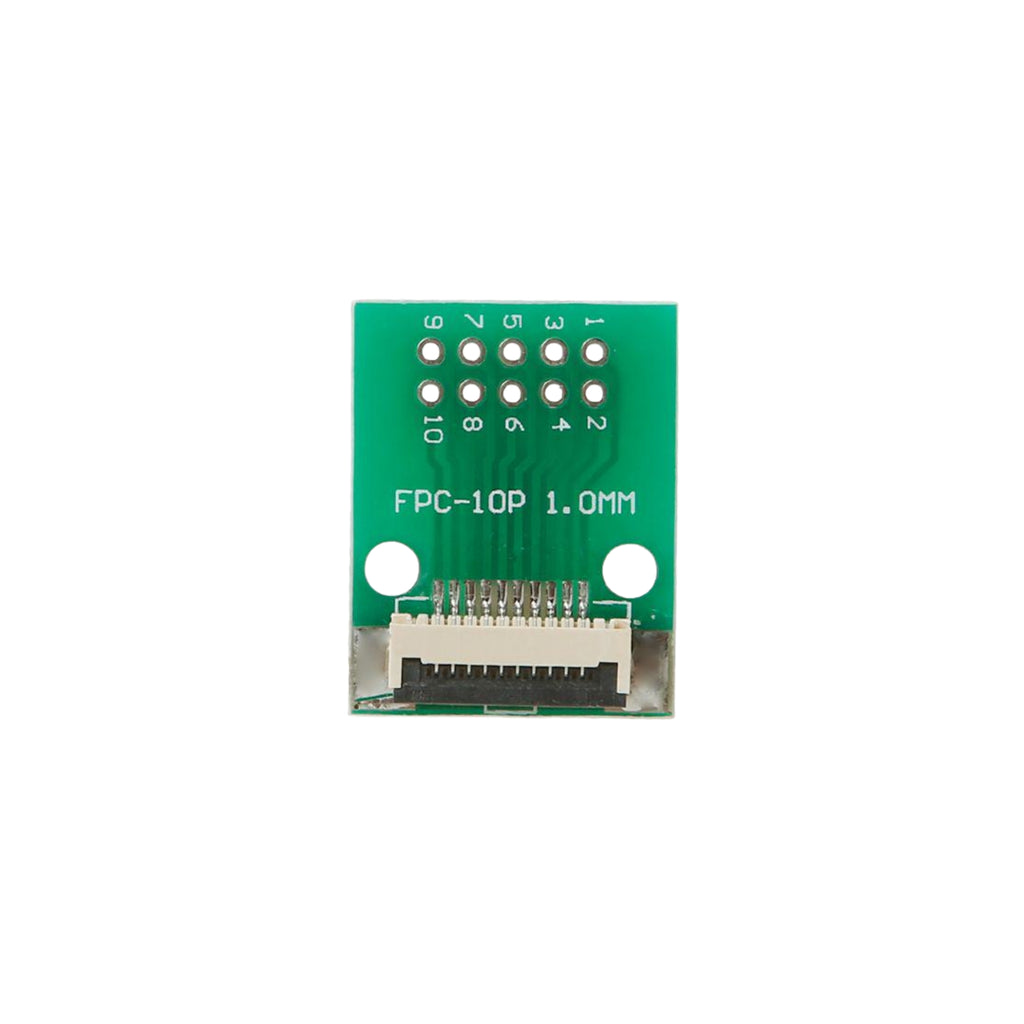

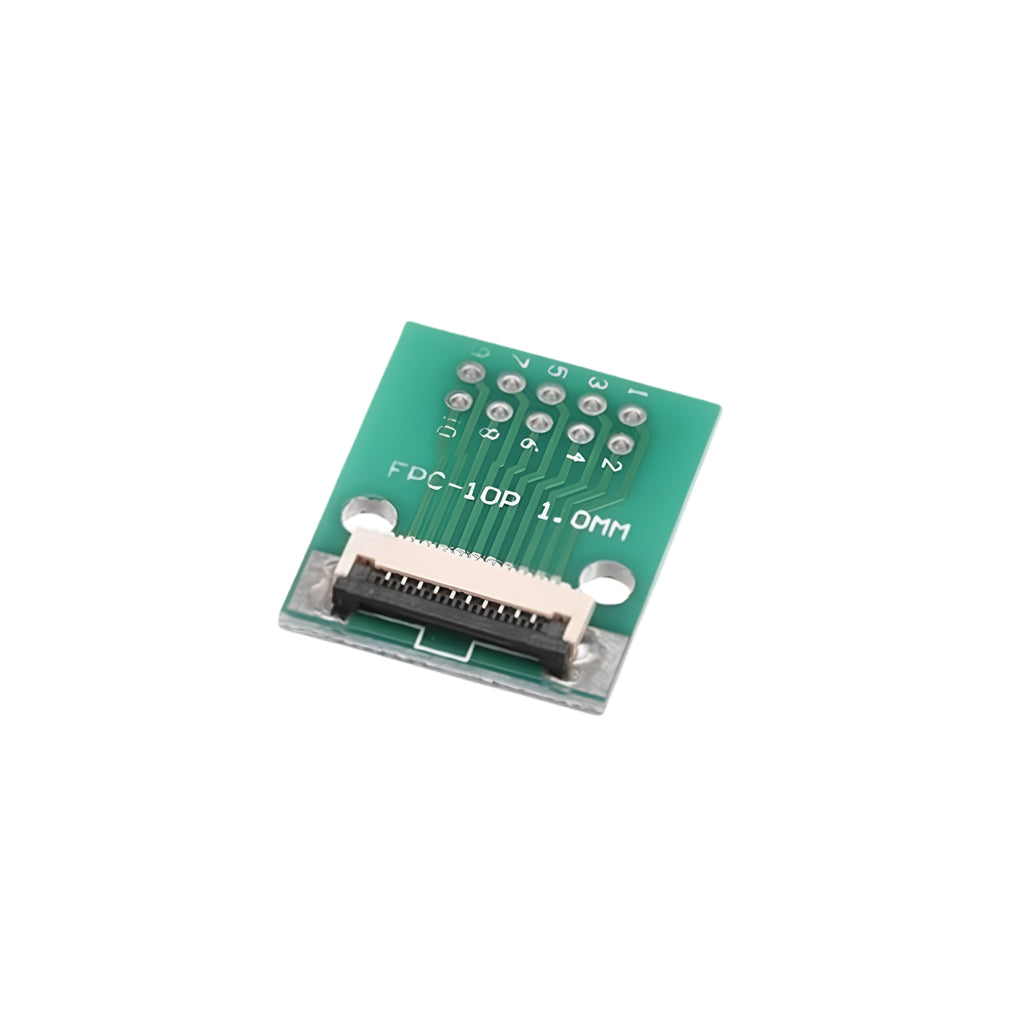

FFC / FPC 10 Pin Adapter Board 1mm to 2.54mm Soldered Connector

The 10P 1mm FFC/FPC Breakout Board is a compact adapter module designed to simplify interfacing with 10-pin Flat Flexible Cable (FFC) and Flexible Printed Circuit (FPC) connectors having a 1.0mm pitch. The board converts the fine-pitch ribbon cable connections into clearly labeled through-hole breakout pads, making prototyping, testing, and embedded hardware development easier.

This breakout board is commonly used in LCD interfaces, camera modules, touch panels, printers, embedded systems, and compact electronic devices where FFC/FPC ribbon cables are used.

Technical Specifications:

• Connector Type: FFC / FPC Connector
• Number of Pins: 10 Pins
• Pitch Size: 1.0mm
• Board Type: Breakout / Adapter PCB
• Mounting Style: Surface-mount connector with through-hole breakout pads
• Pin Access: Clearly numbered solder pads (1–10)
• PCB Material: FR4 fiberglass PCB
• Connector Orientation: Horizontal flip-lock type
• Contact Type: Bottom-contact FFC/FPC connector

Features:

• Converts fine-pitch FFC/FPC connector to standard solder pads
• Easy prototyping and debugging
• Clearly labeled pin numbering
• Compact and lightweight design
• Supports 10-pin ribbon cables
• Reliable flip-lock connector mechanism
• Ideal for custom electronics and repair work
• Compatible with many LCD and camera interfaces
• Durable FR4 PCB construction
• Easy integration into breadboard or custom PCB systems

Applications:

• LCD display interfacing
• Camera module connections
• Touchscreen controller breakout
• Embedded hardware development
• Ribbon cable prototyping
• DIY electronics projects
• Industrial control systems
• Printer and scanner repairs
• Robotics and automation projects
• Signal breakout and testing applications
