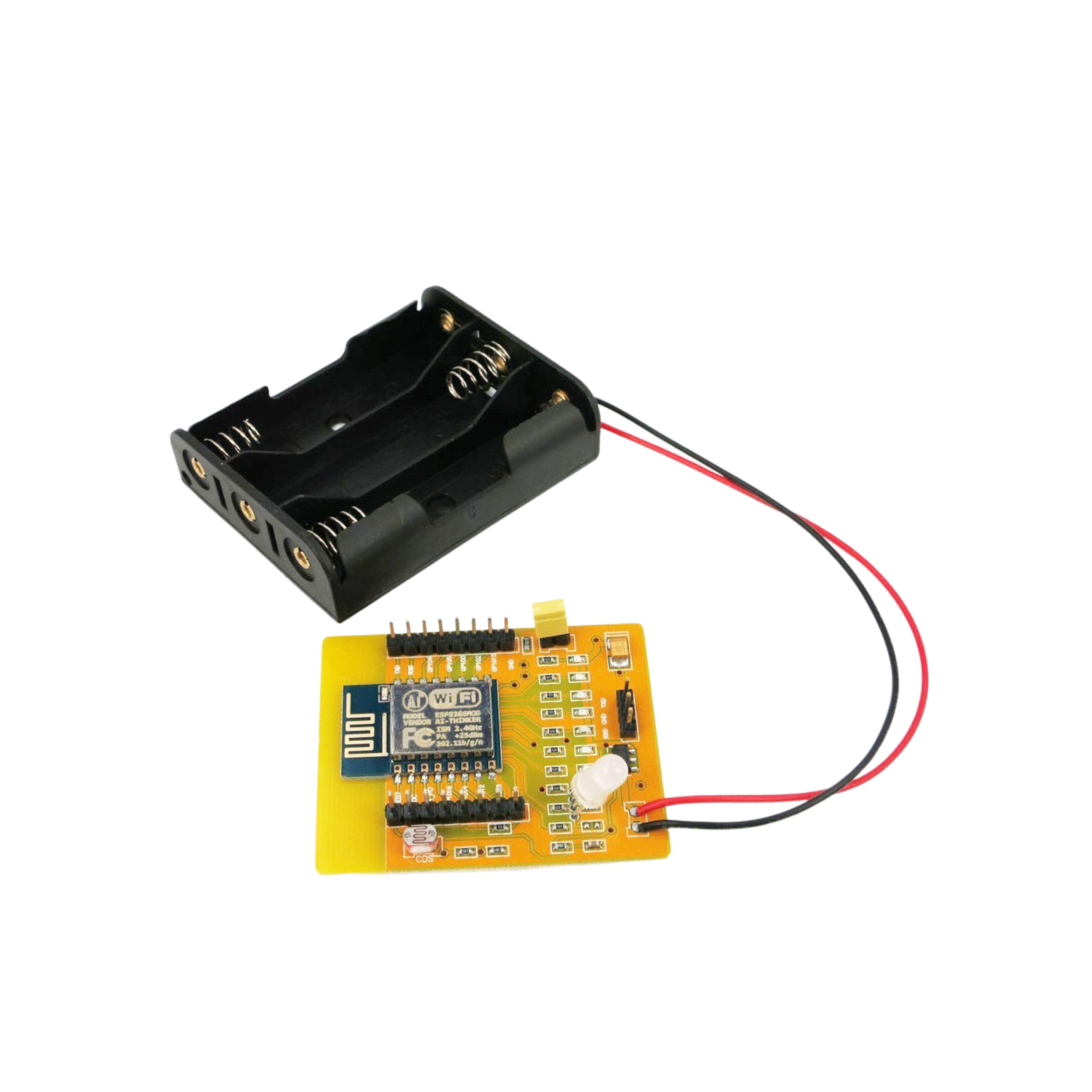

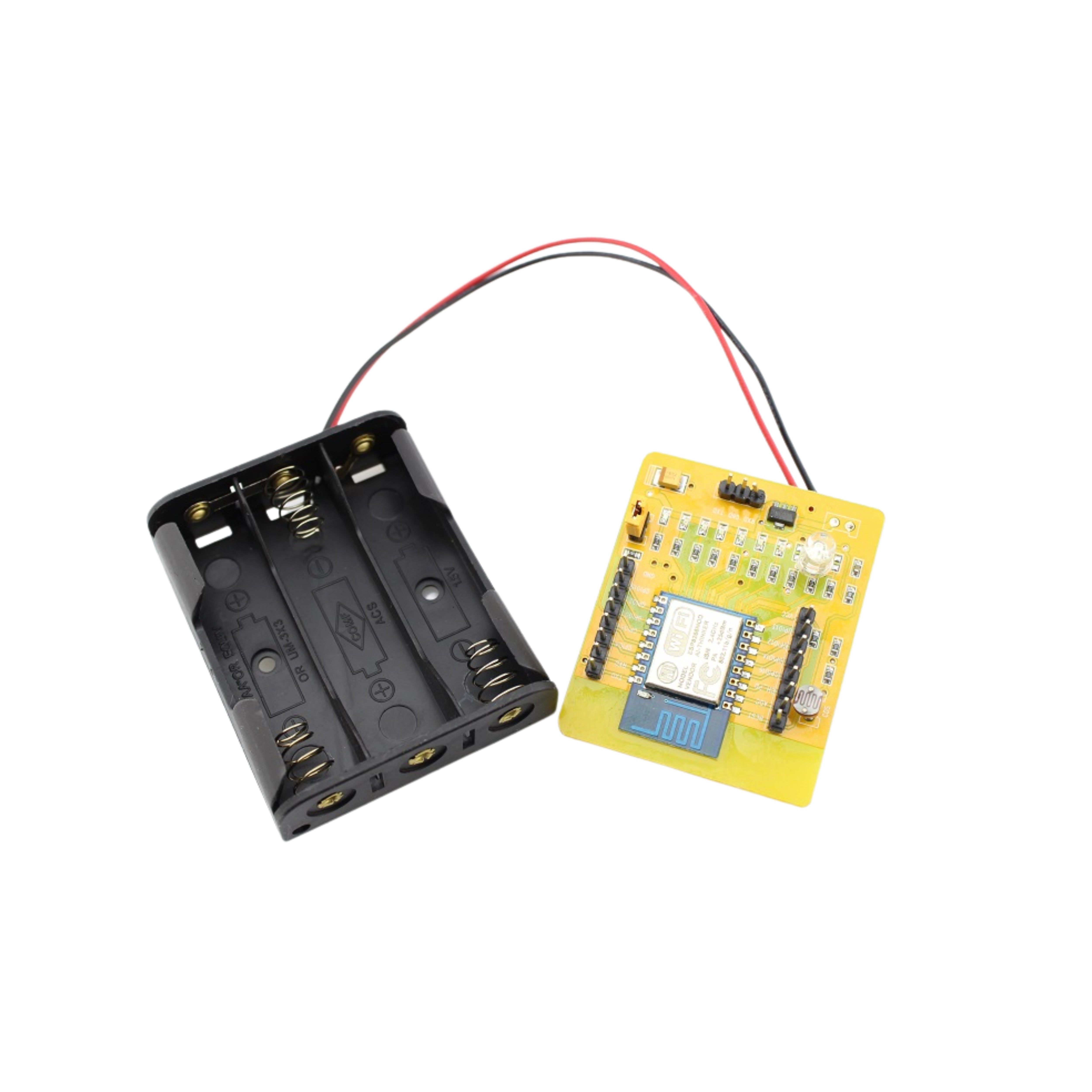

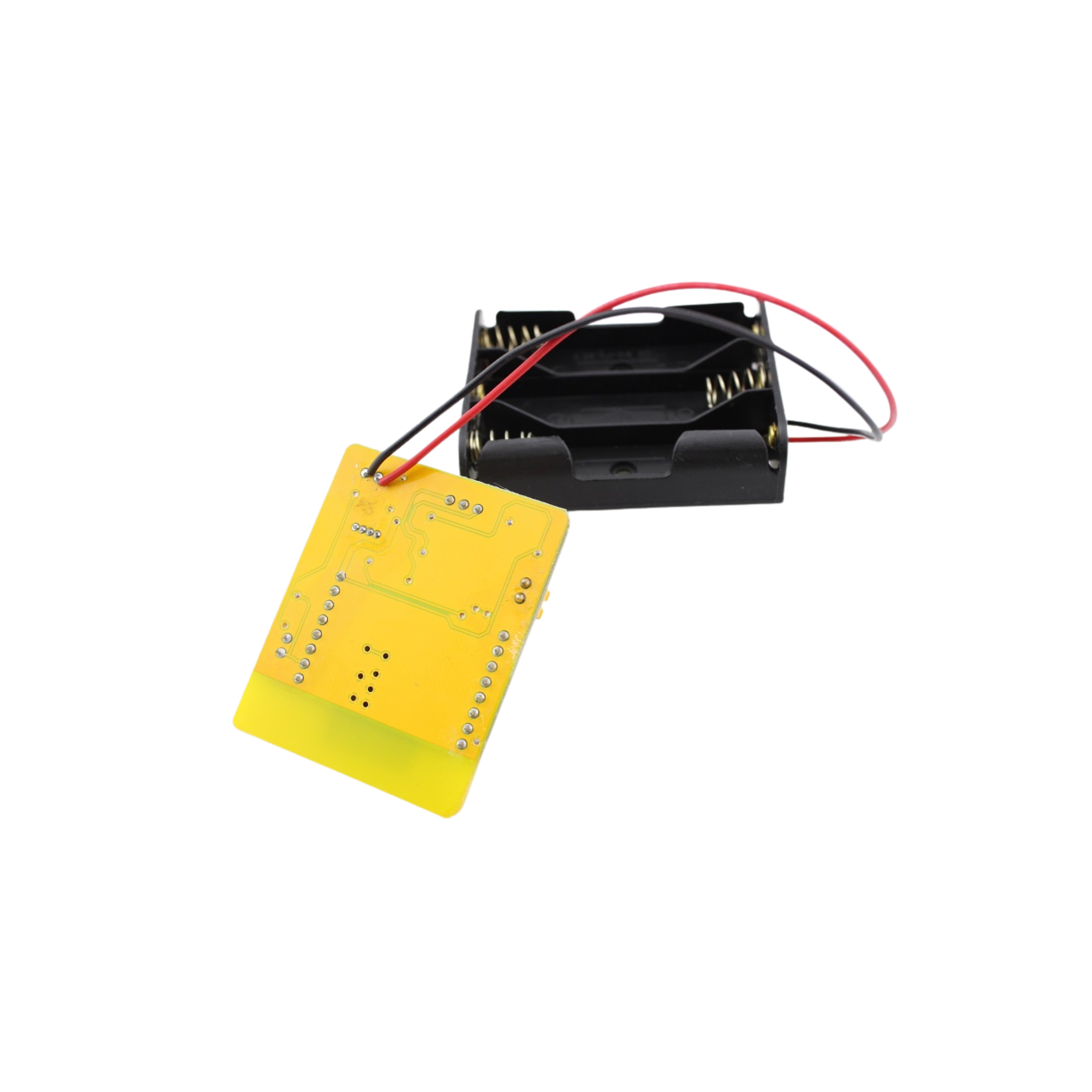

ESP8266 Evaluation Board ESP-12

The ESP8266 Evaluation Board is a compact Wi-Fi development platform built around the ESP8266 Wi-Fi SoC module. It is designed for wireless communication, IoT applications, and embedded system development. The board provides easy access to GPIO pins and includes a battery holder for portable operation, making it ideal for prototyping and learning wireless microcontroller programming.

The ESP8266 module integrates a TCP/IP stack and supports Wi-Fi networking, enabling devices to connect to the internet or local networks with minimal external components.

Technical Specifications:

• Main Controller: ESP8266 Wi-Fi Module

• Wi-Fi Standard: IEEE 802.11 b/g/n

• Operating Voltage: 3.3V DC

• Power Supply: Battery holder support or external DC supply

• Frequency Range: 2.4GHz Wi-Fi band

• GPIO Pins: Multiple programmable GPIOs available

• Communication Interfaces: UART, SPI, I2C (software support), PWM

• Flash Memory: Integrated onboard flash memory

• Wireless Modes: Station (STA), Access Point (AP), STA+AP

• Programming Support: Arduino IDE, NodeMCU, AT commands, MicroPython

• PCB Type: Compact evaluation/development board

Features:

• Integrated ESP8266 Wi-Fi module

• Supports wireless internet and LAN connectivity

• Compact design with battery holder support

• Low power consumption suitable for portable projects

• GPIO breakout headers for easy interfacing

• Supports serial communication and firmware programming

• Compatible with Arduino IDE and IoT platforms

• Can function as both Wi-Fi client and access point

• Suitable for rapid IoT prototyping and experimentation

Applications:

• IoT and smart home projects

• Wireless sensor networks

• Home automation systems

• Remote monitoring and control systems

• Wi-Fi-enabled embedded applications

• Educational and electronics learning projects

• Battery-powered wireless devices

• Data logging and cloud connectivity applications
