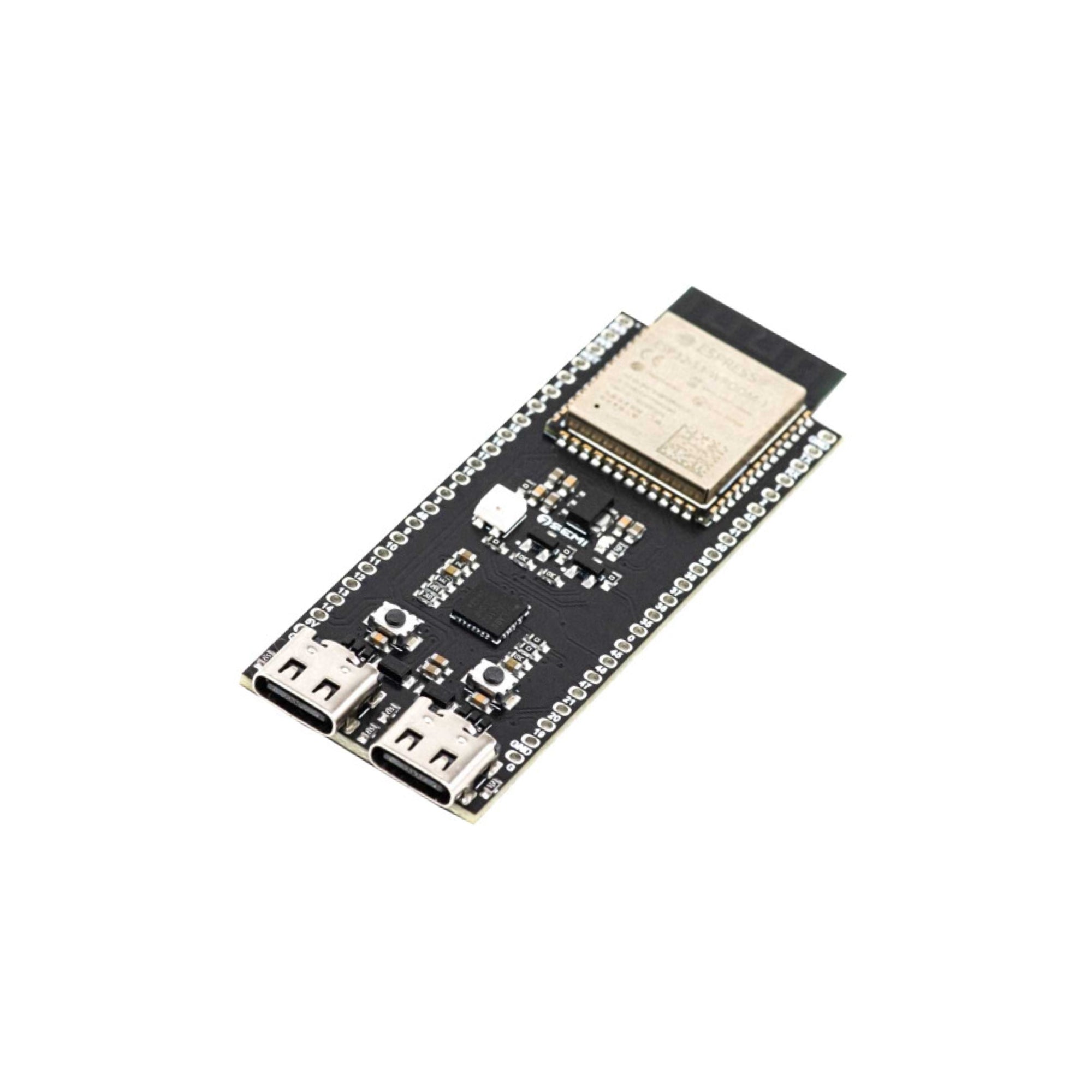

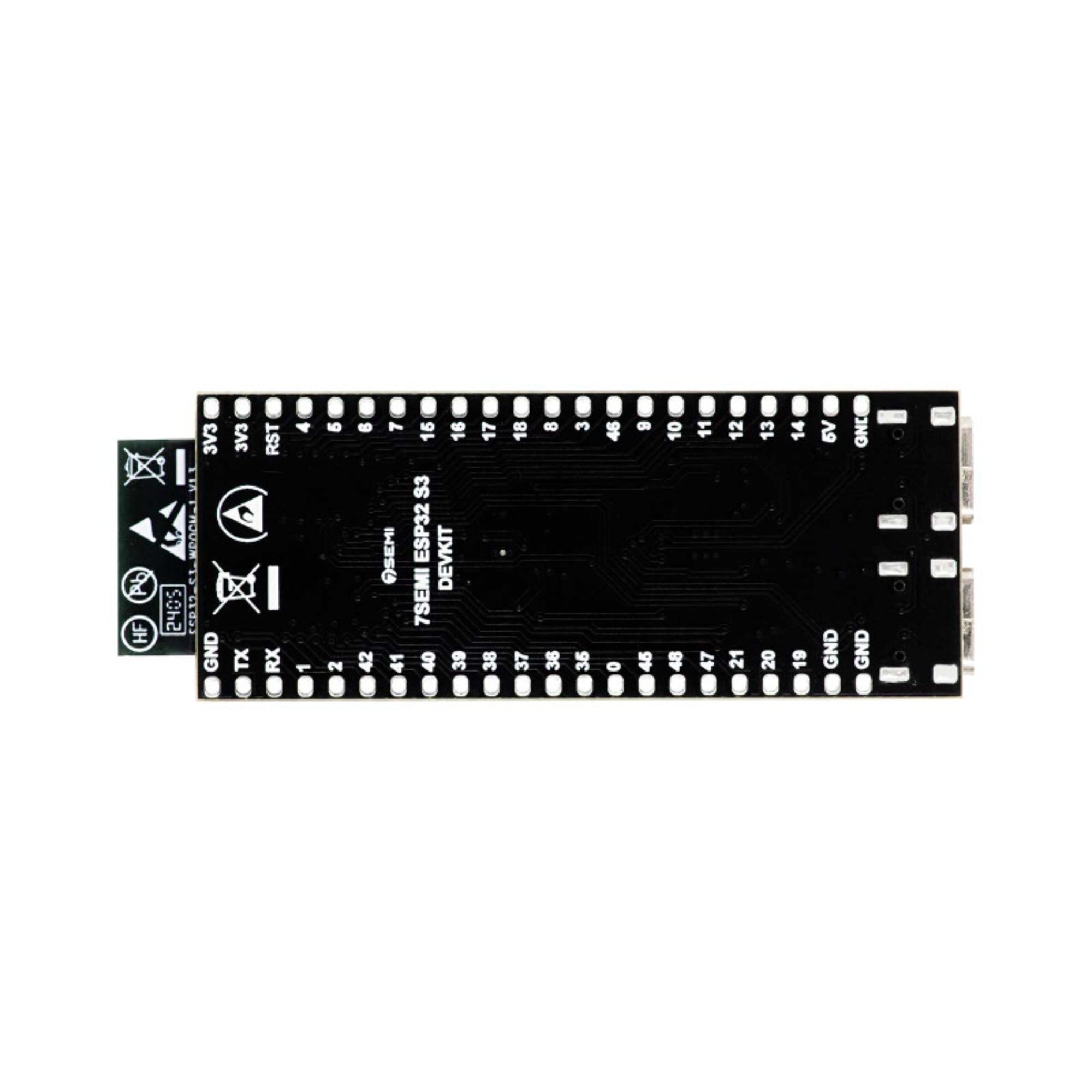

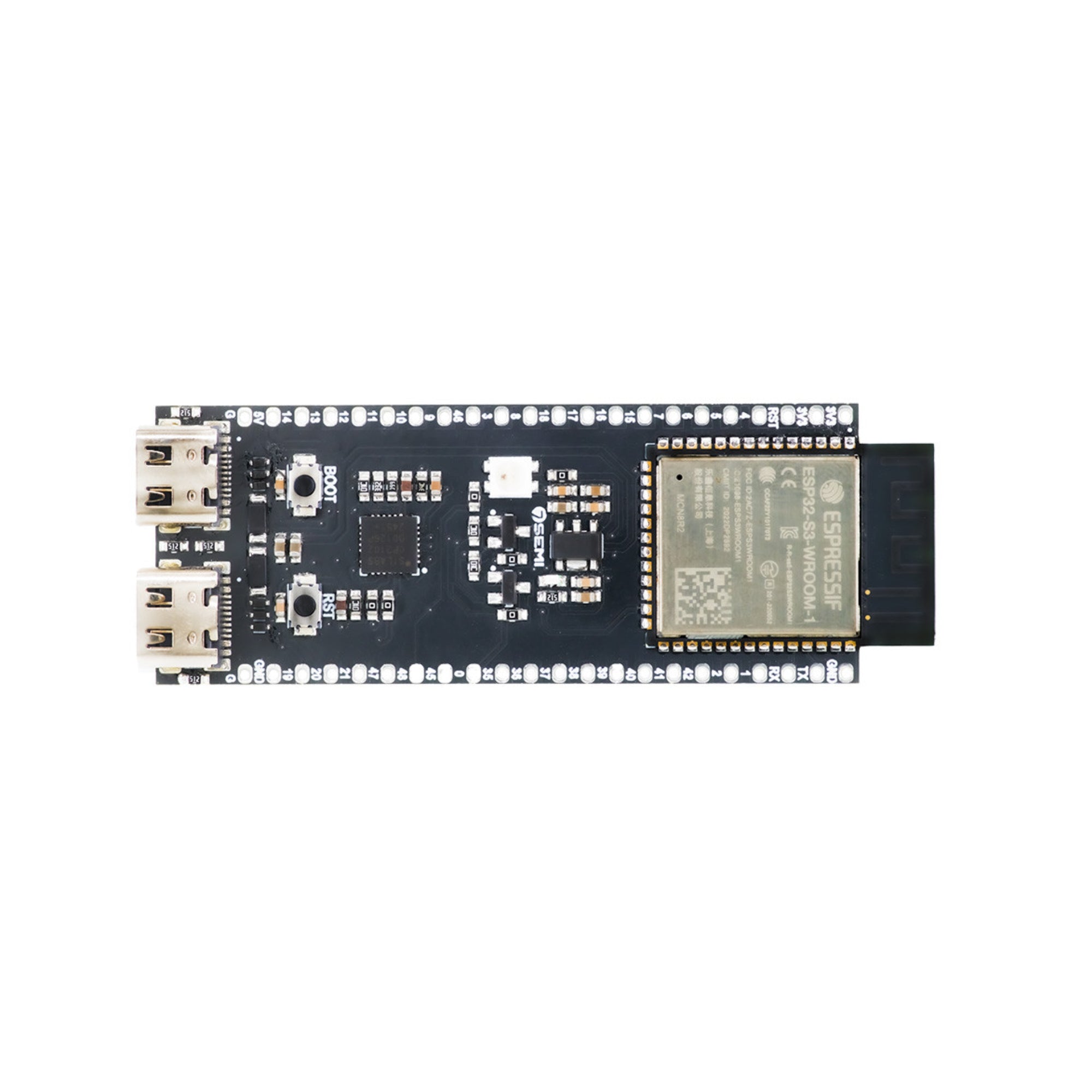

ESP32-S3-Dev-BoardC-1-N8R2 WiFi, Bluetooth, Dual USB-C, RGB LED

The 7Semi ESP32-S3-Dev-BoardC-1-N8R2 is a feature-rich development board based on the ESP32-S3-WROOM-1-N8R2 module. It supports WiFi and Bluetooth BLE connectivity and includes dual USB-C ports for power and programming. The board features an onboard RGB LED for visual feedback and provides a full breakout of GPIO pins in a breadboard-friendly layout. It is ideal for IoT development, robotics, automation, wireless systems, and rapid prototyping.

Technical Specifications:

• Microcontroller: ESP32-S3-WROOM-1-N8R2 module
• Flash Memory: 8 MB
• Wireless Connectivity: WiFi 2.4 GHz (802.11 b/g/n), Bluetooth BLE 5.x
• USB Interfaces: Dual USB-C ports for programming, power, and potential USB-OTG
• Onboard Indicator: RGB LED
• GPIO Access: Fully accessible I/O including UART, SPI, I²C, PWM, ADC, etc.
• Logic Level: 3.3 V
• Power Input: 5 V via USB-C
• Board Layout: Standard DevKitC-1 format, breadboard friendly
• Supported Development Platforms: ESP-IDF, Arduino IDE, MicroPython, PlatformIO

Features:

• Dual USB-C ports for flexible connection and development
• Onboard RGB LED for testing, indication and UI feedback
• Integrated WiFi & BLE for modern IoT connectivity
• Full pin breakout for sensors, displays, actuators and external hardware
• Breadboard-friendly design suitable for prototyping and development
• High-performance ESP32-S3 processor with AI acceleration features
• Wide ecosystem support with community libraries and examples
• Compact and production-ready reference platform

Applications:

• IoT devices and wireless sensor nodes
• Smart home controllers and BLE gateways
• Wearable electronics and portable monitoring systems
• Robotics, automation and real-time embedded control
• Wireless data acquisition and cloud-connected systems
• Education, research and prototyping projects
• Edge computing and AI-enabled processing applications
