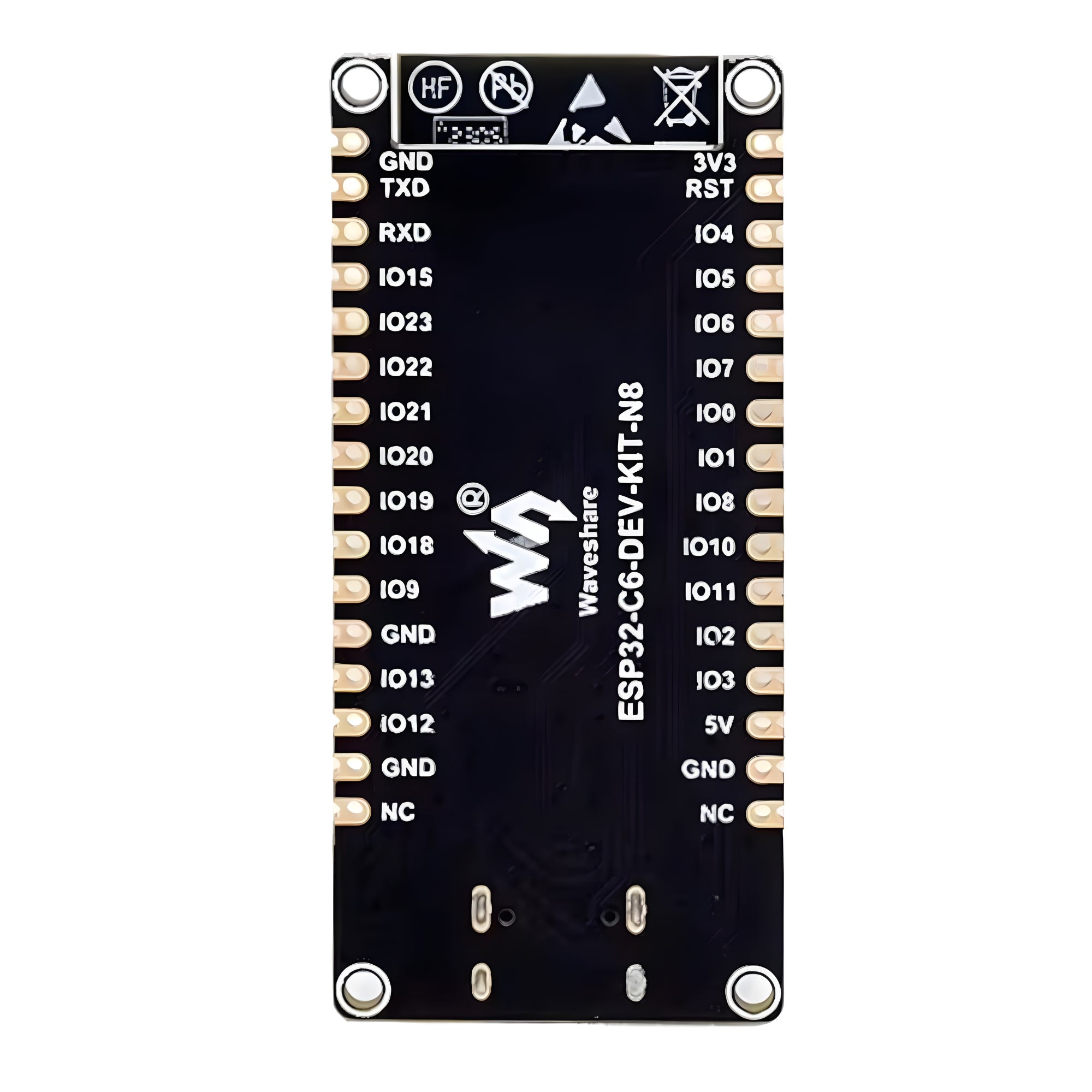

ESP32-C6-DevKit-1-N8 Module

ESP32-C6-DevKit-1-N8 is a compact development board built around the ESP32-C6 SoC, designed for next-generation IoT and embedded applications. It combines Wi-Fi 6, Bluetooth Low Energy, and IEEE 802.15.4 support in a single low-power microcontroller, making it suitable for modern wireless ecosystems such as Matter and Thread. The board is optimized for rapid prototyping, firmware development, and evaluation of ESP32-C6 capabilities.

Technical Specifications:

• Microcontroller: ESP32-C6 (RISC-V 32-bit single-core)
• Wireless Connectivity: Wi-Fi 6 (2.4 GHz), Bluetooth Low Energy 5.0, IEEE 802.15.4
• Flash Memory: 8 MB SPI Flash
• Operating Voltage: 5 V via USB, 3.3 V logic
• Interfaces: GPIO, UART, SPI, I2C, PWM, ADC
• USB Interface: USB Type-C for power and programming
• Antenna: Onboard PCB antenna
• Debugging: USB-to-serial and native USB support
• Form Factor: Pin-header compatible development board

Features:

• Integrated Wi-Fi 6 for improved efficiency and lower latency
• Support for Bluetooth LE and 802.15.4 (Thread, Zigbee, Matter-ready)
• Low-power design suitable for battery-operated devices
• USB Type-C interface for convenience and modern compatibility
• Rich peripheral set for flexible hardware interfacing
• Native RISC-V architecture for open and scalable development
• Compatible with ESP-IDF and popular embedded toolchains

Applications:

• IoT and smart home devices
• Matter, Thread, and Zigbee-based applications
• Wireless sensor networks
• Home automation and smart appliances
• Educational and research projects
• Rapid prototyping of low-power connected products
