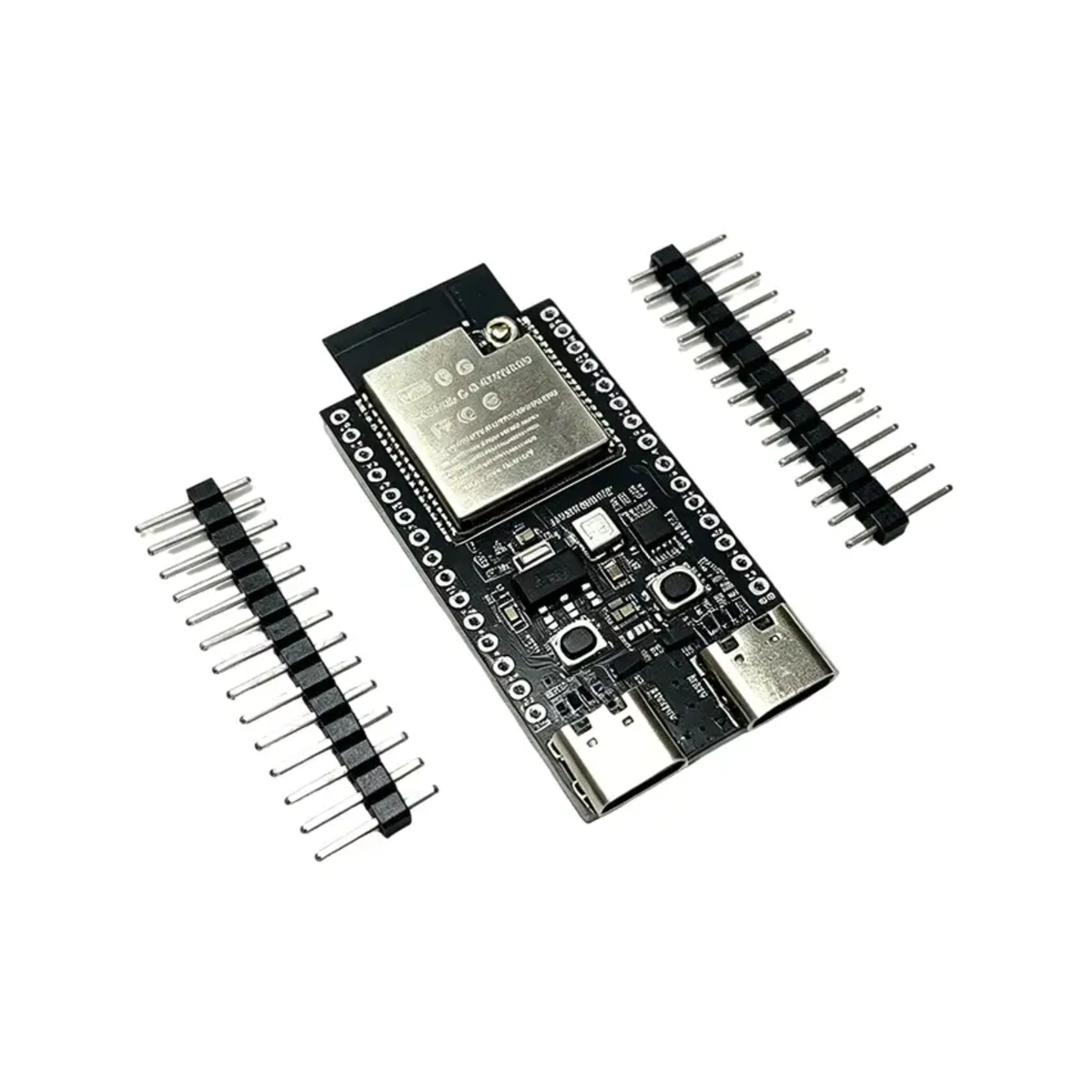

ESP32-C5 Development Board (N16R8) – Wi-Fi 6 Dual-Band IoT Development Board

The ESP32-C5 Development Board (N16R8) is a high-performance IoT development platform based on Espressif’s ESP32-C5 RISC-V microcontroller. It supports dual-band Wi-Fi 6 on 2.4 GHz and 5 GHz, along with Bluetooth LE, Zigbee and Thread connectivity. The N16R8 version includes 16 MB Flash and 8 MB PSRAM, making it suitable for memory-intensive embedded and wireless applications. With USB Type-C connectivity, accessible GPIO pins and multiple communication interfaces, the board is ideal for IoT development, automation, robotics, wireless sensing and advanced prototyping projects.

Technical Specifications:

• Processor: 32-bit single-core RISC-V, up to 240 MHz
• Memory: 16 MB Flash + 8 MB PSRAM
• Wireless: 2.4 GHz & 5 GHz Wi-Fi 6, Bluetooth LE, Zigbee and Thread
• Interfaces: GPIO, UART, SPI, I2C, I2S, ADC, CAN FD
• USB: USB Type-C with USB Serial/JTAG support

Features:

• Dual-band 2.4 GHz and 5 GHz Wi-Fi 6 support
• Large 16 MB Flash + 8 MB PSRAM configuration
• Supports Bluetooth LE, Zigbee and Thread
• USB Type-C for programming, power and debugging
• Rich GPIO and peripheral support for embedded projects

Applications:

• IoT and smart-home devices
• Wireless sensor networks
• Robotics and automation systems
• Zigbee and Thread-based projects
• Embedded system development and prototyping
