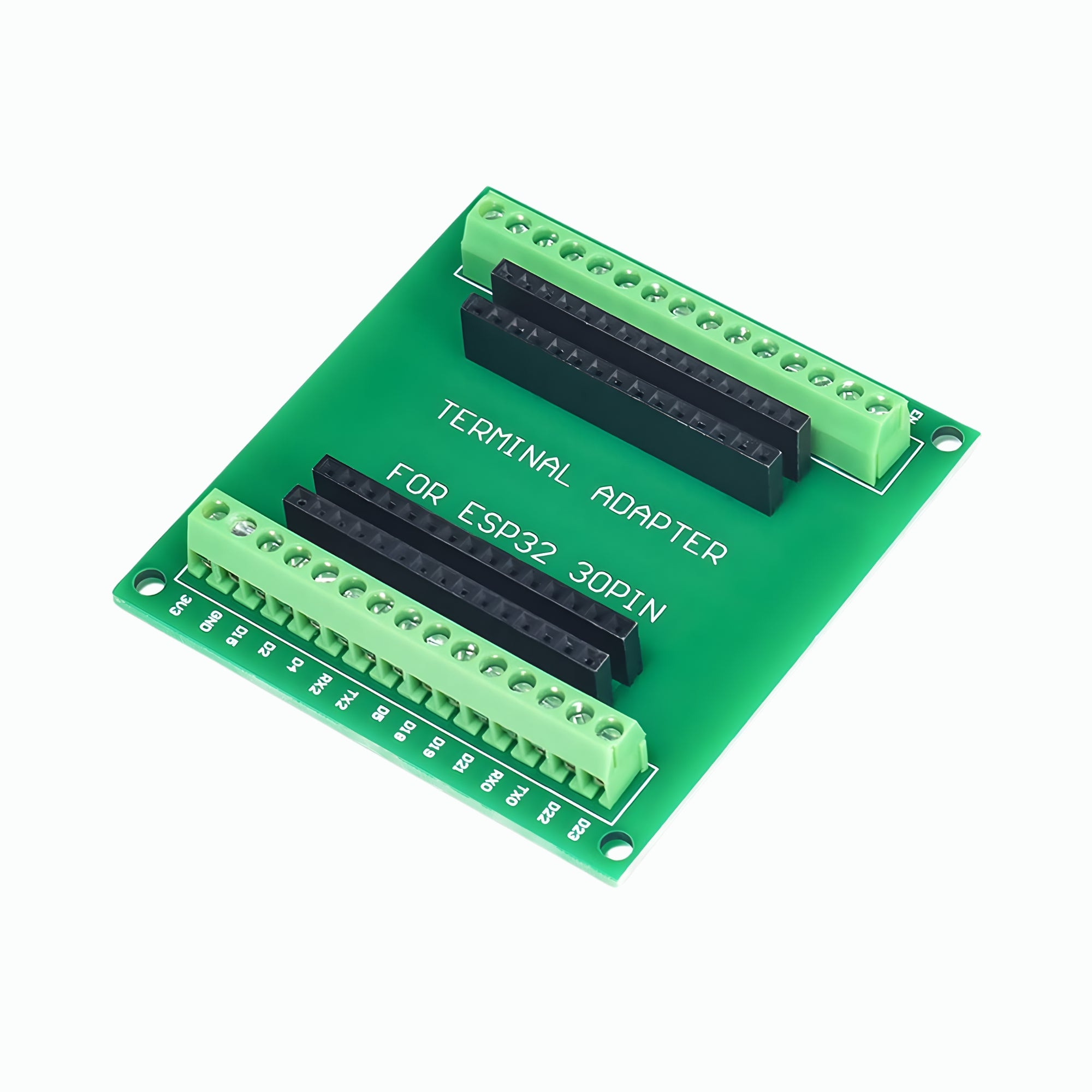

ESP32 Breakout Board 30Pin

The ESP32 30-Pin Breakout Board is a terminal adapter designed to simplify wiring and prototyping with ESP32 development boards that use a 30-pin layout. It converts the ESP32 pin headers into clearly labeled screw terminals, allowing easy and secure connections without soldering. This board is ideal for rapid development, testing, and educational or industrial applications.

Technical Specifications:

• Compatible board: ESP32 Dev Module (30-pin version)

• Pin count supported: 30 pins

• Connector type: Screw terminals

• Terminal pitch: 3.5 mm (typical)

• Header type: Female pin headers

• Operating voltage: Up to 5 V (logic-level dependent on ESP32)

• PCB material: FR-4

• Mounting holes: 4

• Board color: Green

Features:

• No soldering required
• Clearly labeled GPIO, power, and communication pins
• Easy access to all ESP32 pins

• Secure screw-terminal connections

• Compact and reusable design

• Supports rapid prototyping and debugging

Applications:

• ESP32 prototyping and development

• IoT projects

• Home automation systems

• Industrial control testing

• Educational and training kits

• Sensor and module interfacing
