Description

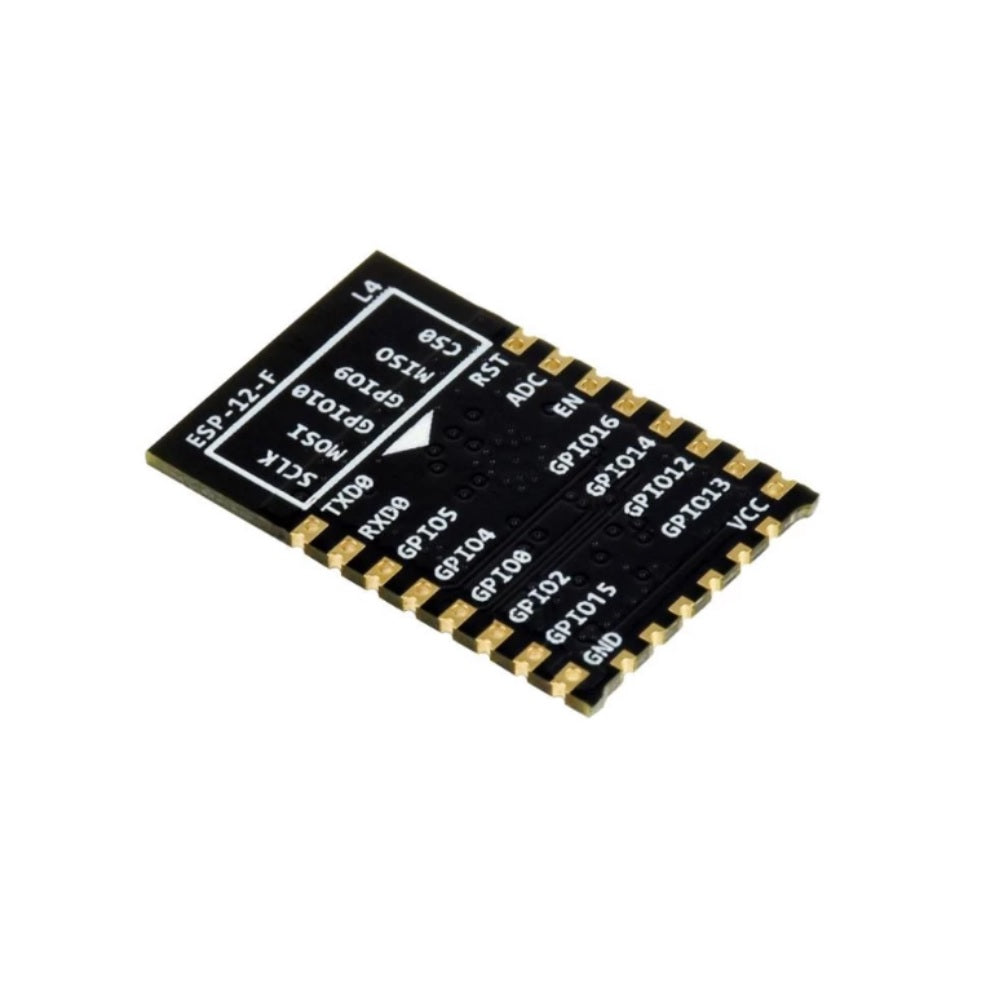

The ESP-12 module is one of the most complete of the ESP family as it allows you to use the biggest number of pins of all of them. It has an LDR and a WS2812 led already on board for your projects. The board comes with a CH40 micro-USB module to program it.
The ESP8266 highly integrated chip, including antenna switch balloon, power management converter, so with minimal external circuitry. The system is equipped with ESP8266 manifested leading features are: energy saving VoIP quickly switch between the sleep/wake patterns, with low-power operation adaptive radio bias, front-end signal processing functions.
Technical Specification:
- Operating Current: Average 80 mA
- Operating Voltage: 3.3 V
- Frequency range: 2.4 GHz – 2.5 GHz
- Power down leakage current of < 10 µA
- Wake up and transmit packets in < 2 ms
- Standby power consumption of < 1.0 mW (DTIM3)
Features:
- It is a peripheral circuit
- It has four laminates plate process
- It is enhanced impedance matching
- It is a stronger Wi-Fi signal output
- It has an anti-jamming ability
- It has a PCB antenna redesigned after professional laboratory testing
Applications:
- Can be used in any application where you need to connect a device to your local network or the internet
- Home Automation
- IoT applications
