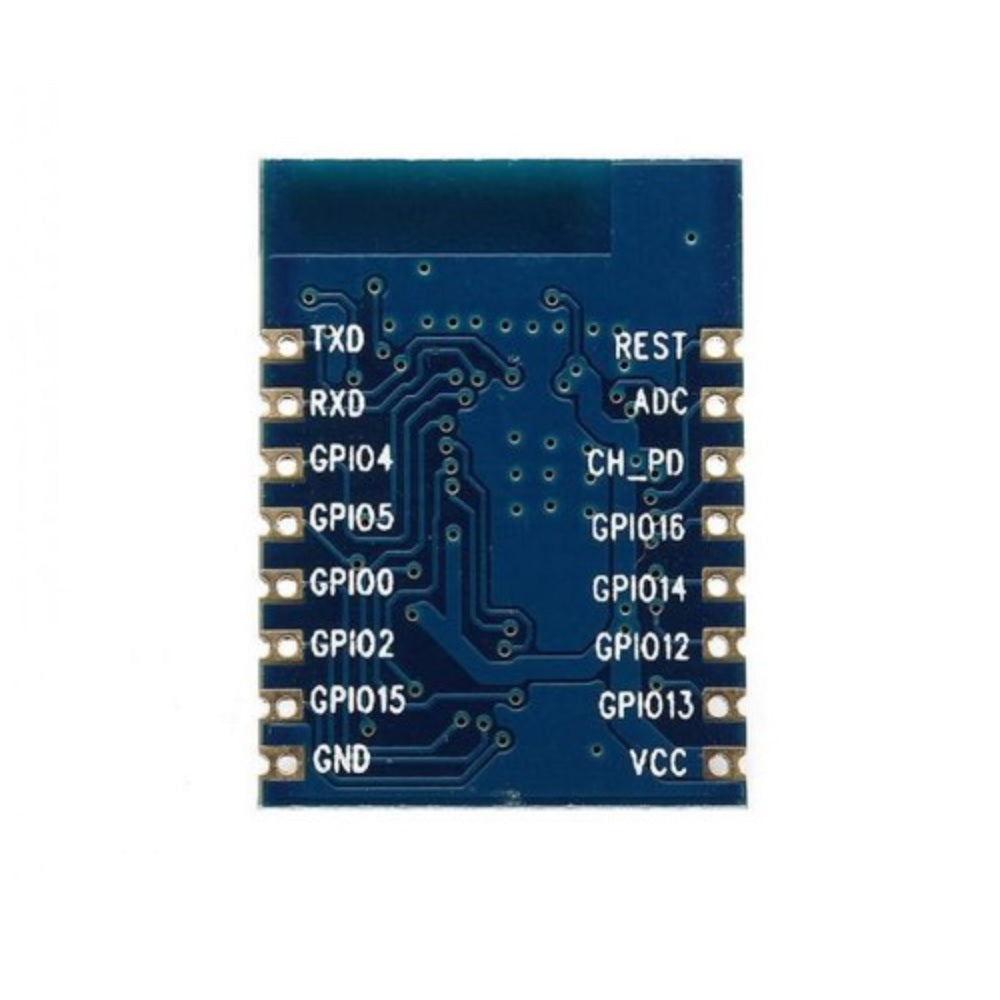

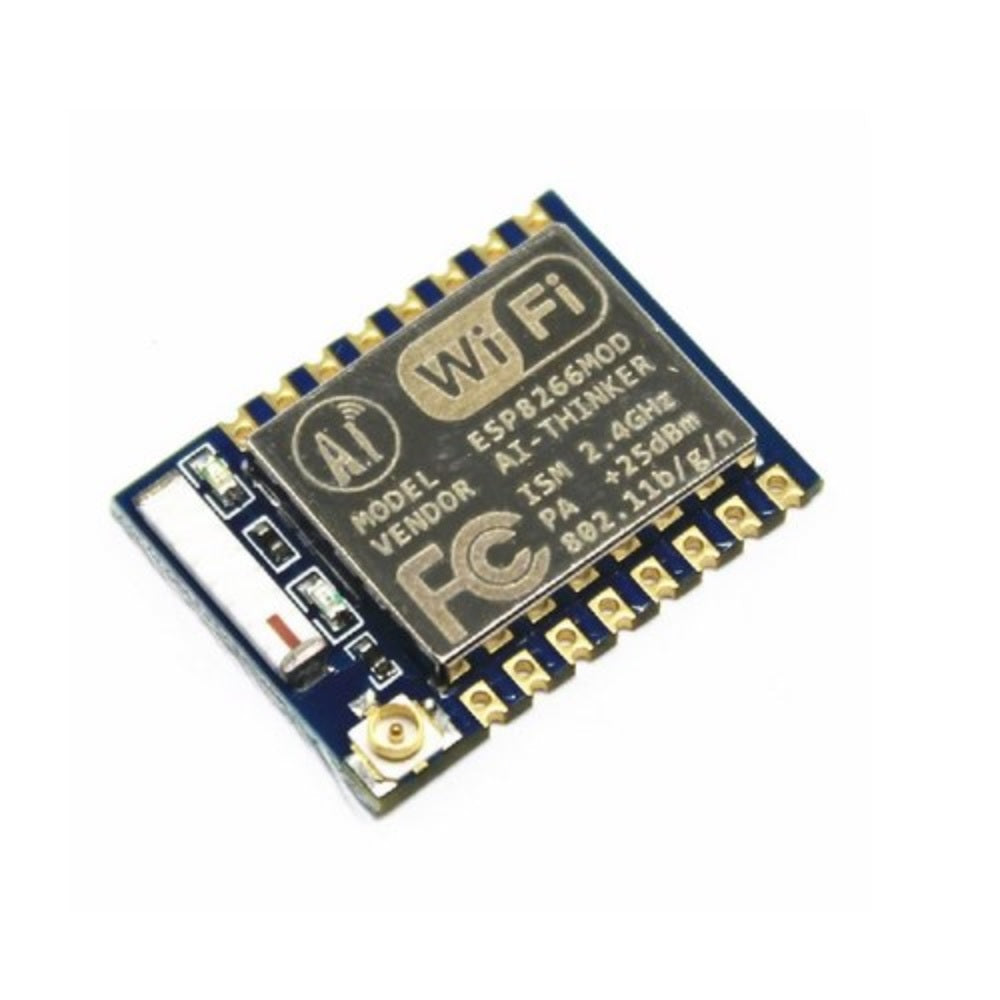

ESP-07 ESP8266 Serial WIFI Transceiver Module

SKU: VM00409

Send Inquiry

Description

ESP8266 Serial WIFI Module (ESP-07) is a new player in this field: it’s tiny (25mm x 15mm), with simple pin connections, using serial TX/RX to send and receive Ethernet buffers, and similarly, using serial commands toquery and change configurations of the WiFi module. This is quite convenient as it only requires two wires (TX/RX) to communicate between a microcontroller and WiFi, but more importantly, it offloads WiFi-related tasks to the module, allowing the microcontroller code to be very light-weighted.

ESP8266 Serial WIFI Module (ESP-07) is a cheap and easy way to connect any small microcontroller platform, like Arduino, wirelessly to Internet. ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area.

ESP8266 Serial WIFI Module (ESP-07) is addressable over SPI and UART, making this an exceptionally easy choice for anyone wanting to build an Internet of Things thing. You can use AT commands to connect to WiFi networks and open TCP connections without need to have TCP/IP stack running in your own microcontroller: You can simply connect any microcontroller to this module and start pushing data up to the Internet.

Technical Specification:

  • Module Model: ESP-07
  • Package/Case: SMD-16
  • SPI Flash: Default 8Mbit
  • Antenna Type: Ceramic and IPEX
  • Input Supply Range (VDC): 0 ~ 3.6
  • Interface: UART/GPIO/ADC/PWM
  • IO Port: 9
  • Frequency Range: 2412 ~ 2484MHz
  • UART Baudrate: Support 300 ~ 4608000 bps ˈDefault 115200 bps
  • Operating Temperature (°C): 20 to 85
  • Security: WEP/WPA-PSK/WPA2-PSK
  • Size: 21.2mm*16mm*3mm(L*W*H)

Features:

  • Semi-hole chip technology, all the IO leads, with metal shielding shell
  • IPX external antenna, can also be built-in ceramic antenna
  • Support wireless 802.11b /g/n standard
  • Supports three working modes:STA/AP/STA+AP
  • The built-in TCP/IP protocol stack supports multiple TCP Client connections

Applications:

  • IOT applications
  • Networking applications
  • Wearable electronic products
  • Wireless positioning system
