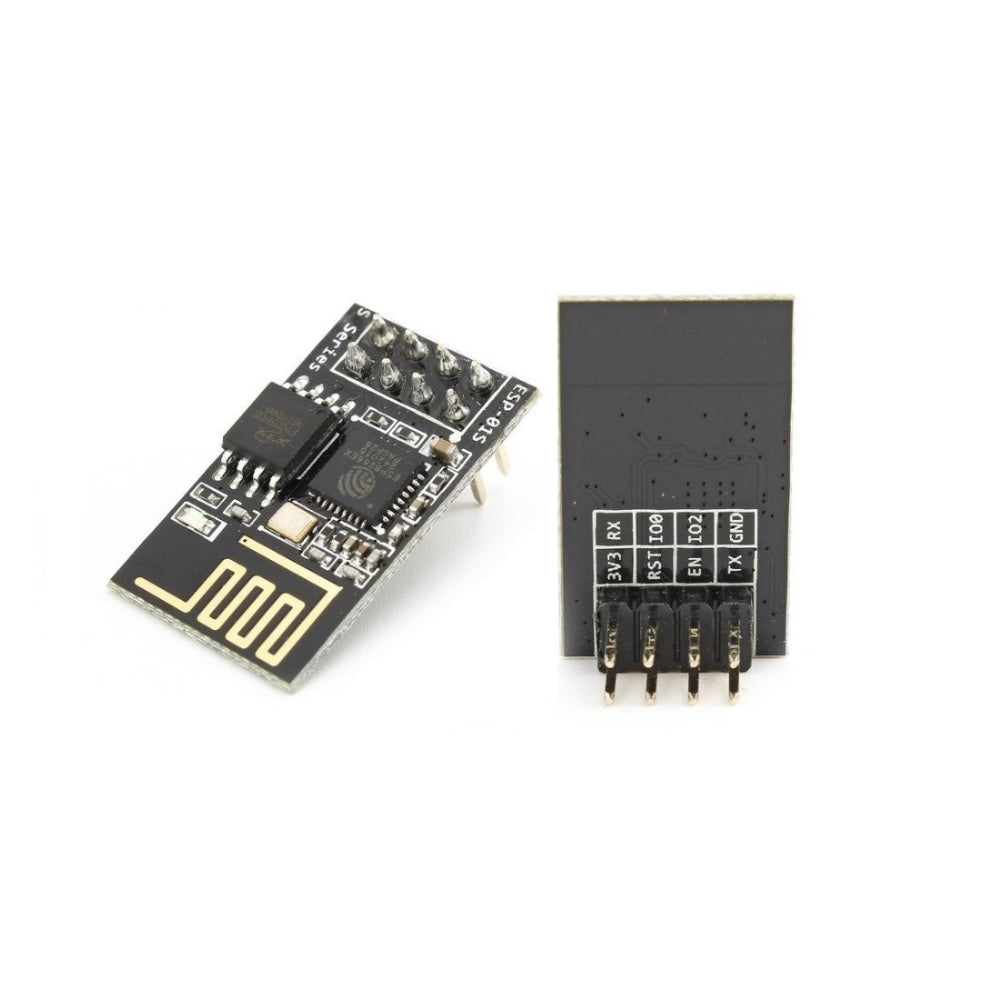

ESP-01 ESP8266 Serial WIFI Transceiver Module

SKU: VM00352

Send Inquiry

Description

ESP8266 is high integration wireless SOCs, designed for space and power. It provides unsurpassed ability to embed Wi-Fi capabilities within other systems, or to function as a standalone application, with the lowest cost, and minimal space requirement. ESP8266EX offers a complete and self-contained Wi-Fi networking solution. It can be used to host the application or to offload Wi-Fi networking functions from another application processor. When ESP8266EX hosts the application, it boots up directly from an external flash. In has integrated cache to improve the performance of the system in such applications.

Technical Specification:

  • Serial/UART baud rate: 115200 bps
  • Input power: 3.3V
  • I/O voltage tolerance: 3.6V Max
  • Regular operation current draw: ~70mA
  • Peak operating current draw: ~300mA
  • Power down leakage current: <10µA
  • Flash Memory Size: 1MB (8Mbit)
  • WiFi security modes: WPA, WPA2
  • Size: 25mm*15mm*1.33mm (L*W*H)

Features:

  • Printed antenna on-board
  • Header block for easy access
  • Arduino-compatible
  • Able to run a web server
  • Able to become a wireless access point

Applications:

  • Wireless Web Server
  • Pressure Sensors on Railway Tracks
  • Air Pollution Meter
  • Temperature logging system
  • World’s smallest IoT project
  • Wi-Fi controlled robot
  • Humidity and temperature monitoring
