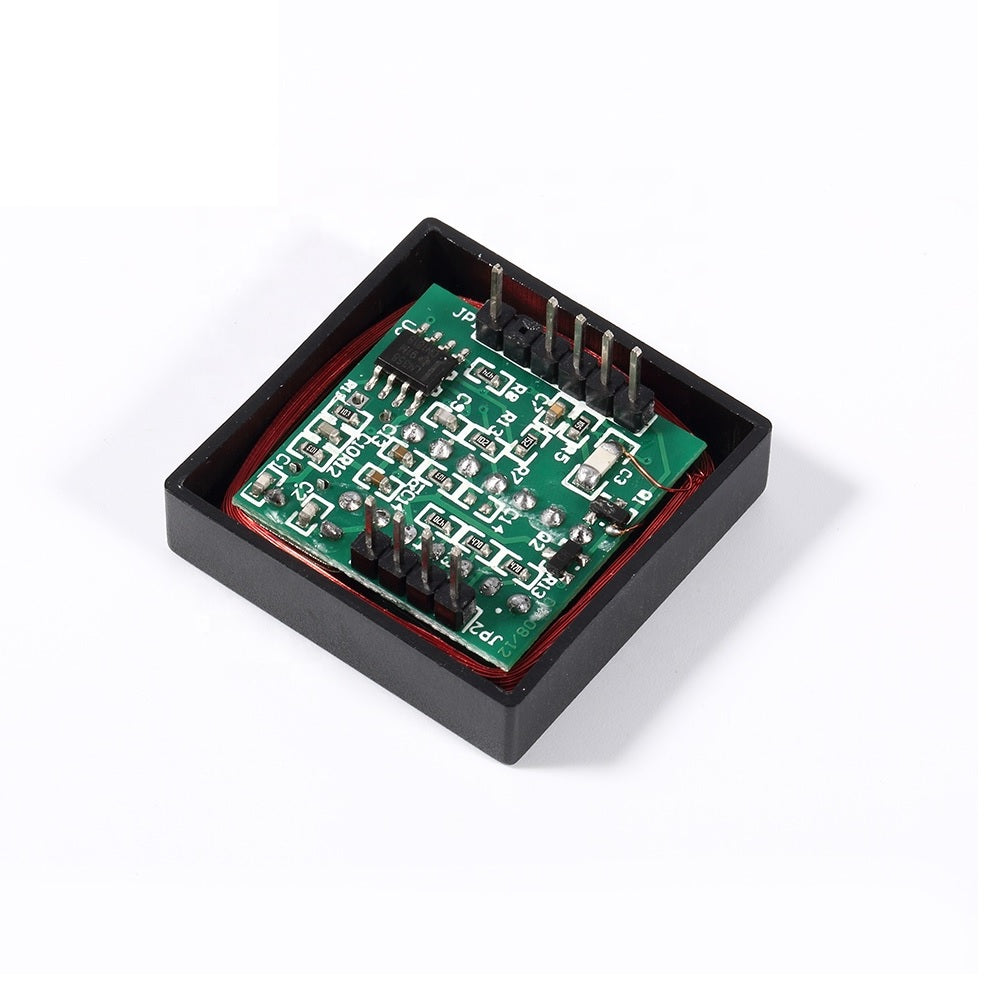

EM-18 RFID Reader Module

SKU: VM00157

Send Inquiry

Description

Radio frequency Identification (RFID) is a wireless identification technology that uses radio waves to identify the presence of RFID tags. We need to bring the RFID tags near to the reader to read the unique identifier number associated with that RFID tag as it has a microchip with radio antenna mounted on a substrate which carries a unique 12-byte identifier. RFID Reader has a transceiver and antenna mounted on it to read the data of the RFID tag and transmit the same to the microcontroller or the PC. It can communicate with your PC with either RS232 or WEIGAND communication protocols. The form of communication is selected by SEL pin. If SEL pin is selected HIGH then form of communication is RS232 and if SEL pin is pulled LOW then form of communication is WEIGAND. Usually, the RS232 is selected because it’s popular so SEL pin is pulled HIGH. You can use RFID tags in auto Attendance system, Item Identification system, Automatic payment mechanism, medical tags etc.

Technical Specification:

  • Supply Voltage: +4.5V to +5.5V
  • Operating Frequency: 125KHz
  • Read Distance : 10cm
  • Current Rating : < 50mA
  • Communication parameter:9600bps
  • Reading distance: 10cm, depending on TAG
  • Can operate on LOW power
  • Communication parameter:9600bps
  • Integrated Antenna
  • Size:32mmx32mmx8mm(L*W*H)

Features:

  • Can operate on LOW power
  • Communication parameter:9600bps
  • Integrated Antenna
  • The module radiates 125KHz through its coils.
  • Pitch of output pins are 2.54mm.
  • EM-18 RFID reader is one of the commonly used RFID reader.
  • It provides both UART and Wiegand26 output formats.
  • It can be directly interfaced with microcontrollers using UART and with PC using an RS232.

Pin Description:

Applications:

  • Robotics
  • Security systems
  • Medical tags
  • Theft protection systems
  • Computer Peripherals
  • Package Identification
  • Data authorization
  • Unique Identity
  • Body implants
  • e-Payment
  • e-Toll Road Pricing
  • e-Ticketing for Events
  • e-Ticketing for Public Transport
  • Access Control
  • PC Access
  • Authentication
  • Printer / Production Equipment
