Ebyte E32-433T30D-V8 SX1278 433MHz 1W LoRa UART Wireless Module – 30dBm

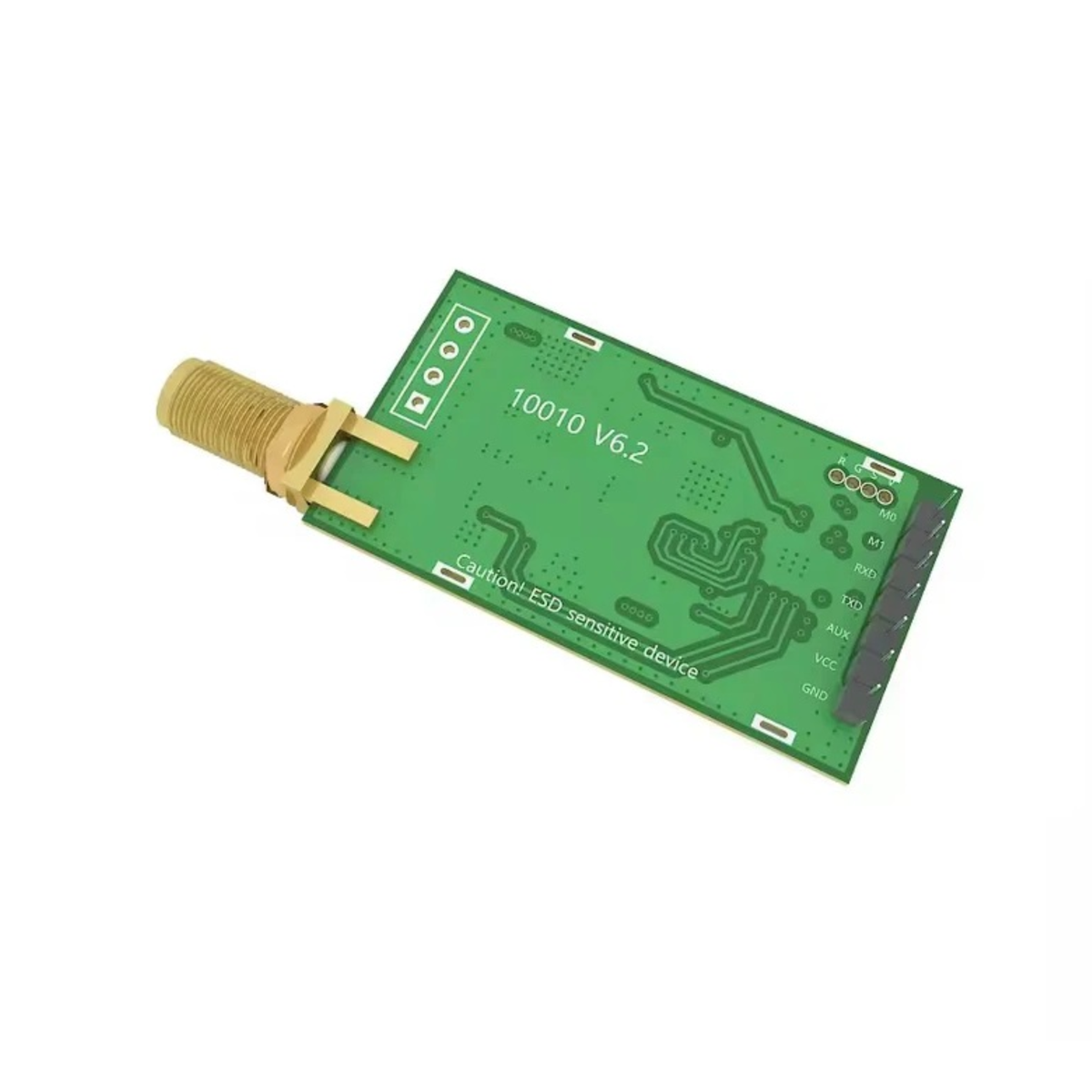

Ebyte E32-433T30D-V8 SX1278 433MHz 1W LoRa UART Wireless Module

The Ebyte E32-433T30D-V8 LoRa Wireless Module is a long-range wireless serial communication module designed for IoT applications, industrial automation, remote monitoring, and wireless sensor networks. Powered by the Semtech SX1278 RF transceiver, it uses LoRa spread-spectrum technology to provide reliable data transmission with improved interference resistance.

Operating across the 410–441MHz frequency range, with a default frequency of 433MHz, the module delivers adjustable RF transmission power from 21dBm to 30dBm (up to 1W). Under manufacturer-specified open-area test conditions, it supports wireless communication distances of up to 8km with a suitable antenna.

Featuring a UART serial communication interface, the E32-433T30D-V8 enables convenient integration with Arduino, ESP32, STM32, and other compatible microcontrollers. Its configurable wireless settings, multiple operating modes, and built-in forward error correction (FEC) make it suitable for industrial telemetry and embedded wireless communication systems.

The module supports a 3.3V–5.2V DC power supply, industrial operating temperatures from -40°C to +85°C, and low-power sleep operation. Its DIP package and SMA antenna connector allow integration into custom PCBs and wireless electronic devices.

Key Features

• Semtech SX1278 LoRa Transceiver: Supports long-range wireless communication using LoRa spread-spectrum technology.

• 410–441MHz Frequency Range: Configurable operating frequency with a factory default of 433MHz.

• Up to 1W RF Transmission Power: Adjustable 21–30dBm output power for different wireless communication requirements.

• Up to 8km Communication Range: Manufacturer-tested range under clear, open-area conditions with appropriate antenna configuration.

• UART Serial Interface: Enables integration with Arduino, ESP32, STM32, and compatible microcontroller platforms.

• Configurable Wireless Data Rate: Supports air data rates up to 19.2kbps.

• Multiple Operating Modes: Supports normal operation, wake-up transmission, power-saving reception, and sleep/configuration modes.

• Forward Error Correction: Built-in FEC improves communication reliability in noisy RF environments.

• Low-Power Operation: Sleep current of approximately 5µA for power-sensitive applications.

• Wide Supply Voltage: Operates from 3.3V to 5.2V DC.

• Industrial Temperature Range: Supports operation from -40°C to +85°C.

• SMA Antenna Connector: Allows connection of a suitable external 433MHz antenna.

• DIP Mounting Design: Suitable for PCB integration and embedded hardware development.

• 512-Byte Data Buffer: Supports buffered serial communication with automatic packet handling.

Technical Specifications

Applications

• Long-Range IoT Communication: Develop wireless communication links between remote IoT devices.

• Industrial Automation: Transmit monitoring and control data between compatible industrial controllers.

• Wireless Sensor Networks: Connect distributed environmental and industrial sensors.

• Smart Agriculture: Develop wireless systems for soil monitoring, irrigation control, and agricultural sensor data transmission.

• Remote Data Acquisition: Collect sensor readings from remote equipment and monitoring stations.

• Home and Building Automation: Build wireless systems for smart buildings, lighting, and environmental monitoring.

• Wireless Alarm Systems: Develop remote alert, monitoring, and security notification applications.

• Arduino and ESP32 Projects: Add LoRa-based wireless serial connectivity to compatible microcontroller projects.

• Industrial Telemetry: Transmit equipment status and measurement data over long distances.

• Educational Projects: Explore LoRa communication, UART interfaces, radio frequency systems, and embedded electronics.

Package Contents

• 1 × Ebyte E32-433T30D-V8 433MHz 1W LoRa Wireless Module

Note: External antenna, microcontroller board, power supply, and other accessories are not included unless separately confirmed in the supplied package.

Compatibility Information

• Compatible with microcontrollers supporting UART communication through suitable voltage-level interfaces.

• Uses a 3.3V TTL communication interface; direct connection to 5V UART logic is not recommended.

• Requires a suitable 433MHz antenna for RF operation.

• Requires a power source capable of supplying the transmit current demanded at high RF output power.

• Wireless range depends on antenna gain, installation height, terrain, obstacles, interference, and transmission settings.

• This is a UART-based LoRa serial module, not a direct SPI breakout or a standalone LoRaWAN gateway.

Important: The 410–441MHz hardware frequency range and 1W maximum output are technical capabilities, not authorization to transmit at every frequency or power level. Users must comply with applicable Indian wireless regulations, licensing requirements, and permitted RF power limits.

Technical Documentation

For pin configuration, operating modes, communication settings, and detailed specifications, refer to the Ebyte E32-433T30D Manufacturer Documentation.
