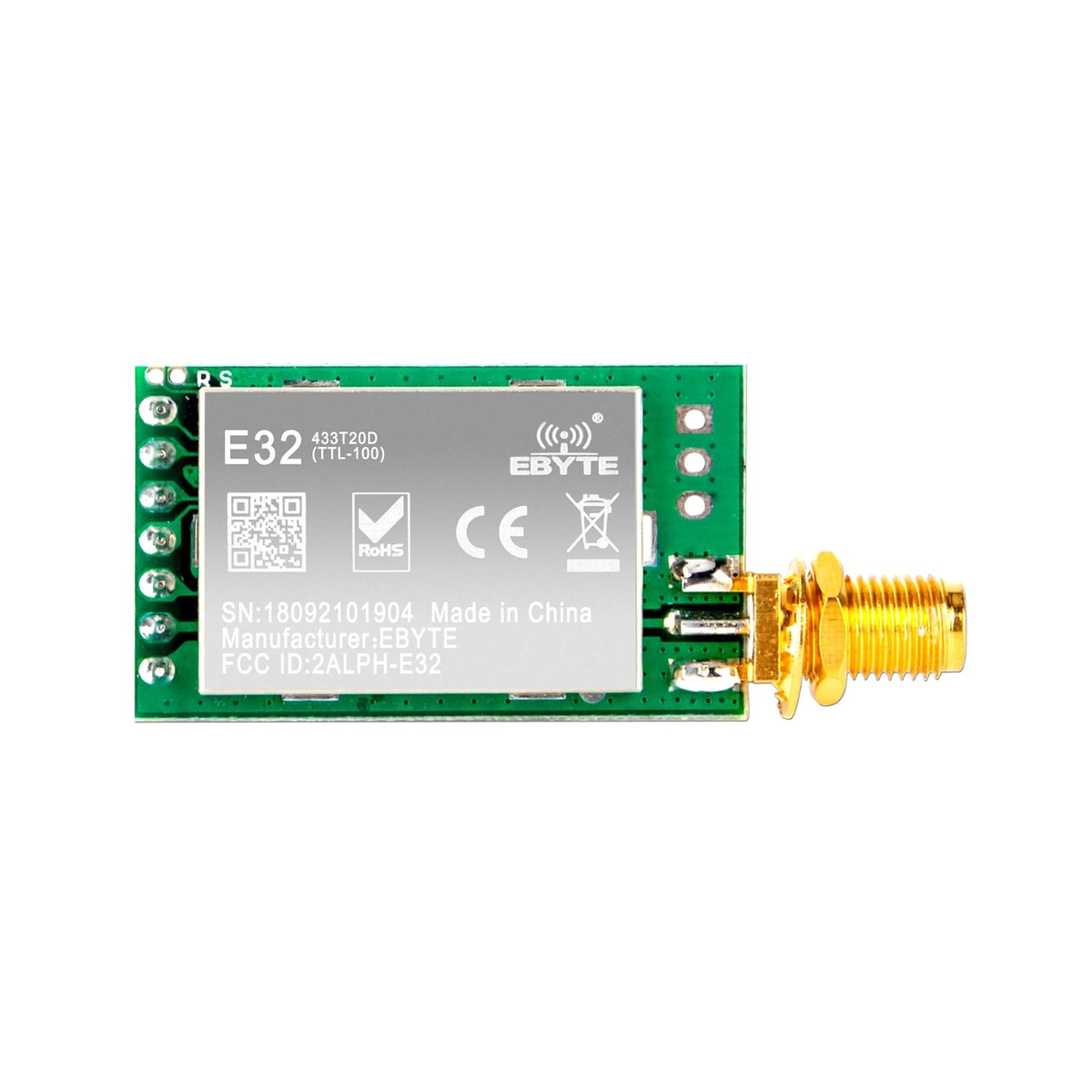

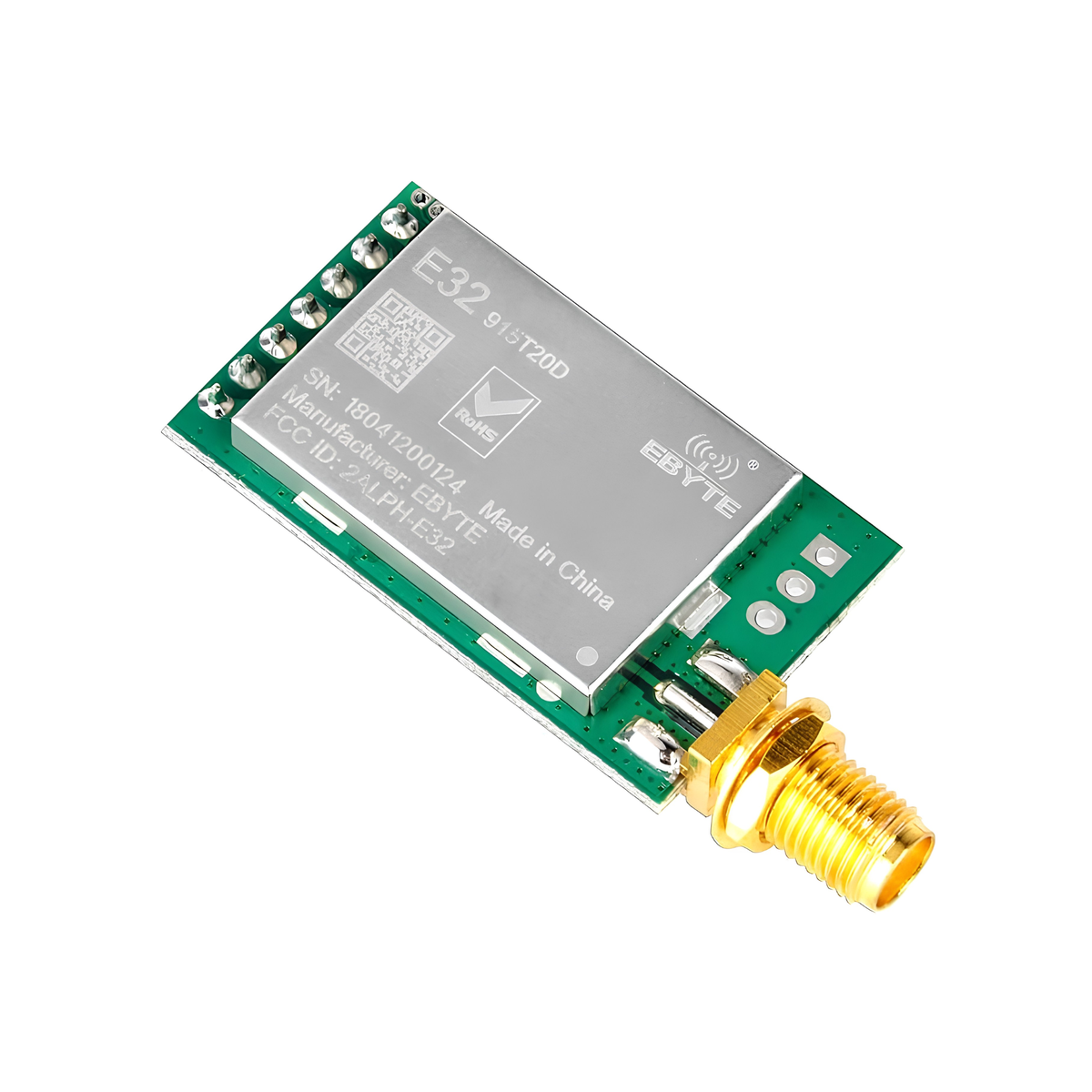

E32-433T30D LoRa 433MHZ UART 10KM Long Range Transmitter Receiver SX1278 RF TX RX Module

The E32-433T30D LoRa 433MHz UART 10KM Long Range Transmitter Receiver SX1278 RF TX RX Module is a long-range wireless communication module designed for reliable data transmission between microcontrollers and embedded systems. Operating in the 433MHz frequency band and using LoRa modulation technology, it provides extended communication distance with good interference resistance and stable performance. The module communicates through a UART interface, making it convenient to connect with Arduino, ESP32, STM32, Raspberry Pi and other controllers. Its SMA antenna connector allows an external antenna to be attached for improved wireless coverage. With a transmission range of up to 10km under suitable open-area conditions, it is suitable for IoT, telemetry, remote monitoring, wireless sensor networks and industrial communication projects.

Technical Specifications:

• Model: E32-433T30D
• Module Type: LoRa UART RF Transceiver
• Operating Frequency: 433MHz band
• RF Chip: SX1278
• Communication Interface: UART TTL
• Communication Type: Transmitter and Receiver
• Maximum Range: Up to 10km under suitable conditions
• Antenna Interface: SMA connector
• Control Pins: M0, M1 and AUX
• Data Direction: Bidirectional wireless communication

Features:

• Long-range LoRa wireless communication
• UART TTL interface for easy microcontroller integration
• Supports both transmitting and receiving data
• Good resistance to wireless interference
• SMA connector for external antenna connection
• Suitable for transparent serial data transmission
• Compact RF module for embedded applications
• Compatible with common development platforms

Applications:

• Long-range IoT communication
• Wireless sensor networks
• Remote monitoring systems
• Agricultural monitoring
• Industrial telemetry
• Smart meter communication
• Home and building automation
• Robotics and remote-control projects
• Environmental monitoring systems
• Wireless data acquisition systems
