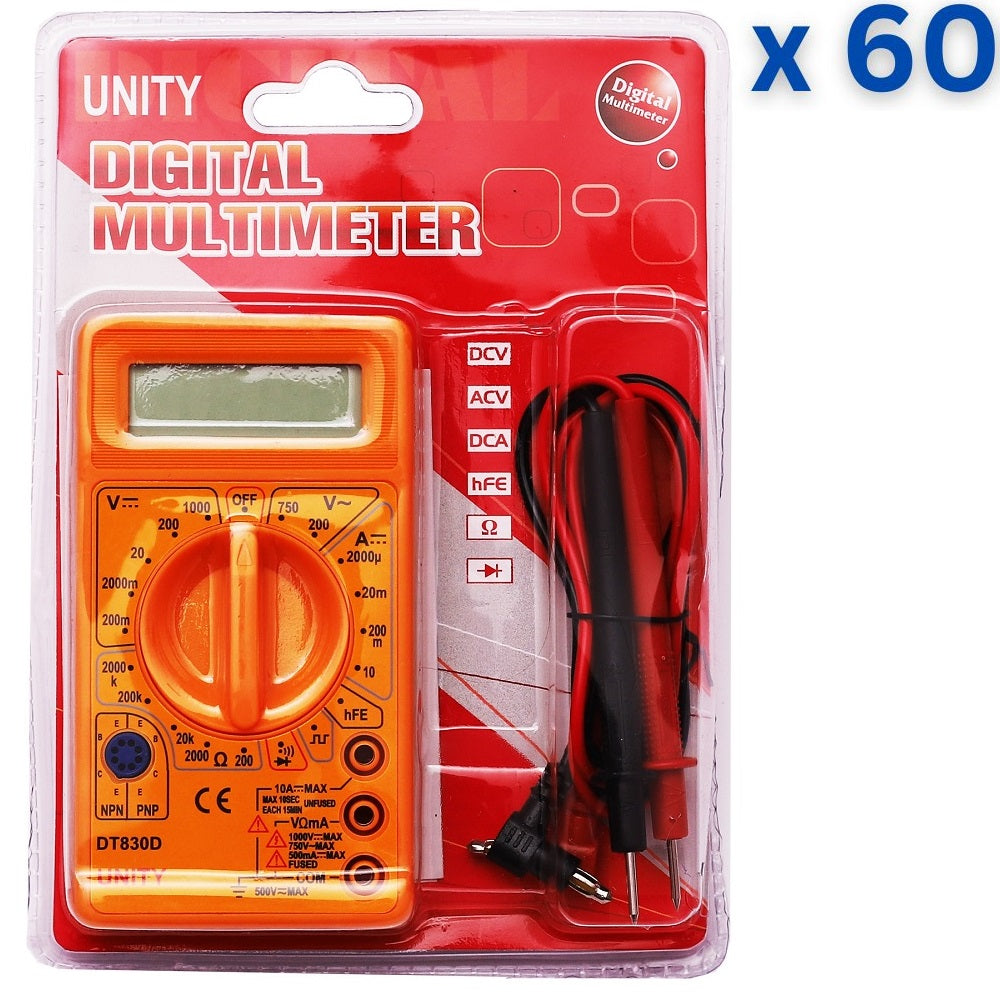

830D - 1000V DC/750V AC Digital Multimeter

The 830D Digital Multimeter is a compact and user-friendly device that provides accurate measurements of electrical parameters. With a simple dial for function selection, it allows users to easily switch between different measurement modes. This multimeter is ideal for use in educational settings, hobbyist projects, and basic electrical troubleshooting.

Technical Specifications

• Display: 3.5 digit LCD
• DC Voltage Measurement: 200 mV, 2 V, 20 V, 200 V, 1000 V
• AC Voltage Measurement: 200 V, 750 V
• DC Current Measurement: 200 µA, 2000 µA, 20 mA, 200 mA, 10 A
• AC Current Measurement: 10 mA, 10 A
• Resistance Measurement: 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ
• Input Resistance: 10 MΩ
• Transistor Testing: Yes (hFE measurement up to 1000)
• Diode Testing: Yes
• Continuity Test: Yes (with buzzer)
• Power Supply: Requires a 9V battery
• Dimensions: Approximately 70 x 126 x 24 mm
• Weight: About 170 g

Features

• Multiple Functions: Measures voltage (AC/DC), current (AC/DC), resistance, diode and transistor testing
• Auto Ranging: Automatically selects the appropriate range for measurements
• Buzzer for Continuity Testing: Provides audible alerts for continuity checks
• Compact Design: Lightweight and portable, making it easy to carry and use in various locations
• User-Friendly Interface: Simple selector switch for quick function changes

Applications

• Ideal for basic electrical testing in home or workshop environments
• Suitable for educational purposes in electronics training
• Useful for automotive diagnostics and repairs
• Practical for hobbyists working on DIY electronics projects
• Effective in troubleshooting electrical circuits and devices
