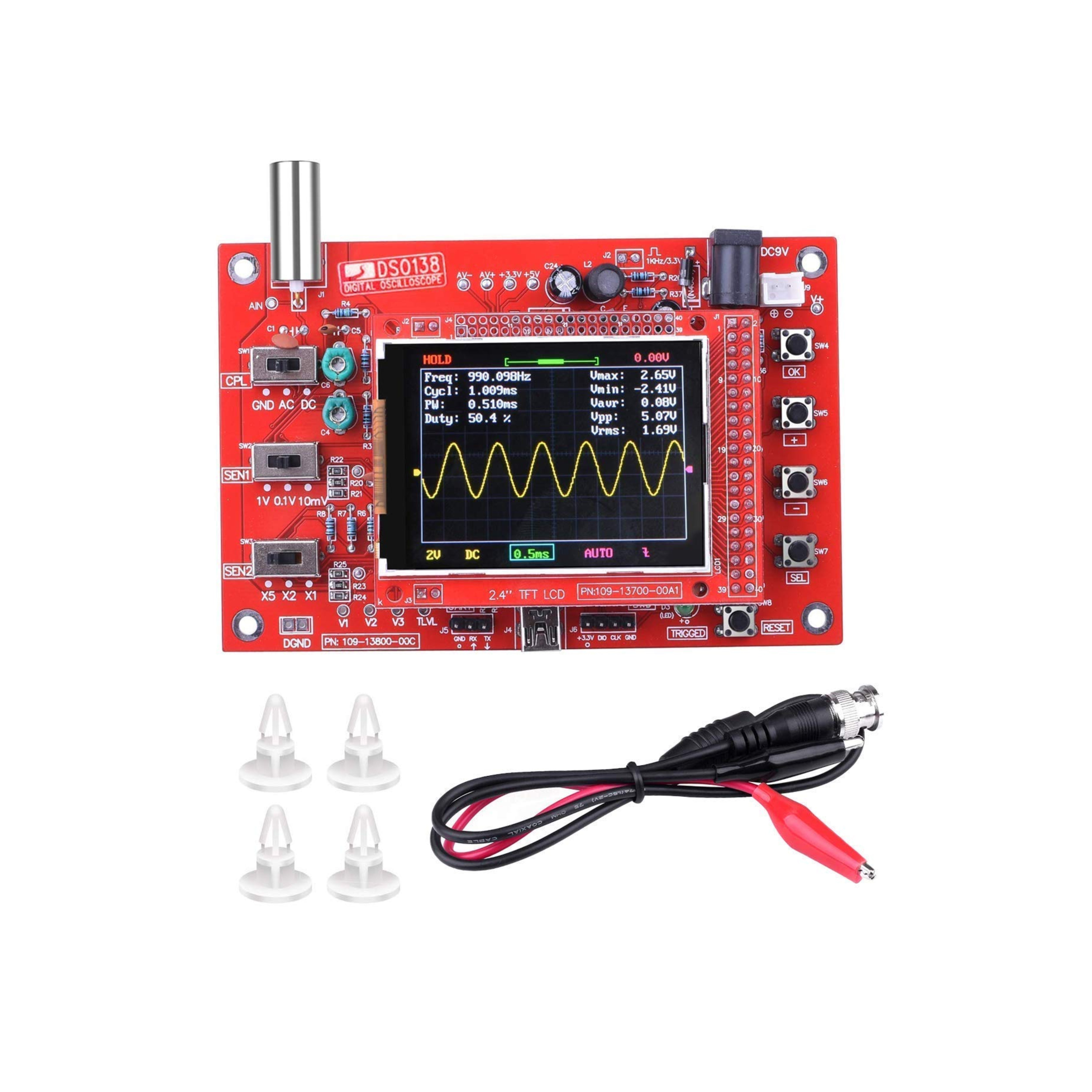

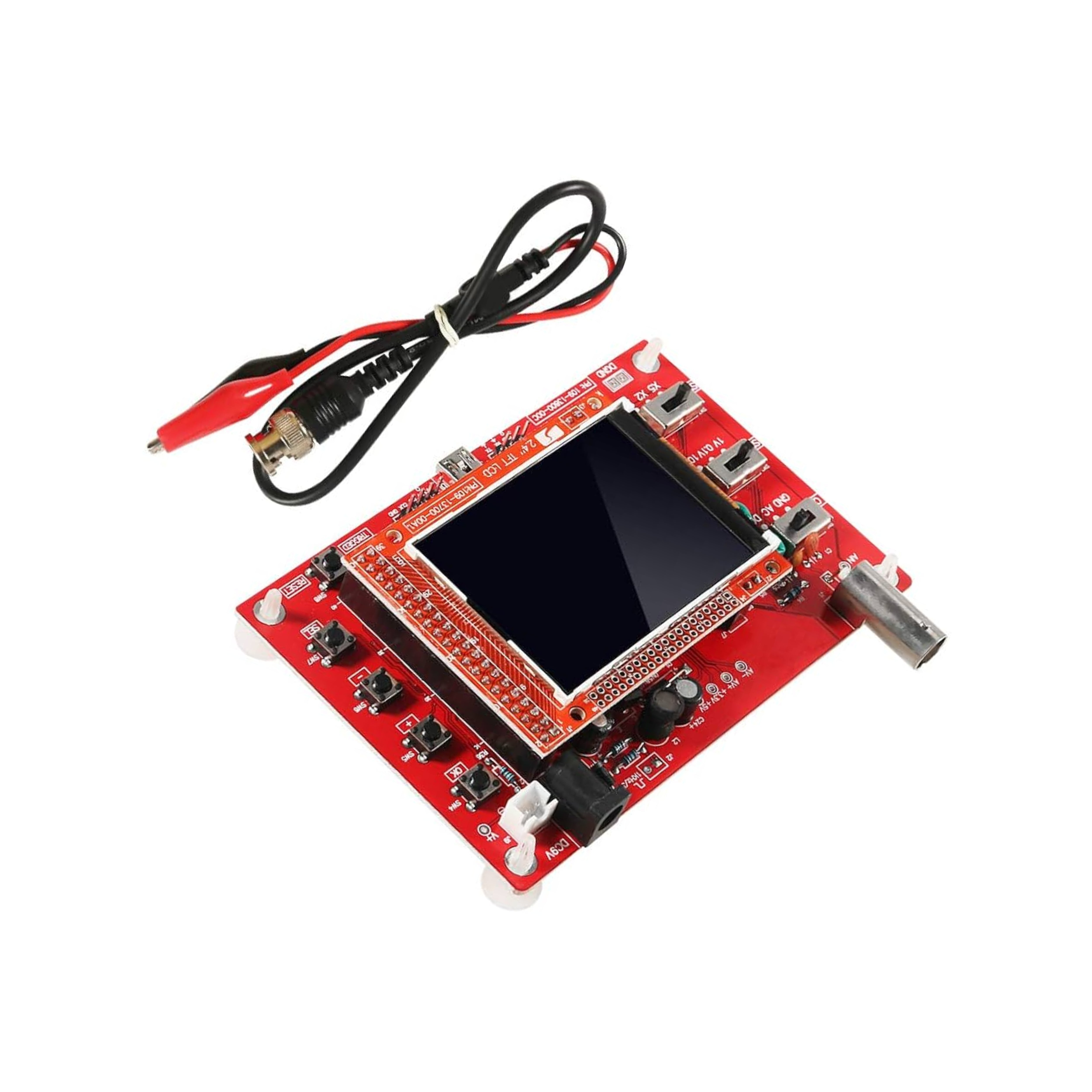

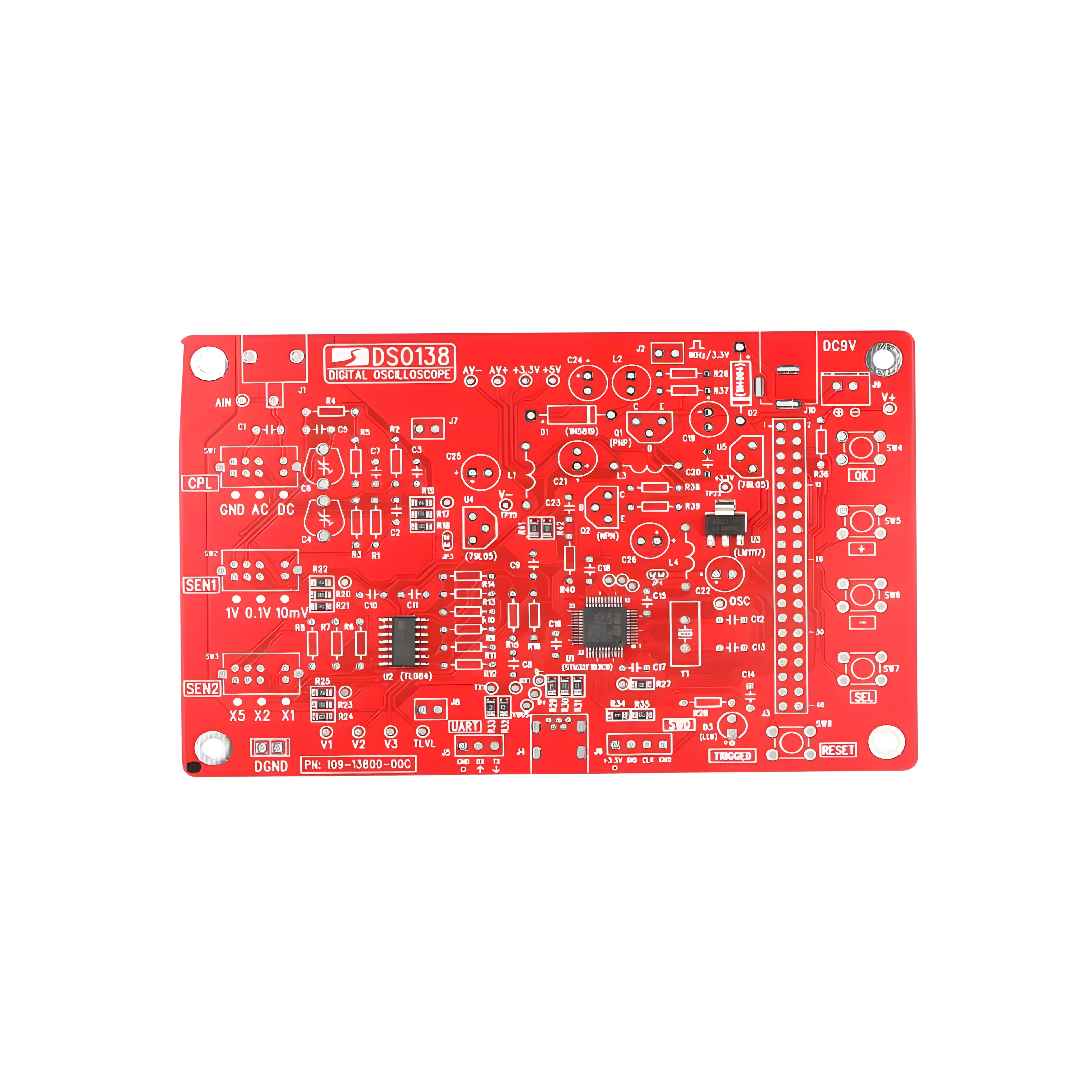

DSO138 Handheld Digital Oscilloscope

The DSO138 handheld digital oscilloscope is a compact and cost-effective signal analysis tool designed for electronics hobbyists, students, and engineers. It is widely used for waveform observation, circuit debugging, and educational purposes. Featuring a built-in TFT display, the device allows real-time visualization of electrical signals and supports basic waveform measurements. Its DIY-friendly design makes it ideal for learning and experimenting with electronic circuits.

Technical Specifications:

• Display: 2.4-inch TFT LCD

• Bandwidth: 0 – 200 kHz

• Sampling Rate: Up to 1 MSa/s

• Input Voltage Range: 0 – 50V (with probe attenuation)

• Sensitivity: 10 mV/div to 5 V/div

• Time Base: 10 µs/div to 500 s/div

• Trigger Modes: Auto, Normal, Single

• Power Supply: 9V DC or USB (depending on version)

• ADC Resolution: 12-bit

• Coupling Modes: AC, DC, GND

Features:

• Compact and portable design

• Real-time waveform display

• Multiple trigger modes for stable signal capture

• Adjustable voltage sensitivity and time base

• Built-in signal generator (in some versions)

• Easy-to-assemble DIY kit format

• Suitable for low-frequency signal analysis

• User-friendly interface with onboard controls

Applications:

• Electronics learning and education

• Circuit debugging and testing

• Signal waveform analysis

• DIY electronics projects

• Microcontroller and embedded system development

• Audio signal testing

• Basic laboratory measurements
