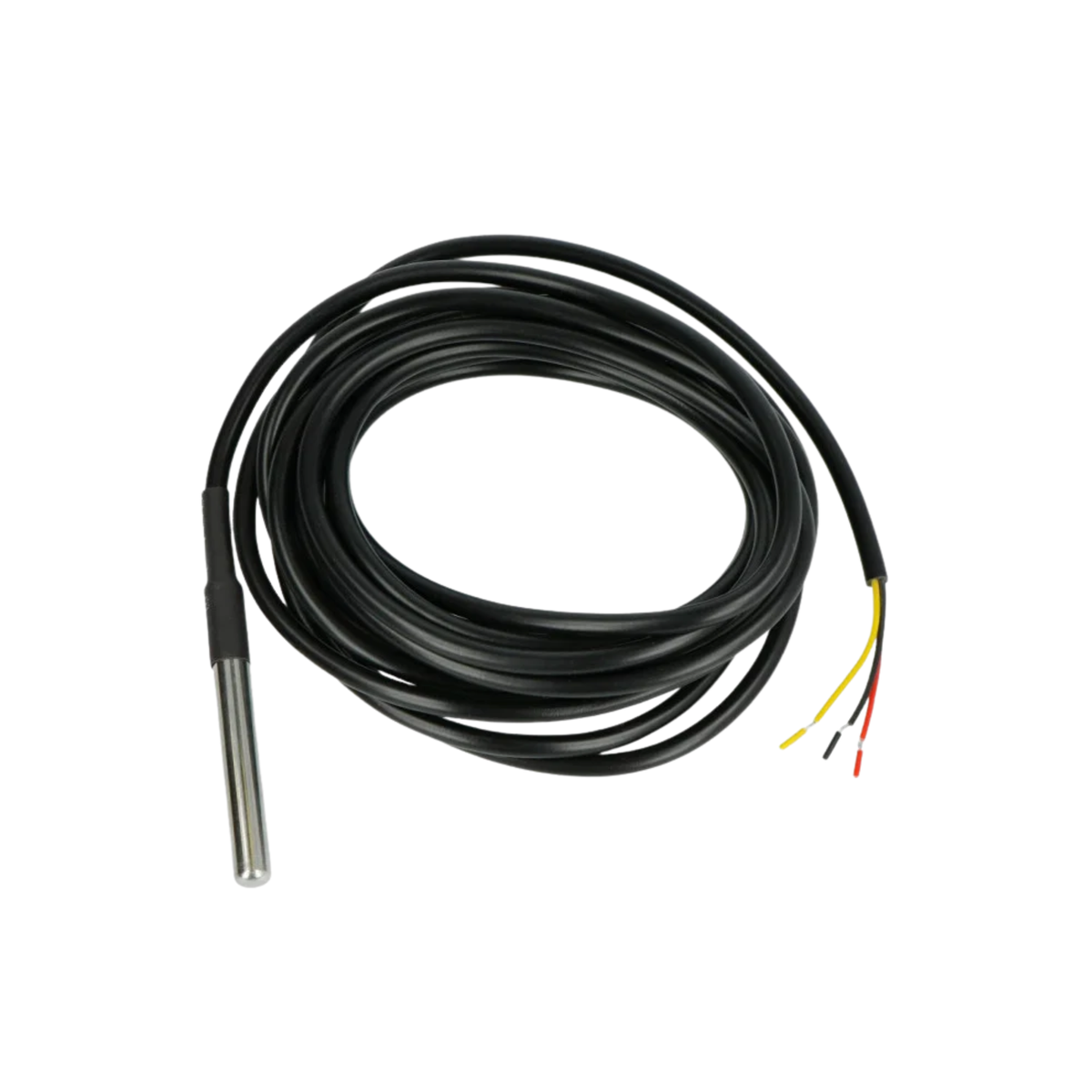

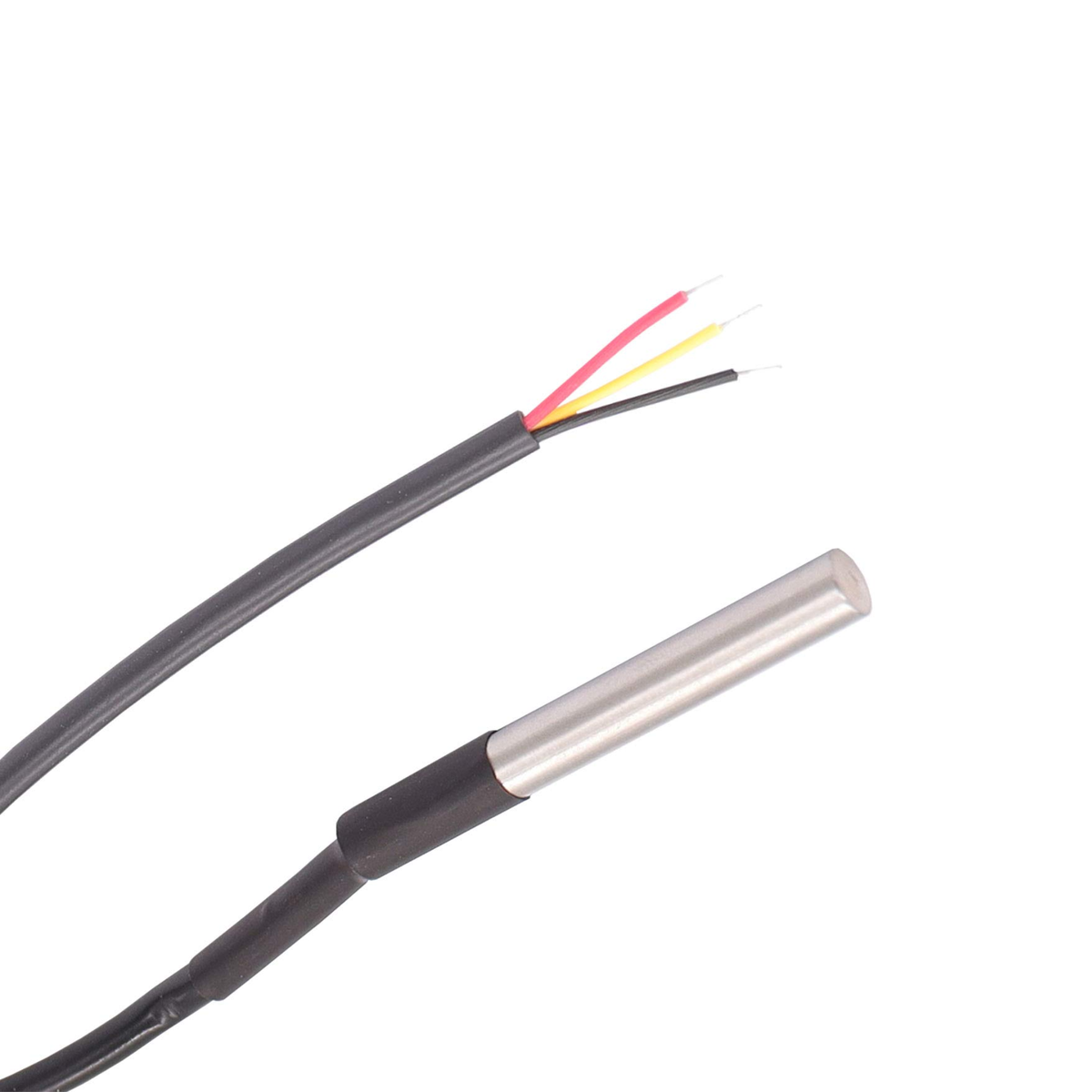

DS18B20 Waterproof Digital Temperature Sensor Probe - 3M

The DS18B20 Waterproof Digital Temperature Sensor Probe - 3M is a digital temperature sensor designed for accurate temperature monitoring in liquids, outdoor environments and electronic systems. The DS18B20 sensor is enclosed inside a stainless-steel probe and connected through a 3-meter cable, allowing convenient remote temperature measurement. It communicates using the 1-Wire interface, requiring only one data line for communication with a microcontroller.

Technical Specifications:

• Sensor: DS18B20 Digital Temperature Sensor
• Temperature Range: -55°C to +125°C
• Accuracy: ±0.5°C from -10°C to +85°C
• Resolution: Programmable 9-bit to 12-bit
• Supply Voltage: 3.0V to 5.5V DC
• Communication Interface: 1-Wire

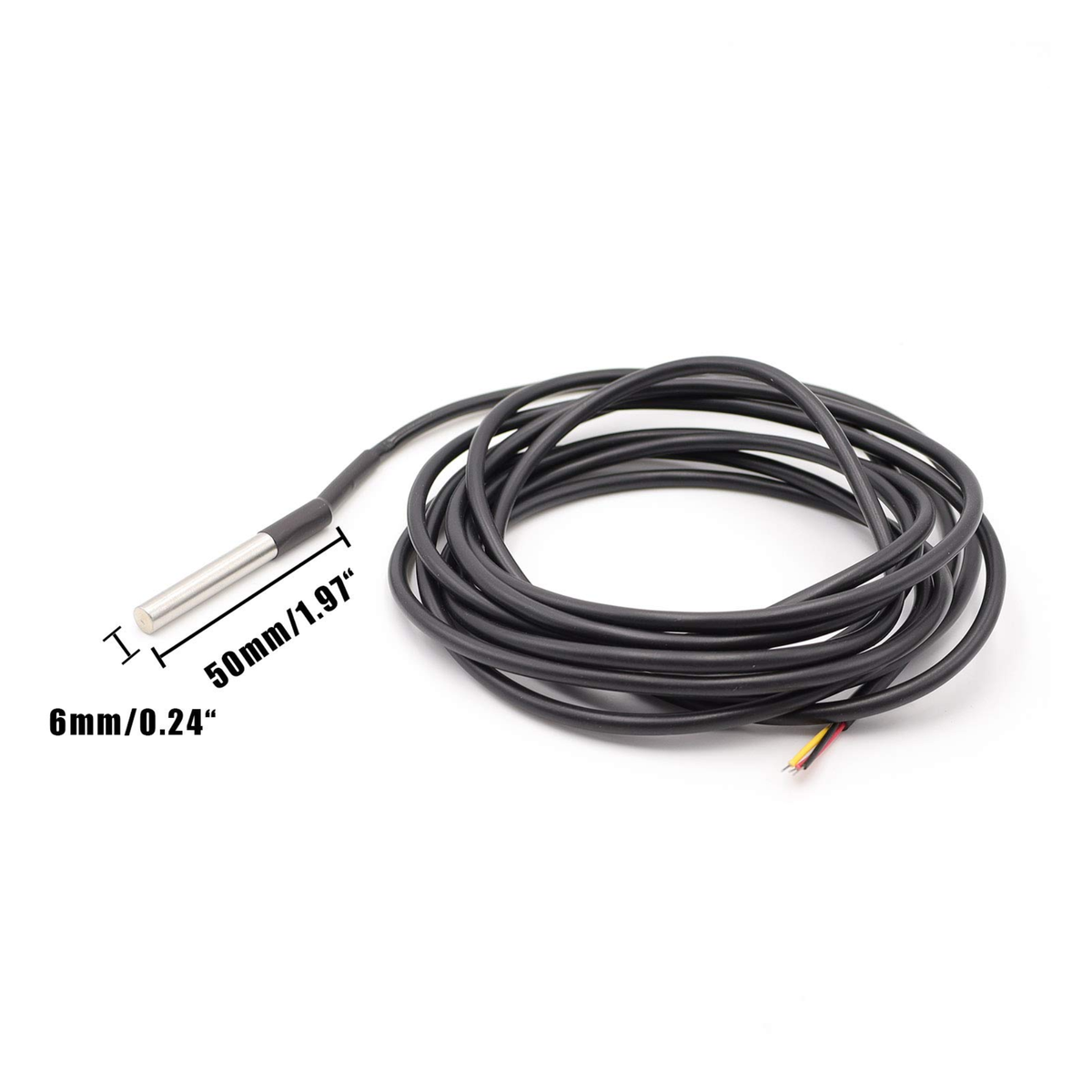

• Probe Size: Approx. 6 mm × 50 mm
• Cable Length: Approx. 3 meters
• Probe Material: Stainless Steel
• Wires: 3-Wire Connection

Features:

• Waterproof stainless-steel sensor probe
• Long 3-meter cable for remote temperature sensing
• Digital output for reliable temperature readings
• High accuracy over a wide temperature range
• Programmable measurement resolution
• Supports multiple DS18B20 sensors on one 1-Wire bus
• Easy integration with microcontrollers
• Compact and durable probe construction

Applications:

• Water temperature monitoring
• Aquarium and fish tank systems
• Temperature controllers
• HVAC systems
• Industrial temperature monitoring
• Arduino and microcontroller projects
• Weather monitoring systems
• Refrigeration and cooling systems
• Greenhouse temperature monitoring
• IoT temperature sensing projects
