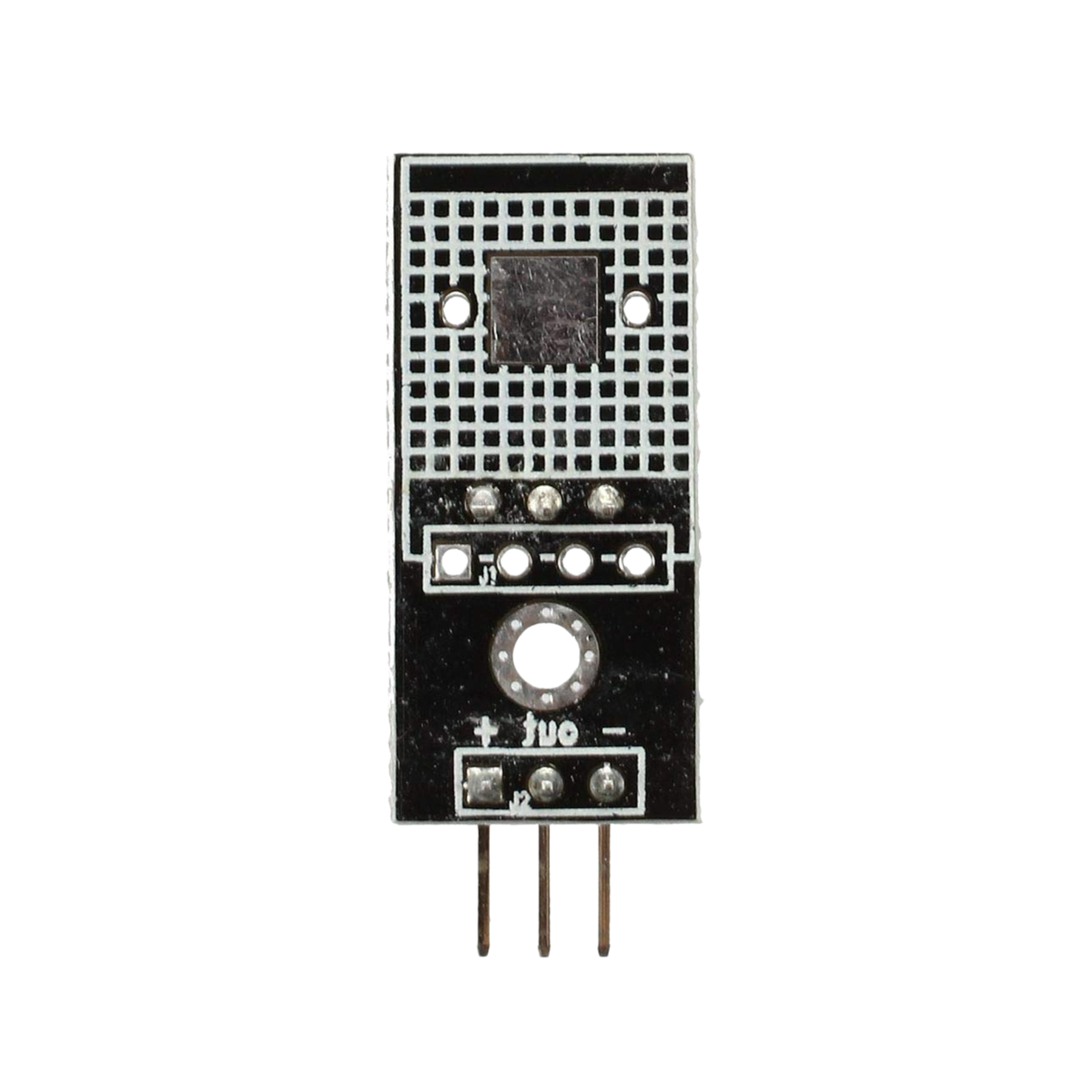

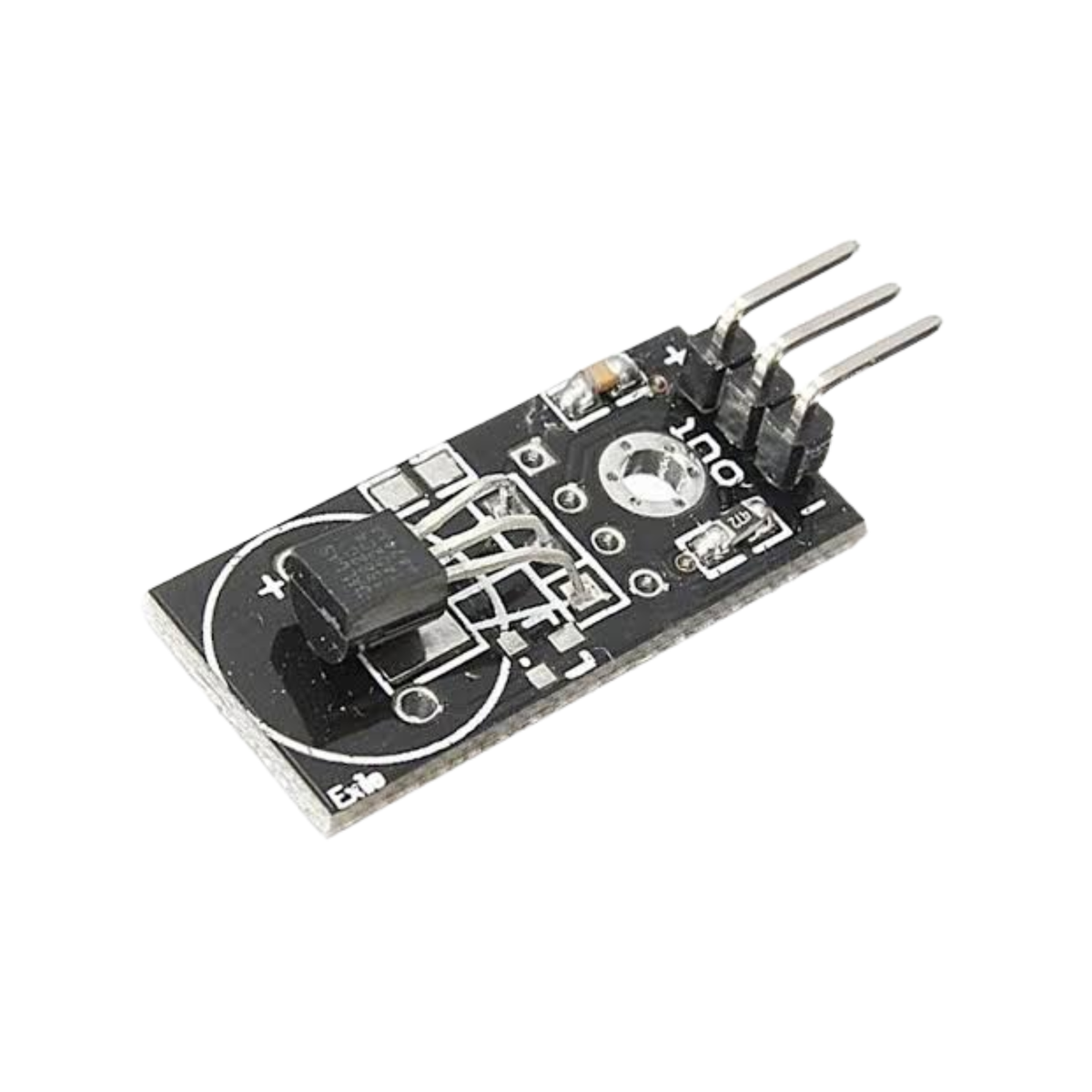

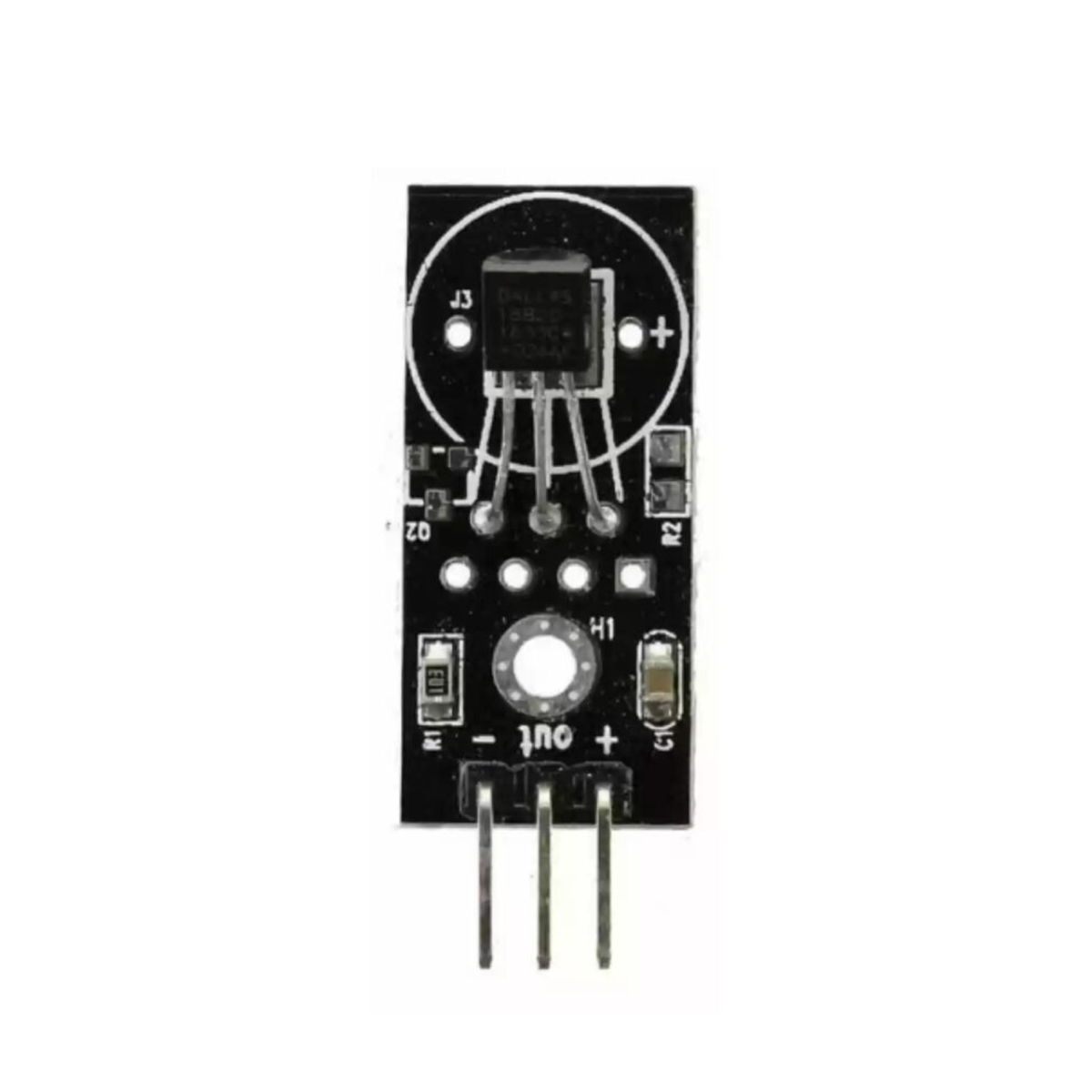

DS18B20 Temperature Sensor Module #

The DS18B20 Temperature Sensor Module # is a digital temperature sensing board based on the DS18B20 sensor. It measures temperature digitally and communicates through a 1-Wire interface. The module has a convenient 3-pin connection for power, ground and signal. It is compatible with Arduino, Raspberry Pi and many microcontroller platforms. Suitable for accurate temperature monitoring, control and data-logging projects.

Technical Specifications:

• Temperature Range: -55°C to +125°C
• Accuracy: ±0.5°C from -10°C to +85°C
• Operating Voltage: 3.0V to 5.5V
• Resolution: Programmable 9-bit to 12-bit
• Interface: 1-Wire digital communication

Features:

• Provides direct digital temperature output.
• Offers selectable 9, 10, 11 or 12-bit resolution.
• Each DS18B20 has a unique 64-bit identification code.
• Multiple sensors can operate on the same 1-Wire bus.
• Module format simplifies connection to development boards and microcontrollers.

Applications:

• Arduino and Raspberry Pi temperature monitoring.
• Home automation and smart temperature-control systems.
• HVAC and environmental monitoring equipment.
• Industrial equipment and electronic temperature protection.
• Data loggers, laboratory systems and DIY electronics projects.
