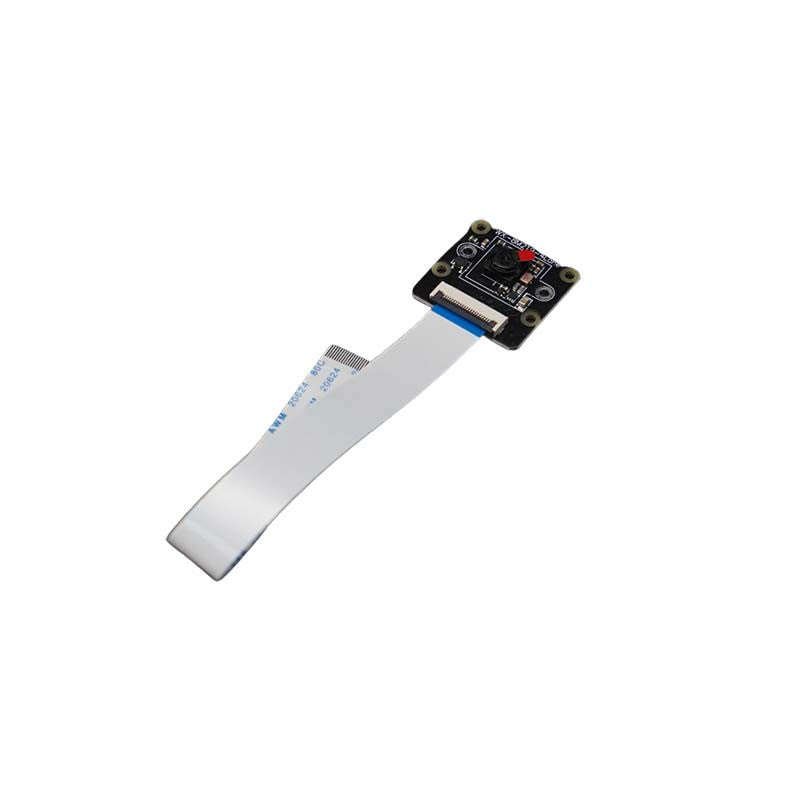

DFRobot IMX219-77 4-Lane 8MP Camera Module for Raspberry Pi 5 – SEN0630
The DFRobot IMX219-77 4-Lane 8MP Camera Module (SEN0630) is a compact, high-resolution imaging solution designed for Raspberry Pi 5 applications, robotics, industrial automation, machine vision, and embedded camera projects. Equipped with the Sony IMX219 CMOS image sensor, it delivers 8-megapixel images with a maximum resolution of 3280 × 2464 pixels, providing detailed image capture for a wide range of vision-based applications.
Featuring a 79.3° field of view, a 2.85mm fixed-focus lens, and an f/2.0 aperture, this camera module provides a balanced viewing angle with less than 1% specified lens distortion.
The MIPI CSI 4-lane interface supports high-speed camera data transmission, while the 22-pin, 0.5mm-pitch FPC connector enables integration with compatible Raspberry Pi 5 camera interfaces.
With a compact 25 × 24mm PCB design, the IMX219-77 camera module is suitable for space-constrained embedded systems, robotics, image-processing applications, security monitoring prototypes, and computer vision development.
Key Features
-
8MP Sony IMX219 Image Sensor: Captures high-resolution color images up to 3280 × 2464 pixels.
-
MIPI CSI 4-Lane Interface: Supports high-speed image data transmission for compatible embedded platforms.
-
Raspberry Pi 5 Compatibility: Designed for camera applications using the Raspberry Pi 5.
-
79.3° Field of View: Offers a versatile viewing angle for monitoring, robotics, and machine vision projects.
-
Low Lens Distortion: Less than 1% specified distortion for accurate image capture.
-
2.85mm Fixed-Focus Lens: Provides consistent imaging without mechanical focus adjustment.
-
f/2.0 Aperture: Supports image capture under varying lighting conditions.
-
1/4-Inch CMOS Sensor: Compact image sensor suitable for embedded camera applications.
-
Rolling Shutter Technology: Provides image capture for general-purpose imaging and computer vision applications.
-
22-Pin FPC Connector: Features a 0.5mm-pitch camera interface connector.
-
Compact PCB Size: Measures just 25 × 24mm for convenient integration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | DFRobot |
| Manufacturer Part Number | SEN0630 |
| Product Model | IMX219-77-4Lane |
| Product Type | Camera Module |
| Image Sensor | Sony IMX219 |
| Resolution | 3280 × 2464 Pixels |
| Camera Resolution | 8 Megapixels |
| Camera Type | Color |
| Shutter Mode | Rolling Shutter |
| Focus Mode | Fixed Focus |
| CMOS Sensor Size | 1/4 Inch |
| Aperture | f/2.0 |
| Focal Length | 2.85mm |
| Field of View | 79.3° |
| Lens Distortion | Less than 1% |
| Interface | MIPI CSI 4-Lane |
| Connector | 22-Pin FPC, 0.5mm Pitch |
| Lens Dimensions | 6.5 × 6.5mm |
| PCB Dimensions | 25 × 24mm |
| Compatible Platform | Raspberry Pi 5 |
Applications
-
Raspberry Pi 5 Camera Projects: Build compact imaging systems for embedded computing applications.
-
Robotics and Navigation: Capture visual information for robot navigation, object detection, and tracking.
-
Industrial Automation: Integrate camera-based monitoring and visual inspection into automation systems.
-
Computer Vision: Develop image recognition, classification, and AI-based vision applications using suitable software.
-
Security Monitoring: Create camera-based observation and surveillance prototypes.
-
Image Processing: Capture high-resolution images for analysis and visual processing.
-
Smart IoT Systems: Develop connected monitoring devices with Raspberry Pi 5.
-
Educational Projects: Explore embedded camera integration, Python-based imaging, and computer vision development.
Package Contents
-
IMX219-77 4-Lane 8MP Camera Module
Note: The Raspberry Pi 5 board is not included. Camera operation requires suitable software configuration and a compatible camera interface cable.
