DC to DC 3V-35V To 4V-40V Adjustable Step Up Power Module High Power Boost Converter

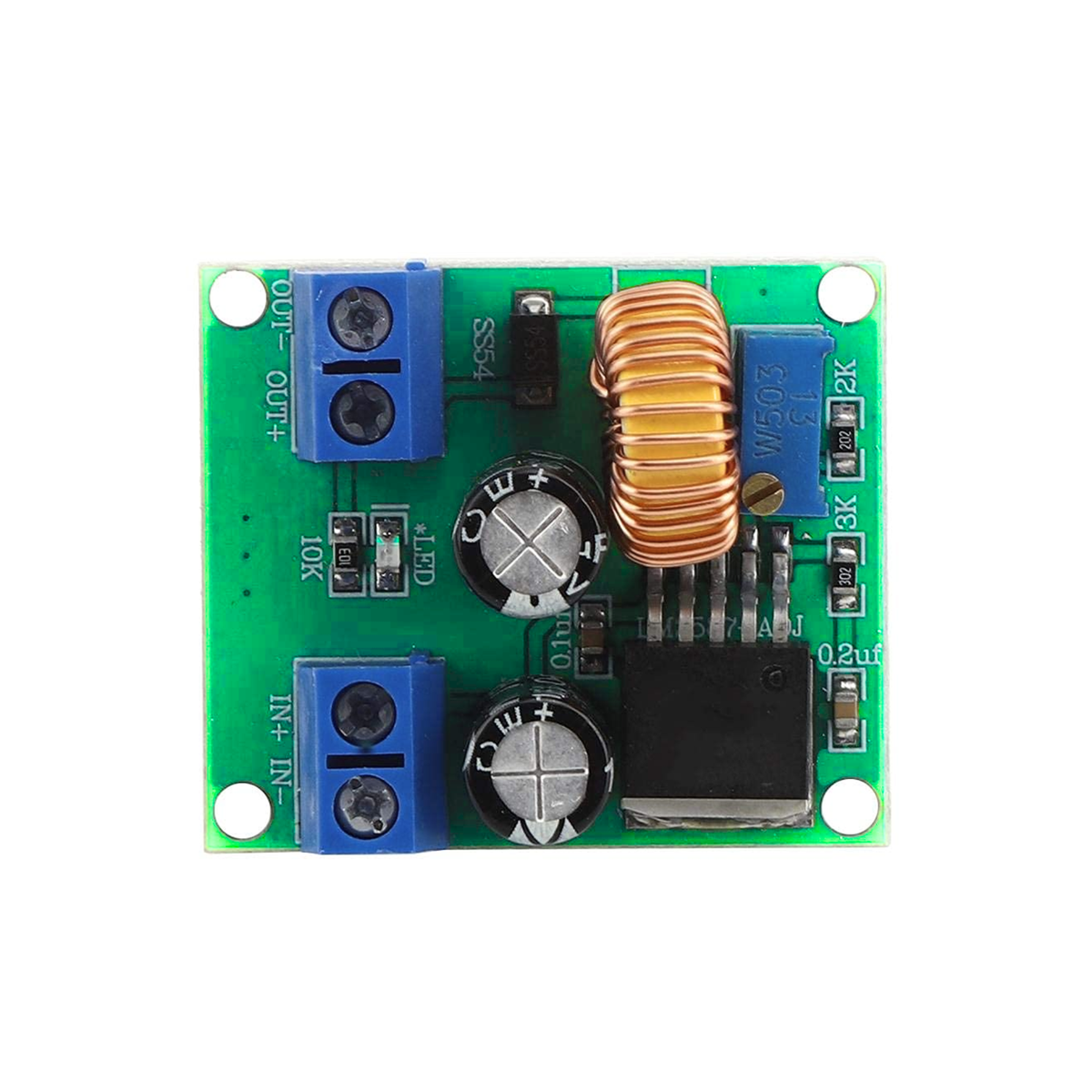

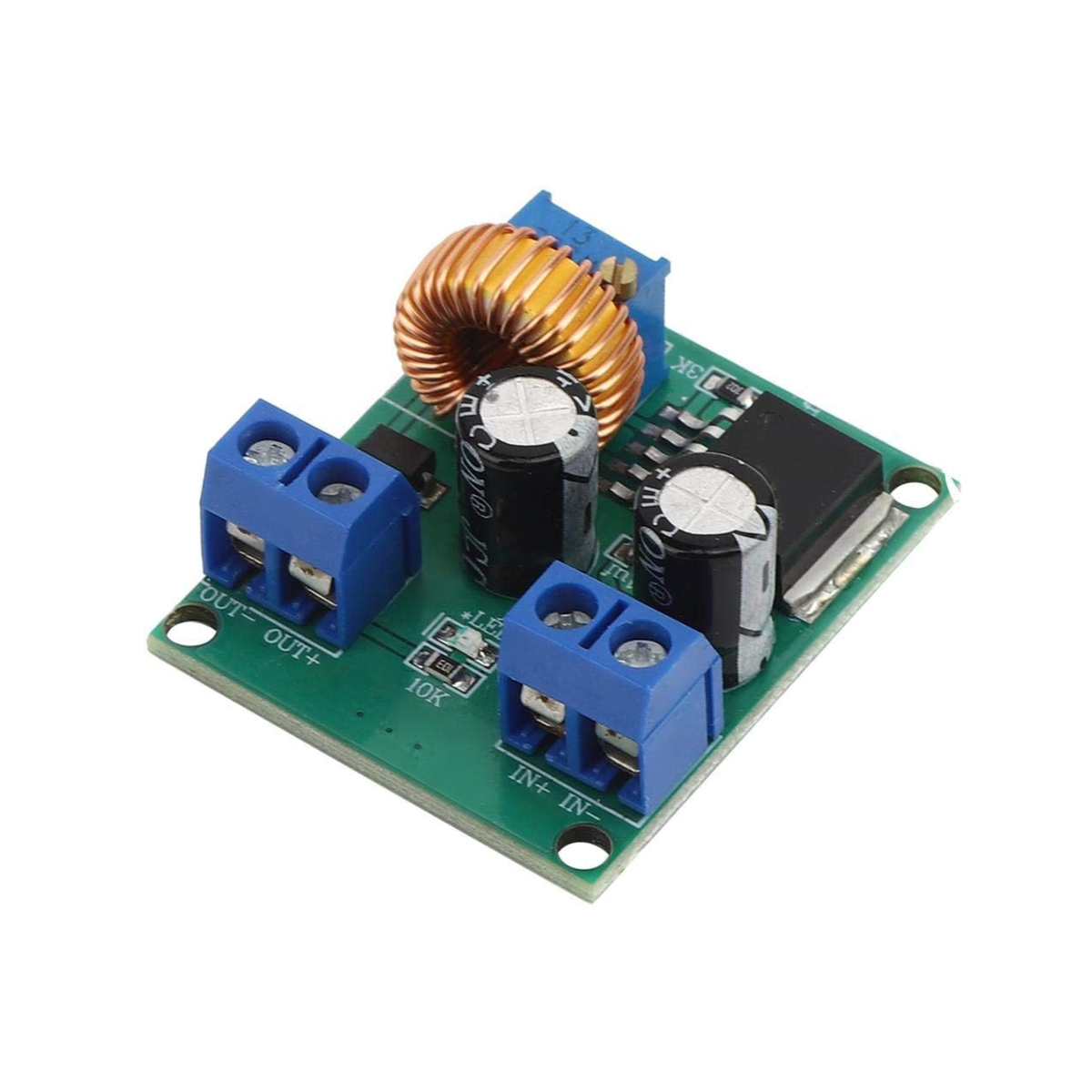

The LM2587 DC-DC 5A Boost Module is an adjustable step-up voltage converter designed to increase a lower DC input voltage to a higher regulated DC output. It is based on the LM2587 switching regulator and includes an onboard potentiometer for convenient output-voltage adjustment. The module is suitable for battery-powered circuits, DIY power supplies, embedded electronics and applications where a stable higher voltage is required from a lower-voltage source.

Technical Specifications:

• Converter Type: DC-DC Step-Up / Boost Converter
• Input Voltage: Approximately 3.5V to 30V DC
• Output Voltage: Approximately 4V to 30V adjustable
• Maximum Output Current: Up to 5A, depending on input/output voltage and cooling
• Output Adjustment: Onboard multi-turn potentiometer

Features:

• Adjustable boosted DC output voltage
• High-efficiency switching regulator design
• Large inductor for stable power conversion
• Screw terminals for simple input and output wiring
• Compact PCB suitable for embedded and DIY projects

Applications:

• Adjustable DC power supplies
• Battery-powered electronics
• LED and lighting projects.
• Robotics and embedded systems
• DIY voltage boosting and prototyping applications
