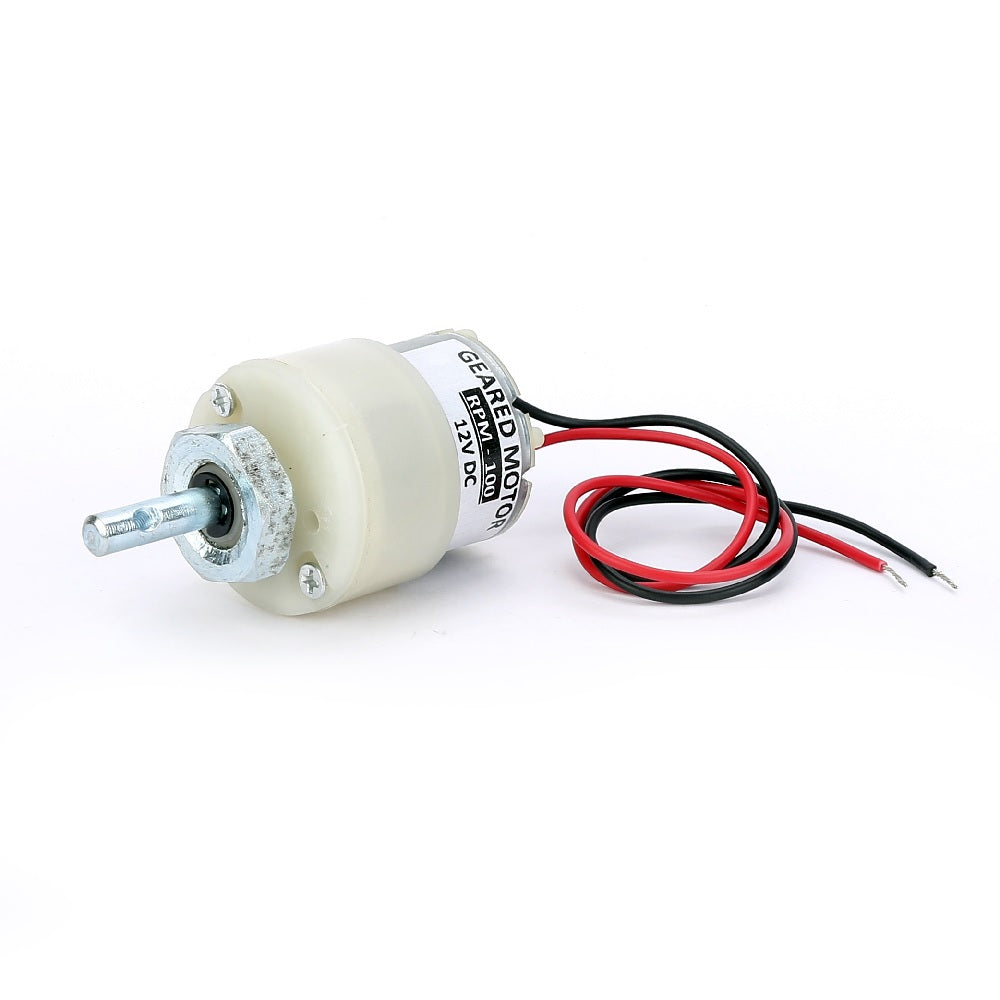

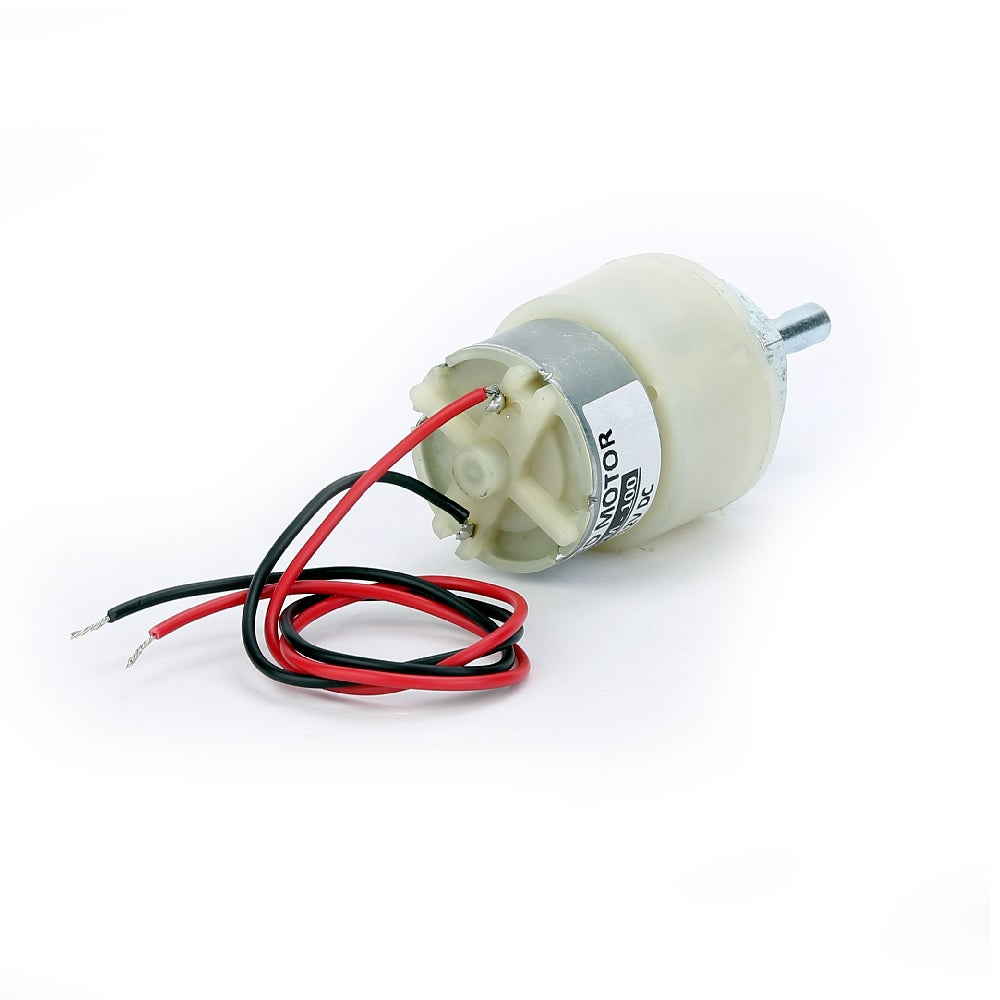

DC Geared Motors - 100RPM

SKU: VJT0226

Sale price Rs. 130.51 (excl.18% GST)
Rs. 154.00


A geared DC Motor has a gear assembly attached to the motor. The speed of the motor is counted in terms of rotations of the shaft per minute and is termed as RPM. The gear assembly helps in increasing the torque and reducing the speed. Using the correct combination of gears in a gear motor, its speed can be reduced to any desirable figure.  This concept where gears reduce the speed of the vehicle but increase its torque is known as gear reduction. This Insight will explore all the minor and major details that make the gear head and hence the working of geared DC motor.

Technical Specification:

  • RPM: 100
  • Operating Voltage: 12V DC
  • Gearbox: Attached Plastic (spur)Gearbox
  • Shaft diameter: 6mm with internal hole
  • Torque: 7 kg-cm
  • No-load current: 60 mA(Max)
  • Load current: 300 mA(Max)


  • Very easy to use and available in standard size
  • Nut and threads on the shaft to easily connect
  • Internally threaded shaft for easily connecting it to the wheel


  • Heavy-duty applications
  • Robotics and industrial applications
