Description

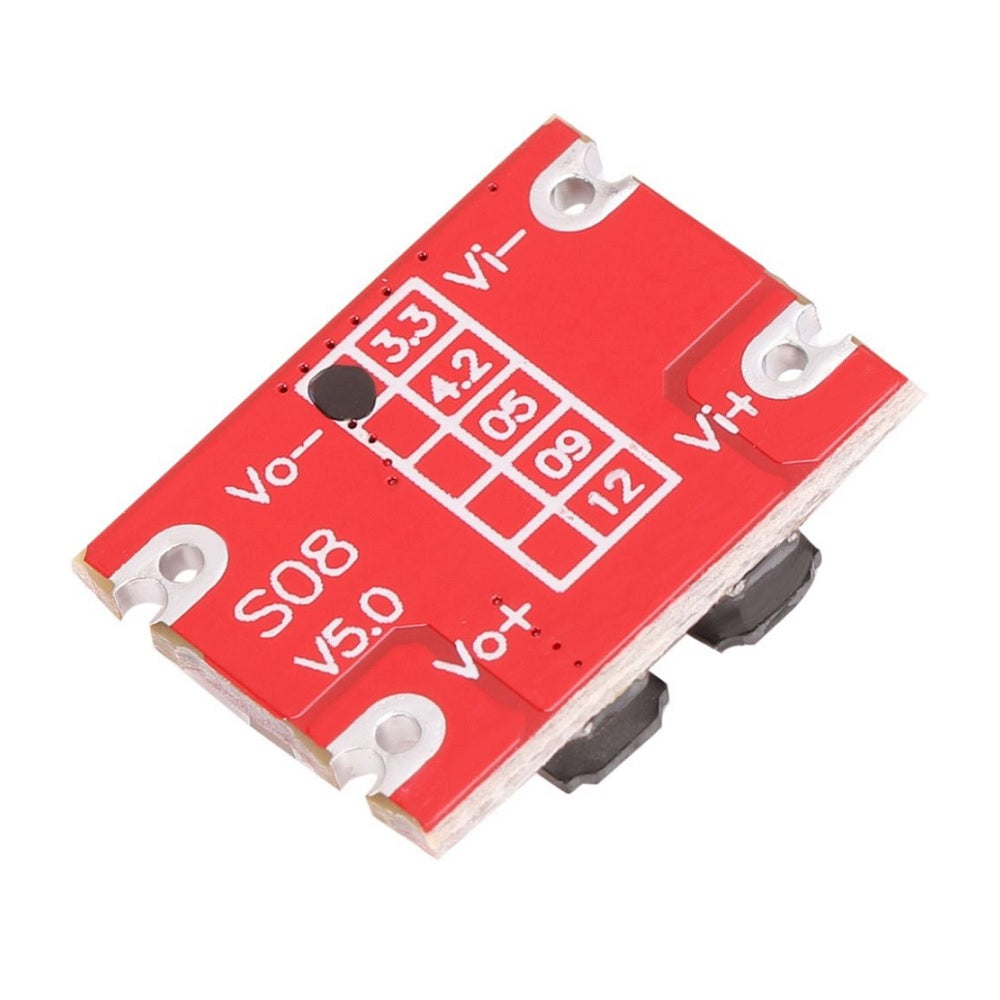

The DC-DC power module is automatically raised and lowered to support the shutdown function. This power module contains the function of automatic buck-boost and integrates with the related circuit of buck-boost converter. Its mini body is very easy for embedding.
Specification:
- Input Voltage: 2.5～15Vdc
- Output Voltage: 5V
- Output Accuracy: ±0.1V
- The Maximum Output Peak Current: 600mA
- Full-load Output Ripple: Vpp
- No-load Current: IQ 180uA
- Switch-off Function: Not Support
- Operating Temperature: -40℃ ~ +85℃
- Operating Humidity: 20% ~ 90% relative humidity, no condensation
- Storage Temperature: -40℃ ~ +125℃
- Installation Method: Chip-mounting
- With or Without Isolation: Without Isolation
- Service Life: 30000h
- Size(LxW): 17×13mm
Features:
- High stability
- Cost-effective
- All industrial-grade components
- Long working voltage drift-free
- Suitable for demanding applications, mass production
Applications:
- Communications equipment
- Digital radio
- Industrial motherboards
- Toys
- Model aircraft
- Microcontroller motherboards
- Household electrical appliances
- Automotive power supply
- Security monitoring
- Field collection
- Street lamps
