Description

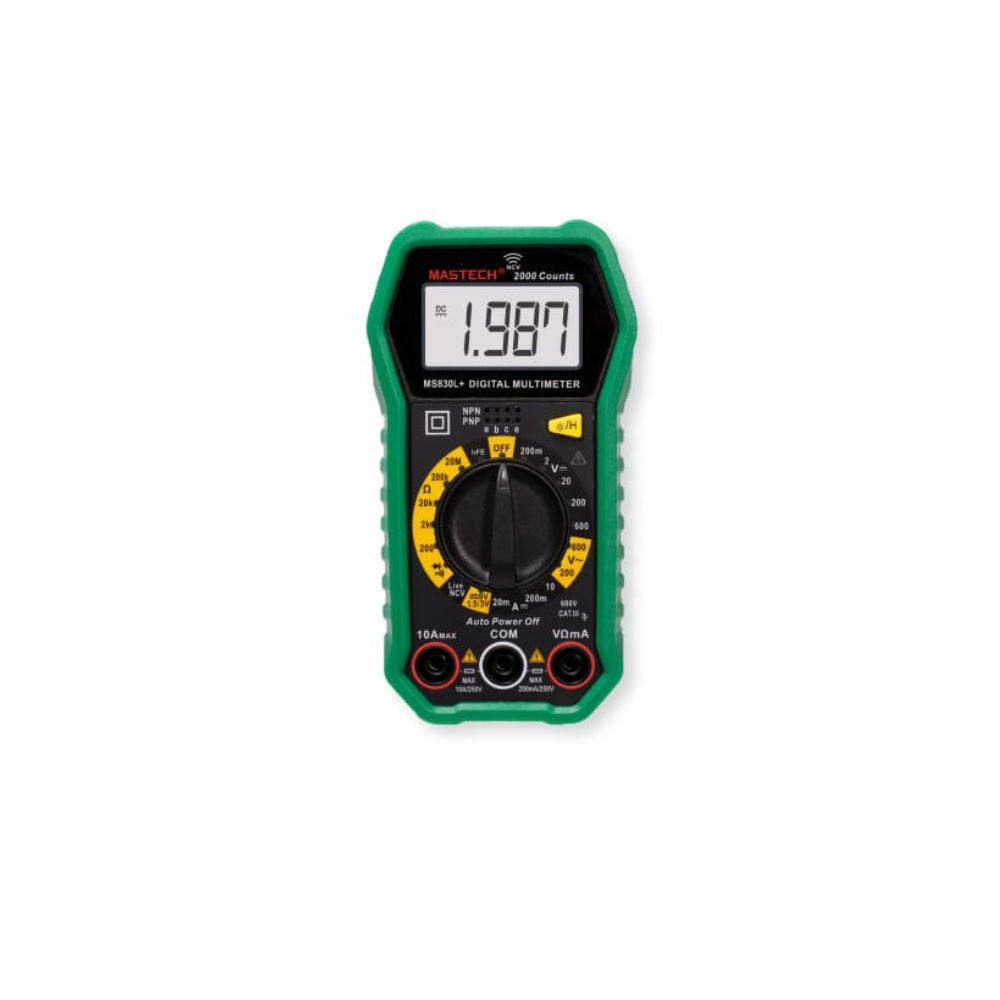

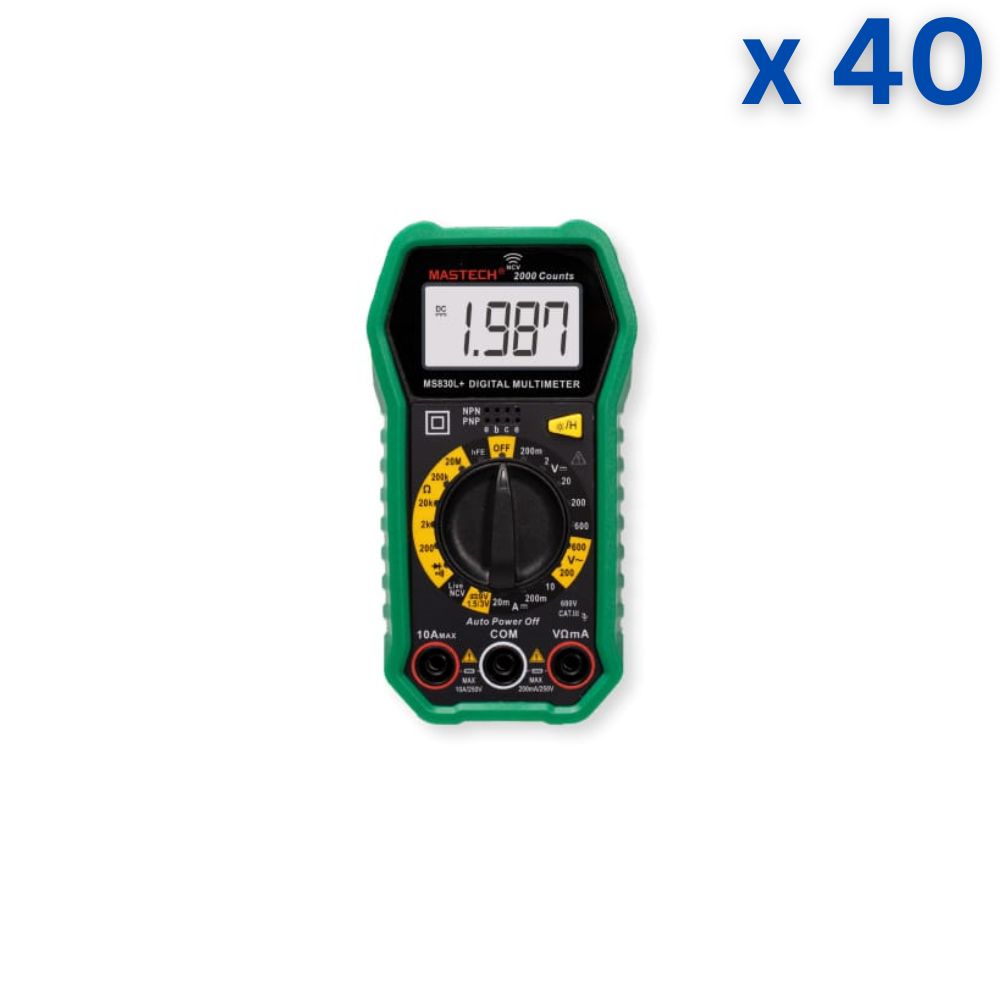

The MS830L Digital Multimeter are designed for measure DC and AC voltage, DC current, resistance, continuity, and test diodes
Technical Specification:
- Brand : Mastech
- Model : MS830L+
- Type : Digital
- Resistance : 200Ω, 2KΩ, 20KΩ, 200KΩ, 20MΩ
- Battery Test : 1.5V, 3V, 9V
- DC Voltage : 200mV, 2V (0.5%+3) | 20V, 200V (0.8%+3) | 600V (0.8% +5)
- AC Voltage : 200V, 600V (1.0%+10)
- DC Current : 200uA, 2mA, 20mA (1.0%+5), 200mA (2.0%+5), 10A (3.0%+5)
- Weight : 250 g
- Dimensions :133x71x47 mm
Features:
- Pocket Size
- Transistor Test
- Non-Contact Voltage Detection
- Max Display : 2000 Counts
- Battery : 1.5V AAA * 2
- Frequency : 400 Hz
- Data Hold
- Unit Display
- Overload Protection
- Diode Test
- Auto Power Off
Applications:
- Industrial Area
- Electrical Area
- Home Workshop
- DIY Projects
Package Includes:
- Digital Multimeter
- Pair of Probes
- User Manual
