Ceiling Mount PIR 360Deg Module - 230V

SKU: VM145

Price:
Sale price Rs. 533.0 (excl.18% GST)
Rs. 650

Description

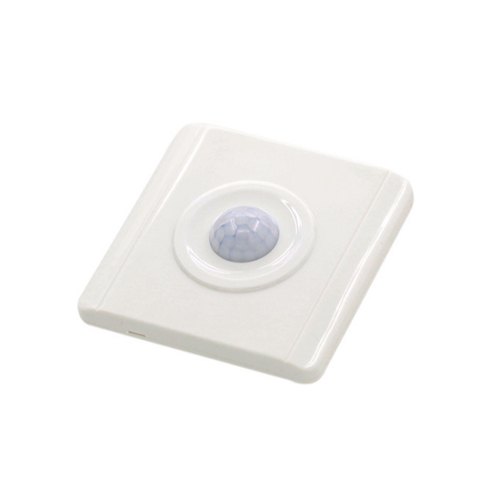

Ceiling / wall mounted PIR movement sensor in a white plastic finish, switching loads up to 1000W - ideal for incandescent, CFL, and fluorescent lamps and fans.
  • Voltage: 230V AC 50Hz
  • Finish: White polycarbonate
  • Mounting: wall or ceiling mounting.
  • IP rating: IP20 rated, recommended for indoor use.
  • Unswitched ceiling/wall mounted movement sensor.
  • Max. switching load: 2400W Tungsten Halogen or 720W Fluorescent
  • Rating: 10A Resistive 3A Discharge fluorescent & Fans
  • PIR suitable for Incandescent / CFL / Fluorescent lamps and fans.
  • A live and neutral feed is required for the PIR Sensors.
  • Timer range: 1 Minute to 16 Minutes Maximum.
  • Sensing range: 5 Metres x 120 degrees angle.
  • Dimensions: 85mm x 85mm
  • Weight: 100g
  • Operating Light Levels: User adjustable 5 lux – 1000 lux
  • Operating Time Levels: User adjustable – Min 60 Seconds Max – 15 Minutes
  • Class l electrical rated: must be earthed.
  • Electrical Connections: terminal must have live and neutral feed
