Description

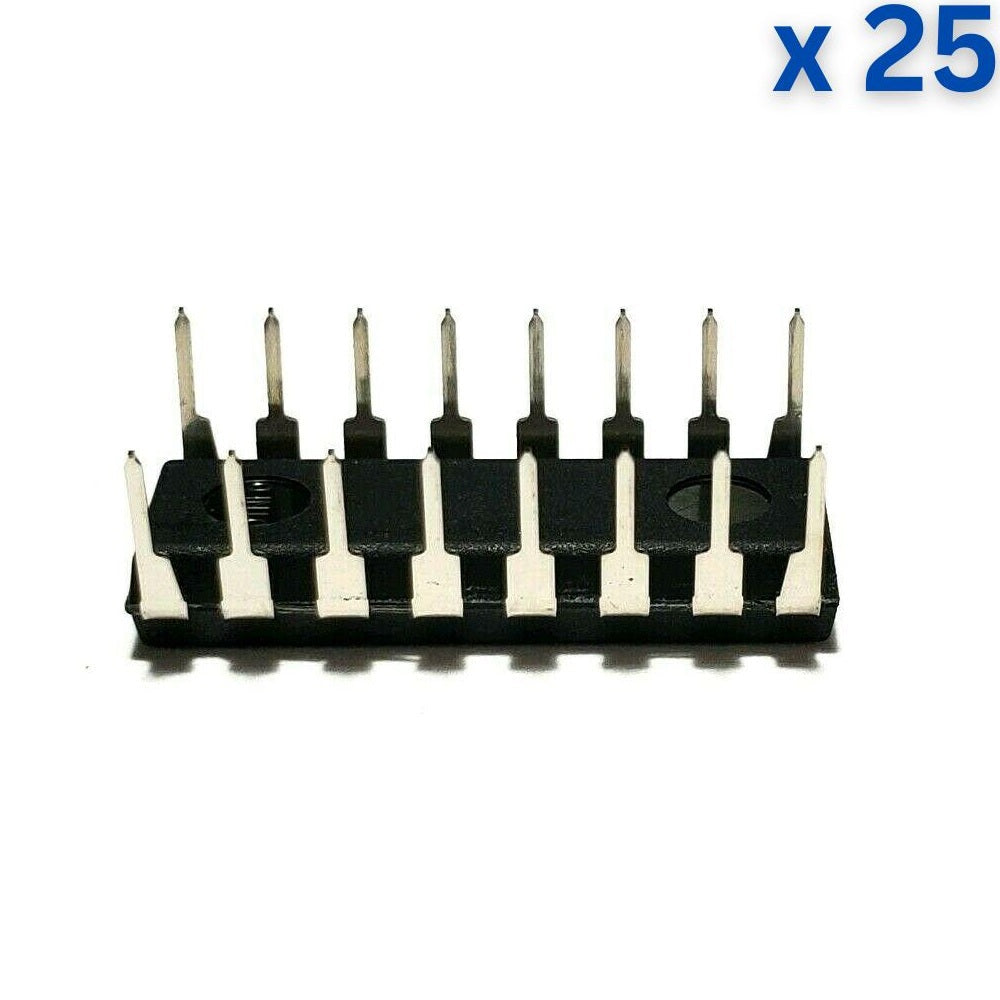

The CD4585 belongs to the 4000 IC series. The CD4585 is a 4-bit magnitude comparator that offers the functionality of comparing two binary numbers and determining whether a relationship of less than, greater than, or equality exists between the two binary numbers.
Technical Specification:
- DC Supply Voltage (VDD): −0.5V to +18V
- Input Voltage (VIN): −0.5V to VDD + 0.5V
- Storage Temperature Range (TS): −65°C to +150°C
- Power Dissipation (PD) Dual-In-Line: 700 mW
- Lead Temperature (TL): 260°C
Features:
- Hex Schmitt Trigger with High Noise Immunity
- Diode Protection on Inputs
- Standard Pin Configuration
- Wide Operating Voltage
- Low Power CMOS
Applications:
- Servo Motor Controls
- Process Controllers
