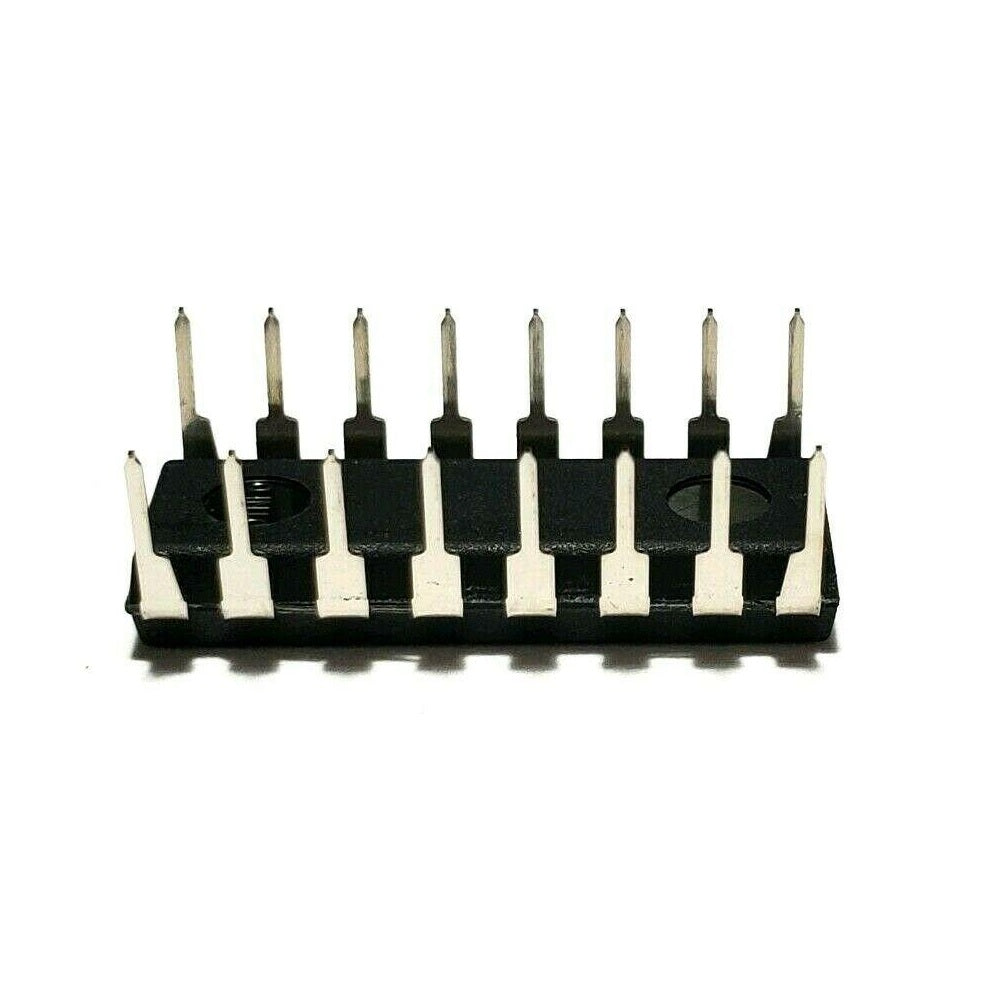

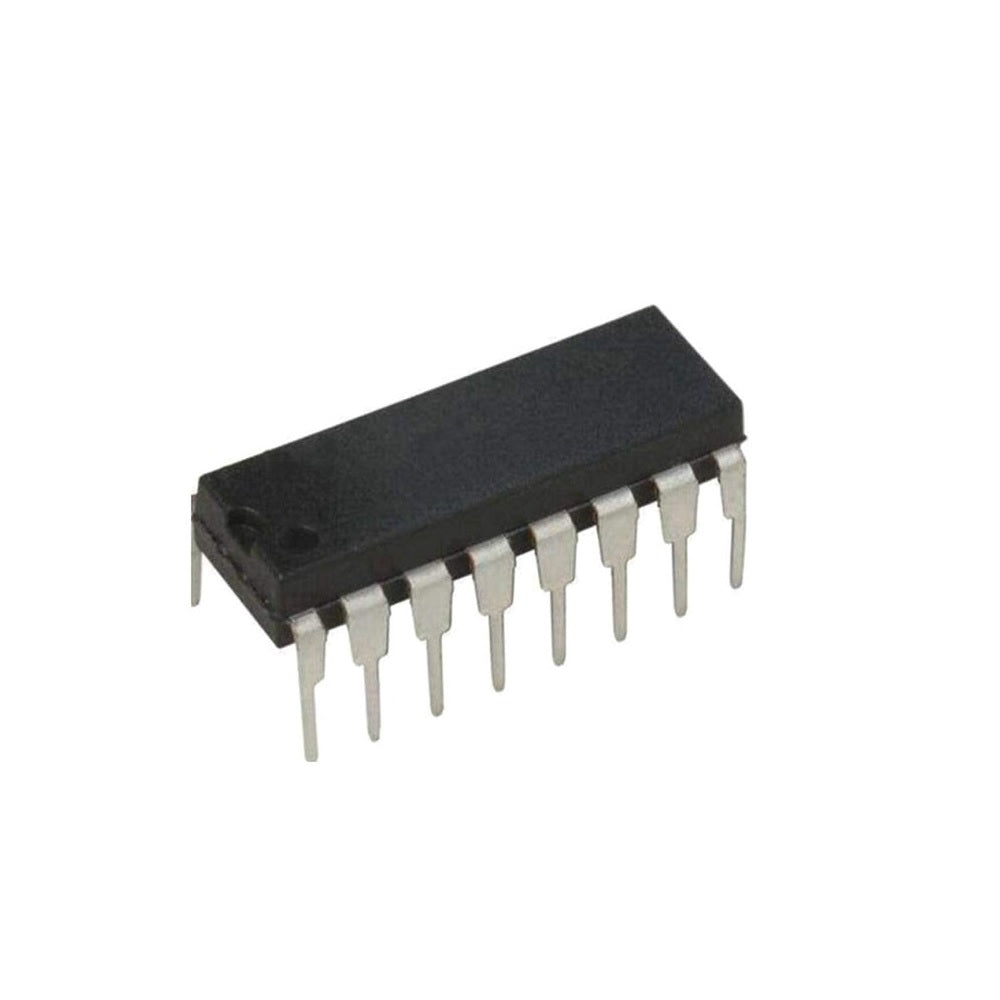

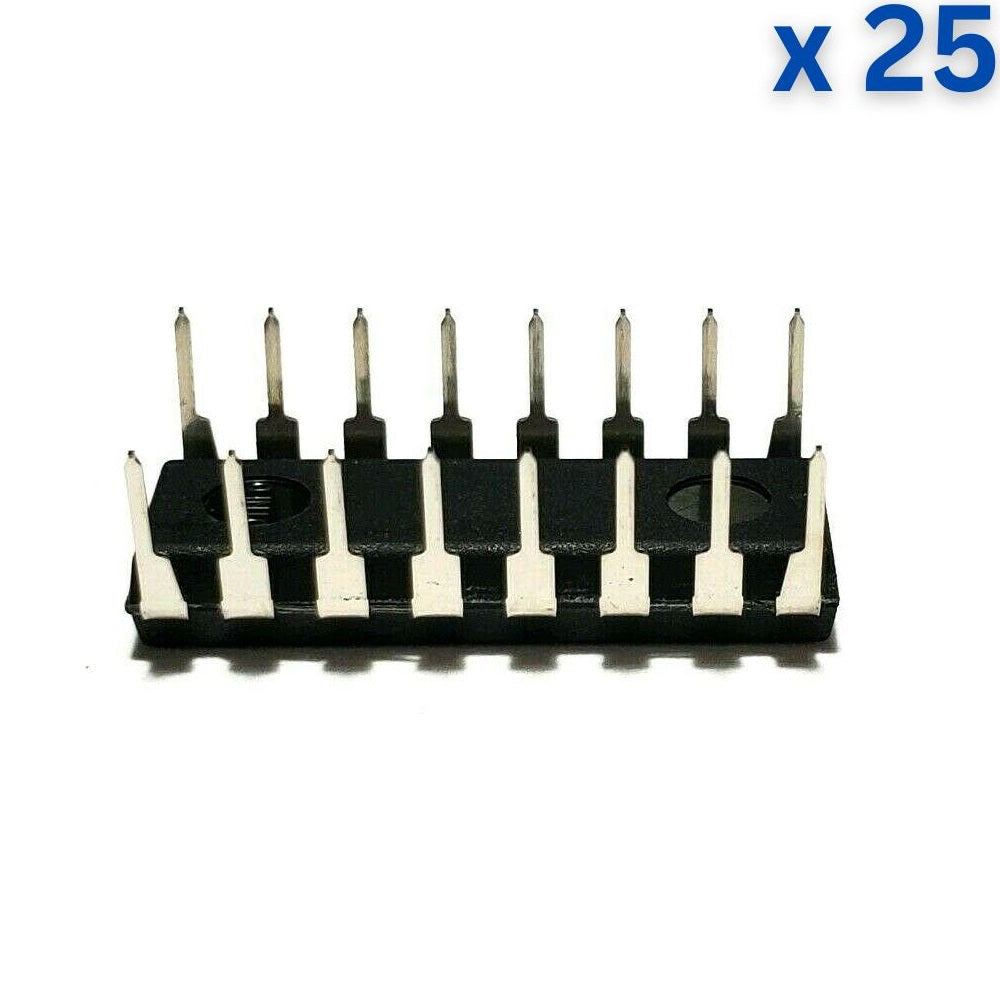

CD4556 Dual 1-of-4 Decoder/Demultiplexer IC DIP-16 Package

CD4556 is a part of the CD4000 IC series. CD4556 are dual one-of-four decoders/demultiplexers.

Technical Specification:

• No. of Outputs: 4
• Supply Voltage Range: 3V to 18V
• Logic Case Style: DIP
• No. of Pins: 16
• Output Current Max: 6.8mA
• Package / Case: DIP
• Supply Voltage Min: 3V to 18V

Features:

• Dual One-of-Four Decoders/Demultiplexers
• Expandable with Multiple Packages
• High Noise Immunity
• Wide Operating Voltage
• CD4556 Outputs Low on Select

Applications:

• Decoding
• Code Conversion
• Demultiplexing (Using Enable Input as a Data Input
• Memory Chip-Enable Selection
• Function Selection
