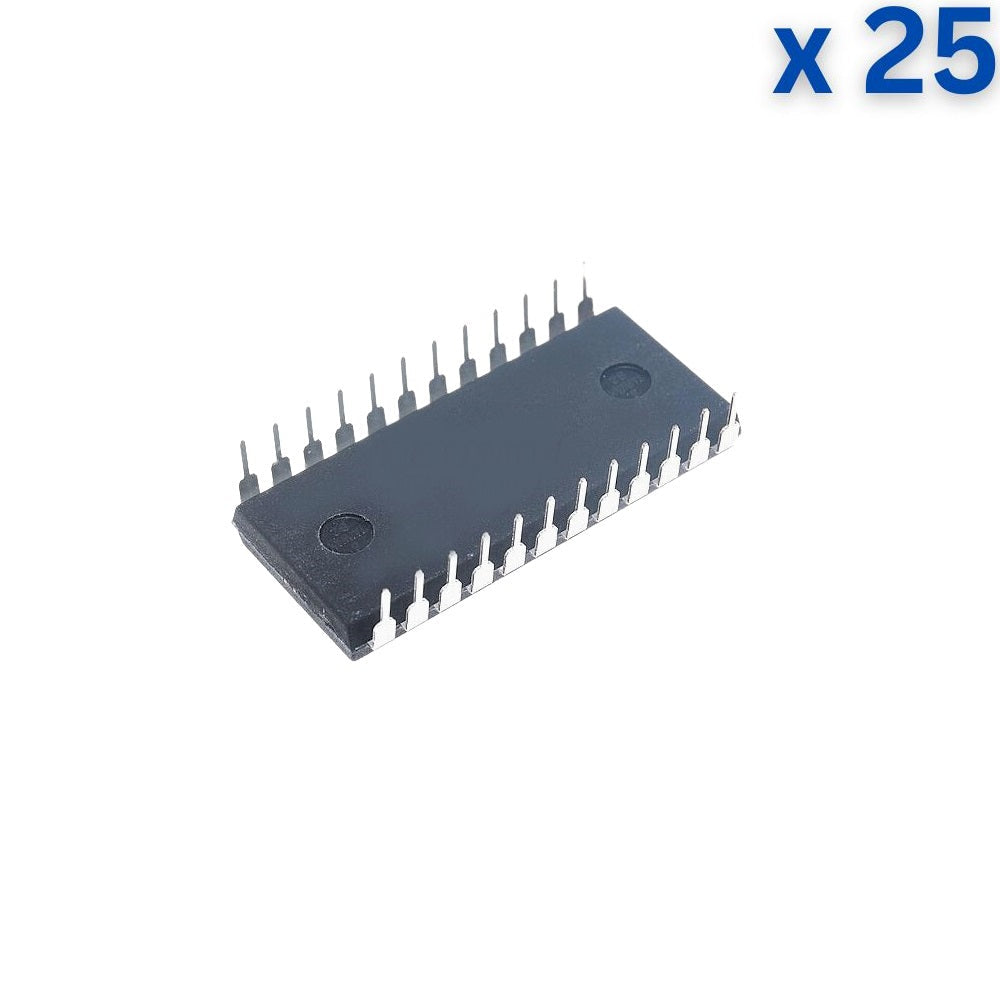

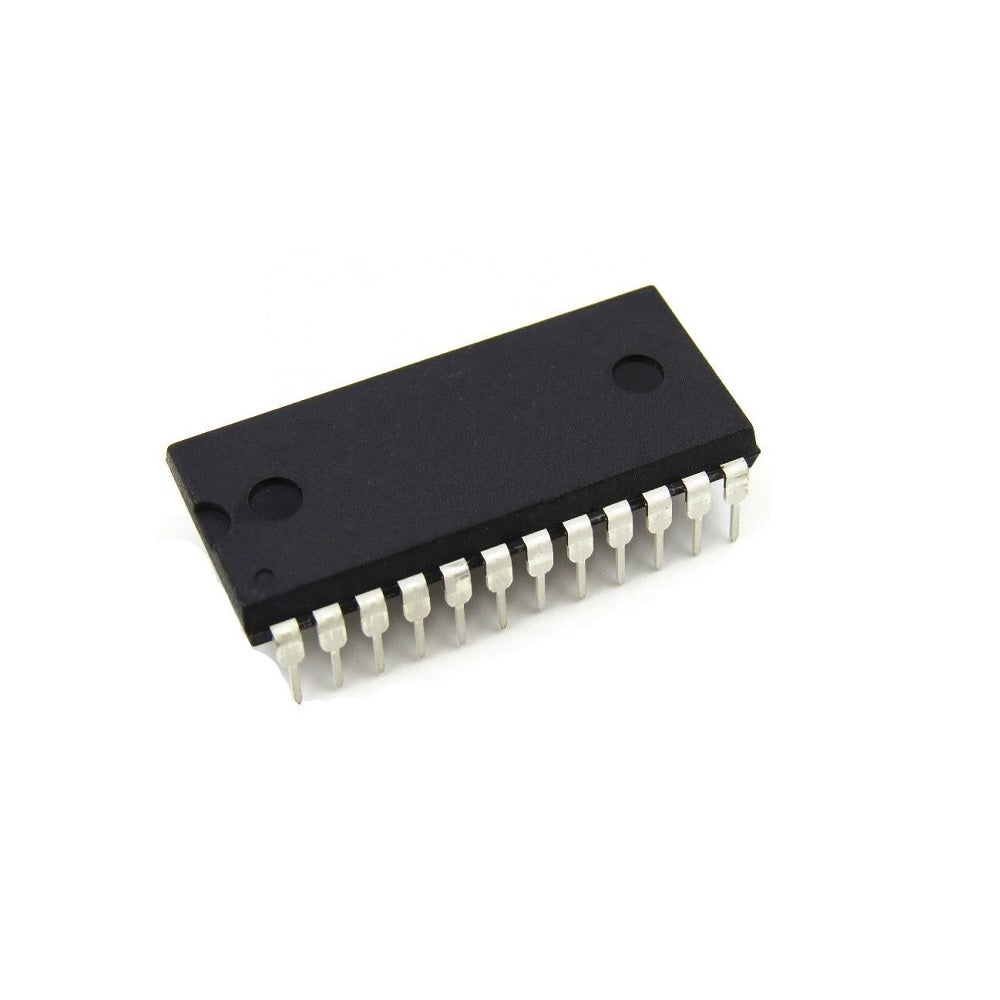

CD4514 1 of 16 Decoder/Demultiplexer with Input Latches IC DIP-24 Package

SKU: 0010169

Quantity: 1 Pc
Sale price Rs. 105.93 (excl.18% GST)
Rs. 125.00


The CD4514 and CD4515 are 4-to-16 line decoders with latched inputs implemented with complementary MOS (CMOS) circuits constructed with N- and P-channel enhancement mode transistors.

Technical Specification:

  • DC Supply Voltage Range, (VDD): -0.5V to +20V
  • Input Voltage Range, All Inputs: -0.5V to VDD +0.5V
  • DC Input Current, Any One Input: 10mA
  • Storage Temperature Range: -65ºC to +150ºC


  • 4-bit Strobed Latch with 4-to-16 Line Decoder
  • Inhibit Control
  • Inhibit=1 Sets all Outputs to 0
  • DC Supply Voltage up to 20V
  • Maximum Input Current of 1 µA
  • Equivalent to MC14514


  • Digital Multiplexing
  • Address Decoding
  • Hexadecimal/BCD Decoding
  • Program-counter Decoding
  • Control Decoder
