Description

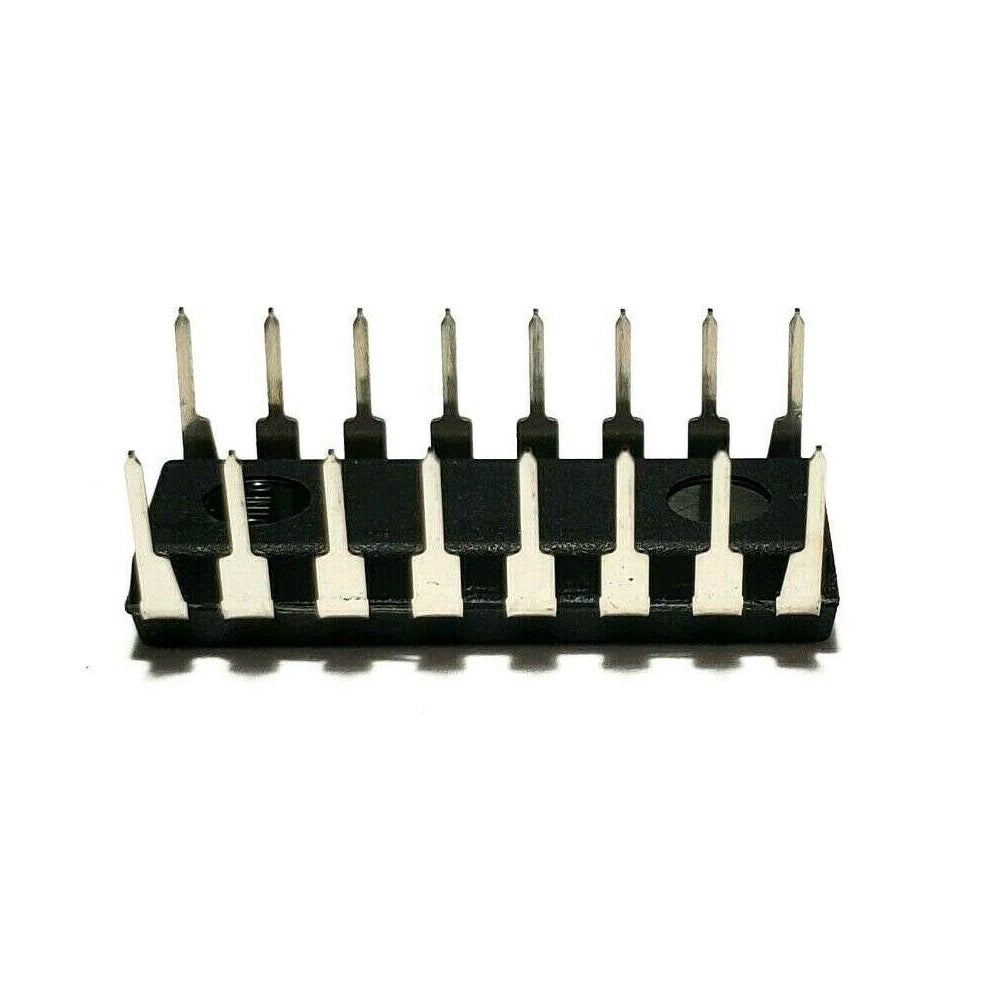

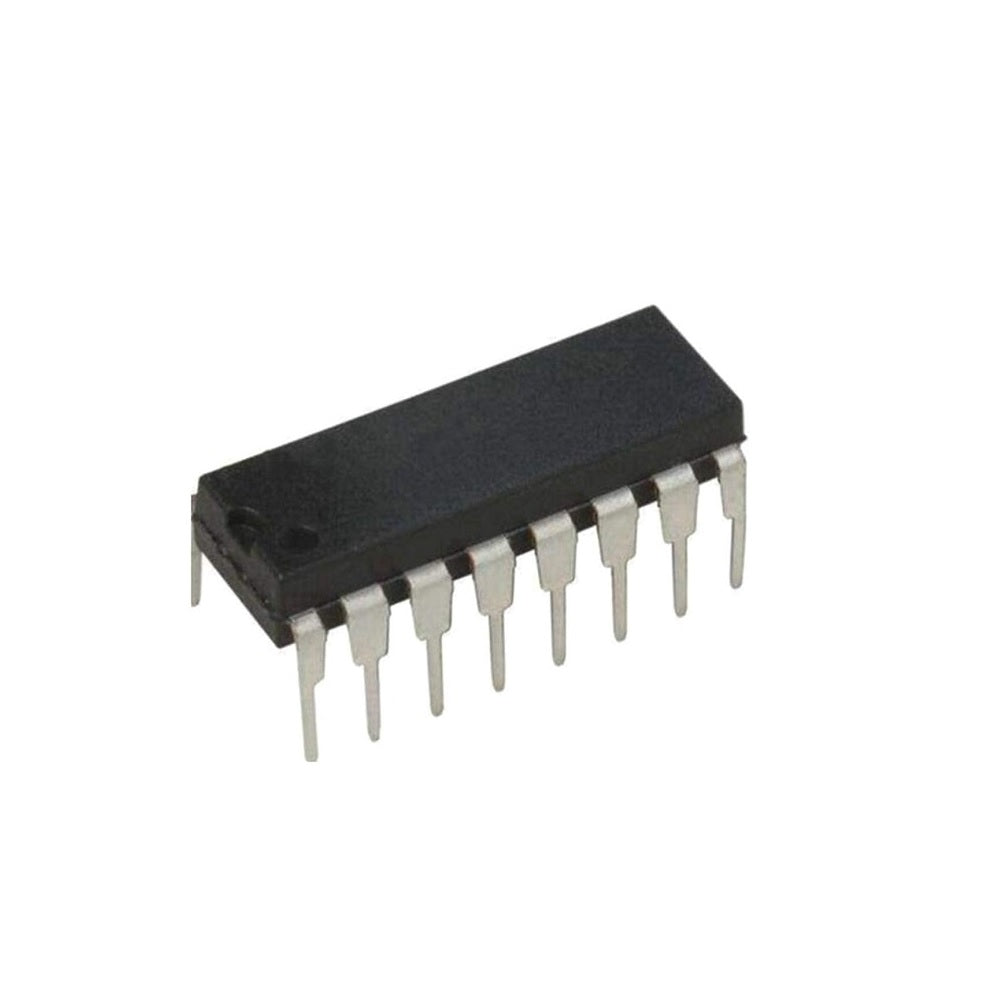

CD 4511 is a BCD to 7-segment latch decoder driver IC formed with CMOS logic and NPN bipolar transistor output devices on an immovable structure. This IC is used where we need to driving common-cathode displays like 7-segment display, low voltage fluorescent display, and incandescent display.
Technical Specification:
- DC Supply Voltage Range, (VDD): -0.5V to +20V
- Input Voltage Range, All Inputs: -0.5V to VDD +0.5V
- DC Input Current, Any One Input: ±10mA
- Storage Temperature Range: -65ºC to +150 ºC
Features:
- Contains a 4-bit Storage Latch, BCD-to-Seven Segment Decoder and Output Drive
- Suitable for LED, Incandescent, Fluorescent or LCD Readouts
- Blanking Input
- Lamp Test Provision
- Low Power CMOS
Applications:
- Display driver
- Computer/calculator display driver
- Cockpit display driver
- Various clock
